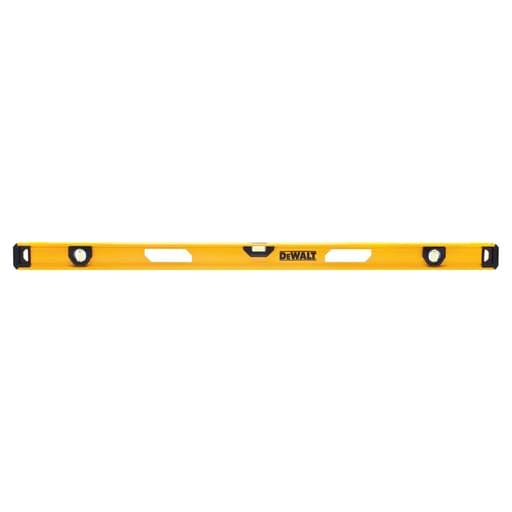

DeWalt 48 in Premium I-Beam Level

A jobsite-friendly 48-inch level that gets most of the fundamentals right

I spend a lot of time chasing straight lines—framing, setting cabinets, checking headers, and occasionally riding a piece of conduit up a block wall. A 48-inch level is my daily driver, and this 48-inch DeWalt I‑beam has been in my rotation long enough to see rough framing, finish work, and more than a few rides in the back of the truck. It’s not flashy, but it aims squarely at the things that matter: straightness, durable vials, and a face that sits flat every time.

Build and design

The I‑beam profile keeps weight down without feeling flimsy. At around 3.4 pounds, it’s easy to carry all day, and the integrated handle is actually placed where your hand naturally wants to be. The main working face is precision-machined and flat; I check with a straightedge when new and after the first few months, and this one remained true out of the box and post-break‑in.

Over-molded end caps take edge hits well. I’ve dropped it off a step ladder onto subfloor and bumped studs without deforming the frame, and the caps have spared the aluminum from mushrooming. The cutouts for the three hang holes are nice for storage in the shop or clipping a carabiner on a scissor lift, though they do collect a bit of drywall dust. The V‑groove on the top edge is handy for sitting on conduit and handrail; it registers positively and reduces side-to-side rock when you don’t have a free hand to baby it.

Notably, it’s not magnetic. If you’re frequently on steel studs, welded plate, or ductwork, you’ll miss magnets more than you think. For wood framing, concrete, and general layout, the non-magnetic base is a non-issue.

Vials and accuracy

The three-vial layout covers your level and plumb checks. DeWalt uses solid block vials here, which I prefer over traditional ring-style vials for two reasons: they’re better at shrugging off vibration and they tend to be more consistent across temperature swings. The factory rating is ±0.0005 inch per inch (roughly 0.5 mm per meter). In practice, that’s tight enough for cabinet runs, door installs, and long layout lines.

I do a simple field verification on every new level:

• The flip test for level: place it on a known flat surface, note bubble position, rotate 180 degrees in the same location. The bubble should read identically.
• The plumb flip: check a true jamb or a plumbed 2x, then flip the level end-for-end.

This one passed those out of the box. After several months riding in a gang box and bouncing around site to site, it remained within what I’d expect for a pro-grade I‑beam. I also like to cross-check against a digital level on stair stringers; readings matched within the digital’s 0.1° resolution.

A quick note on expectations: fixed vials like these don’t have user-adjustable calibration. If a level gets knocked out, you’re relying on the warranty rather than an on-site tweak. That’s not unique to this model, but it’s worth remembering if you work around a lot of heavy steel.

On-site usability

The working face is well-machined and grips clean lumber without skating. On painted trim and melamine, it doesn’t scratch or snag. The V‑groove does its job on 3/4-inch conduit and standard railing well enough that I didn’t miss magnets for those tasks. Sightlines through the vials are clear, and the bubble contrast is good indoors and out; I can split the lines in dim basements without hunting around.

Length-wise, 48 inches is the sweet spot for most door and window work, setting long runs of tile, and checking large cabinet boxes. On long LVLs and sill plates, I’d still pull a string or use a longer straightedge, but as a daily carpenter’s length, this covers 90% of my checks.

The handle cutout is comfortable and doesn’t flex the frame in a way that changes the reading—some lighter I‑beams can be sensitive to grip pressure, but that wasn’t an issue here. The end caps are removable if you need to butt into a corner to check full-length plumb, though I rarely found that necessary.

Durability and longevity

Aluminum I‑beams are always a trade-off: lighter and more affordable than box-beams, but not as resistant to twisting forces if you use them as a straightedge pry bar (don’t). Used as a measuring tool, this one has held up. The face remained smooth, the body didn’t pick up dents that telegraph into readings, and the vial housings resisted fogging and micro-bubbling after being stored in a cold trailer overnight and brought into a warm house.

Still, levels live or die by their vials. I make it a habit to run a flip test weekly and any time the tool takes a spill. If you spot drift, DeWalt’s lifetime limited warranty on this model is there, but like most warranties, it covers defects—not abuse. Keep it in a sleeve or hang it rather than tossing it loose with clamps and hammers, and you’ll get longer, more reliable service.

What it’s not

• Not magnetic. If you often work on metal, consider pairing it with a dedicated magnetic torpedo or a magnetic 24-inch for steel-specific tasks.
• Not a box-beam. If you’re routinely on commercial sites where tools get thrown into lifts and used as impromptu shims, a heavier box-beam will tolerate abuse better.
• Not micro-adjustable. The vials are fixed; you can’t recalibrate on the fly.

None of these are deal-breakers for general carpentry or residential remodeling, but they’re real constraints depending on your workflow.

Practical tips to get more from it

• Run a flip test when you unbox it and mark a discreet reference on the body. If readings change later, you’ll know.
• Store it vertically on a wall or on dedicated hooks using the hang holes; horizontal storage under weight can introduce bow over time.
• Wipe the machined face after cutting cement board or grinding; abrasive dust is the enemy of flat, accurate faces.
• Use the V‑groove on pipe, but pair it with a strap or a small clamp if you need hands-free alignment—no magnets here.

Who it’s for

• Framing and finish carpenters who want a light, accurate 48-inch with good vial clarity.
• Remodelers who move between rough and trim and need a single level that bridges both.
• DIYers who want pro-level accuracy without the higher cost and weight of a box-beam.

If your work is mostly metal stud, sheet metal, or commercial MEP, look for a magnetic model instead. If your crew is tough on tools, consider stepping up to a box-beam and budgeting the extra weight.

The bottom line

This 48-inch DeWalt I‑beam does the core things a level should do: it stays straight, the vials are durable and readable, and the machined face registers cleanly on the work. The V‑groove adds genuine utility on rounded stock, and the over-molded end caps protect the frame from the usual jobsite scrapes. The lack of magnets is the only real miss for certain trades, but in wood-heavy work it’s not a liability. Accuracy is on spec and consistent in real use, provided you treat it like the measuring tool it is.

Recommendation: I recommend it for carpenters, remodelers, and serious DIYers who prioritize a light, accurate 48-inch level with solid vial durability and a jobsite-ready build. If you need magnets or box-beam-level ruggedness, there are better fits, but for most day-to-day layout and alignment, this I‑beam earns its spot on the wall.
