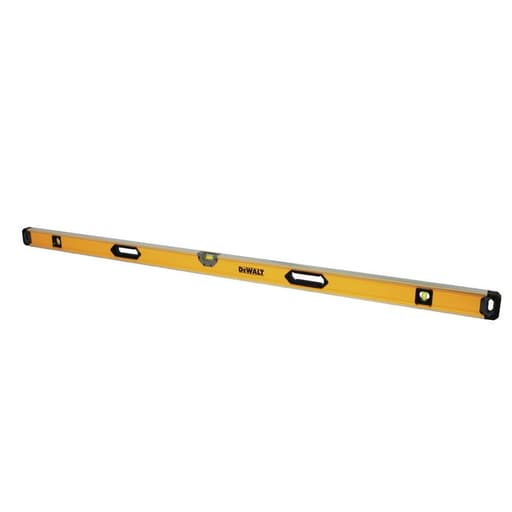

DeWalt 1800 mm / 72 in Box Beam Level

Why I reached for a 72-inch level

There are jobs where a torpedo or 24-inch level won’t cut it—setting doors, plumbing long stud runs, installing tall cabinets, or checking deck posts. That’s where a full-length, 72-inch box-beam level earns its spot on the truck. I’ve been using DeWalt’s 72-inch box-beam level for framing and finish work, and it hits most of the marks I expect from a pro-grade stick: rigidity, repeatable accuracy, and readable vials that don’t slow me down.

Build and design

This is a box‑beam aluminum level with a noticeably rigid profile. At this length, torsional stiffness matters; a flimsy frame lets you flex accuracy right out of the tool with a little hand pressure. With this one, I can press it across bowed studs or slight humps in drywall without seeing the bubble shift from the tool flexing. The cross section feels stout without being bulky, and at around 5.1 pounds it’s manageable to carry around a jobsite one-handed.

The ends are protected with metal and over‑molded caps. That combination has done a good job shrugging off daily knocks—dragging it across subfloor, leaning it into corners, the occasional bump into concrete. The caps have kept the body from mushrooming, and the reference edges remain straight and unmarred. I haven’t needed to baby it.

A practical touch is the integrated carry handle. On a 6‑footer, that matters more than it sounds. It’s not just about carrying—being able to reposition the level mid-task without pinching the body or smudging a line is helpful, especially on finish surfaces. It also provides a natural balance point that makes the length feel less unwieldy on ladders.

One design detail I appreciate is the bridged center vial. The die‑cast center vial holder stiffens the middle of the level and keeps the vial locked where it should be, but the “bridge” creates a continuous, unbroken marking edge. On older center-mount designs, the vial housing interrupts your scribe, forcing you to leapfrog around it. With this, I can lay out long lines for ledger boards or cabinet runs straight through the center. Small thing, big impact on layout efficiency.

Vials and readability

This level uses block vials, specified at ±0.0005 inches per inch (0.5 mm/m). In practical terms, that’s up to ±0.036 inches over the full 72 inches. That spec is in the pro range and, more importantly, my field checks match it. I do two simple tests with any new level:

• Flip test: Set the level on a flat surface, mark the bubble position, then flip it end-for-end. If the bubble reads the same, the tool is true. This one passed repeatedly.
• Wall plumb check: Mark a line using the level, rotate it 180 degrees on the same line, and confirm the bubble centers identically. Again, consistent results.

The center vial is magnified, and the lens actually helps in low contrast or at awkward angles. It’s not a gimmick; it makes the bubble edges easier to reference quickly, which speeds up repetitive tasks like lining up hinge jambs or setting stair skirt boards. Side vials for plumb are standard block style, crisp and easy to read.

Parallax is minimal thanks to the block vial geometry. From a few feet away, I can still judge level without crouching or craning my neck, which matters when you’re trying to dial in a door threshold while talking to a client.

On-site performance

• Framing: On stud walls, it’s rigid enough not to telegraph minor waviness in the sheet goods underneath. I can span two studs to find the true plane, which helps me decide whether to shave a crown or shim the next stud.
• Doors and windows: Six feet of reference makes plumbing jambs straightforward. The long footprint reduces the chance of a local bump fooling the bubble. I also like using the continuous edge to scribe reveals along tall casings.
• Cabinets and built-ins: The length lets me check multiple boxes in a run without moving the tool, and the magnified vial is helpful in dim kitchens before trim lights go in.
• Decks and exterior: Checking post plumb in a breeze with a 6‑foot level is a two-hand job, but the handle helps, and the durability has held up fine to exterior use.

The body tracks well on both rough surfaces and finished edges. There’s enough surface area to stay stable on narrow framing like 1‑1/2-inch edges, but it isn’t so wide that you lose contact on uneven material. The reference edges are straight and, after weeks of use, still nick-free—credit to the end caps and the stiff profile that keeps the body from twisting under load.

Durability and calibration retention

The die‑cast center vial holder inspires confidence. On some levels, the center vial is the weak point after an impact. Here, it’s caged in a robust frame. I haven’t had to relegate this one to “rough work only.” A routine flip test every few weeks has shown no drift.

To be clear, this is not a user-adjustable level. The vials are set at the factory; there are no accessible adjustment screws. That’s standard for block vials, but it means you should do occasional checks to confirm calibration and replace the tool if it ever goes out. With normal jobsite abuse—light drops, truck-bed chatter—it’s stayed true.

Practical notes

• Non-magnetic: This model doesn’t have a magnetic strip. If you work a lot with steel studs or structural steel, you’ll miss that feature. For wood framing and general carpentry, I don’t find it limiting.
• Storage: At 72 inches, it’s never going to be compact. There’s no case included. I’d love a purpose-fit sleeve to protect it in transport, but the caps do enough that I don’t worry tossing it into a level rack or against a van wall.
• Weight and handling: The balance is good. The handle placement is natural, and the body doesn’t feel nose-heavy. Overhead use is reasonable for short durations.

Accuracy in context

A 0.5 mm/m spec is right where I want a 6‑footer. In the field, the limiting factor is often the surface you’re measuring or the human reading the bubble. The magnified center vial helps minimize reading error, and the stiff box-beam reduces flex-induced error. Translation: When I mark level with this tool, the results align with what I see later on laser checks or long-water-level references.

Ergonomics and workflow

The continuous marking edge and center magnification have more impact on workflow than flashy features do. Being able to scribe a long, uninterrupted line across the center cut a few minutes from tasks like laying out tall shiplap or battens. Quick, confident reads from a bright, magnified vial shave seconds off every check, and that adds up over a day.

The carry handle sounds trivial, but anything that reduces the annoyance of moving a 6‑foot level through doorways and up ladders keeps the tool in your hand instead of leaning against a wall. If it’s comfortable to use, you’ll use it more—and your work benefits.

Where it could improve

• A magnetic version would expand its use cases on steel framing and metal door frames.
• A protective case or sleeve would make transport easier and keep the reference faces pristine longer.
• Warranty is a modest 1 year. Some competitors offer longer coverage on vial accuracy. I haven’t needed support, but extended accuracy warranties provide peace of mind for a tool that lives a hard life.

None of these are deal-breakers for my use, but they’re worth noting if you’re choosing between brands or building out a kit for specific materials.

The bottom line

DeWalt’s 72‑inch box‑beam level is a solid, accurate, and jobsite-friendly tool. It stays true, reads fast, and resists the dings and twists that send long levels to early retirement. The bridged center vial and magnified lens are not window dressing—they improve daily usability. While I’d like a magnetic option and a longer warranty, the core performance is exactly what I need from a 6‑foot level.

Recommendation: I recommend this level for carpenters, remodelers, and installers who need a reliable 72‑inch reference for framing, doors, cabinets, and exterior work. It delivers pro-level accuracy (±0.0005 in/in), real stiffness in a long body, and thoughtful features that speed up layout and reading. If your work leans heavily on steel, look for a magnetic variant; otherwise, this is an easy tool to trust and a straightforward one to live with day to day.
