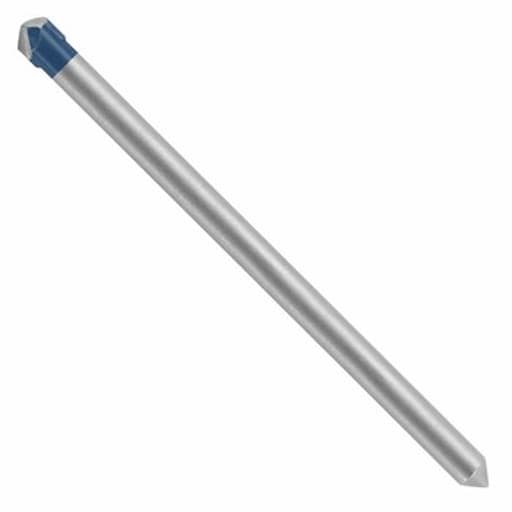

Bosch Natural Stone Tile Bit

I spent a weekend mounting hardware on a mix of leftover tile offcuts—marble, travertine, slate, and a couple of porcelain samples—to see how this Bosch stone tile bit holds up in the real world. On paper, the multigrind carbide head promises faster progress in hard materials, precise starts, and compatibility with hammer drills. In practice, it’s a capable niche bit with clear strengths in true natural stone and equally clear limits on dense porcelain and glazed ceramics.

Setup and test materials

I ran several sizes from the line (1/8 to 3/8 inch), using:
- A variable-speed corded drill in rotary-only mode for surface drilling
- A hammer drill for limited testing in backing material
- Water for cooling on longer holes
- Low to moderate RPMs (roughly 300–800, depending on diameter)

My test stack included honed marble and travertine (soft natural stone), slate (layered and prone to delamination), and two tiles that push many “stone” bits to their limits: a dense porcelain floor tile and a glassy glazed ceramic wall tile.

Starting accuracy and control

The multigrind head does make a difference. On natural stone, the bit started cleanly without much skating, even without tape. I still recommend a piece of painter’s tape to eliminate surface scratches on polished finishes, but the cutting edges bite early and track true. Compared with single-point spear tips, this head felt more stable once it established its seat, which helped with hole alignment for anchors and hardware mounts.

On the glossy ceramic sample, the bit needed tape to keep from wandering. It eventually bit in, but this isn’t where it feels at home.

Speed through different materials

• Marble and travertine: Performance was solid. The bit cut quickly enough to make multiple clean holes for anchors, and it never felt like it was overheating when I kept the RPMs modest and used a trickle of water. If you work primarily in softer natural stone, the speed-to-control ratio is exactly what you want.
• Slate: Progress was steady, though not fast. The layered structure of slate can chip on exit; easing up on pressure for the last third of the hole and backing out to clear dust helps. The bit’s geometry seemed to reduce splintering compared to a standard masonry bit.
• Porcelain: Slow. Even with careful speed and water, porcelain demanded patience. I got through, but it took longer than I’d accept for production work. Expect much better results with a diamond tile bit on porcelain.
• Glazed ceramic: It cut, but slowly, and the edge lost a bit of crispness sooner than I hoped. On glazed ceramic, a spear-point glass and tile bit or a diamond bit would be my first choice.

Hole quality and chip-out

In natural stone, edges were clean with minimal breakout. On slate, chip-out on the exit was the main issue—manageable with technique and backing material. On porcelain and glazed ceramic, entry was acceptable with tape and light pressure, but exit chips happened when I rushed. If hole edges matter on dense, brittle tiles, a diamond core bit remains the safer bet.

Heat management and bit life

Carbide can take heat better than HSS, but it still hates being run dry at high speed against hard, abrasive material. Two notes from my time with the bit:
- With water cooling and low RPMs, wear in marble and travertine was modest after multiple holes. The cutting edges still looked sharp.
- In porcelain, even with water, the bit’s edge dulled faster than I’d like. It was still usable, but noticeably slower by the third hole at 1/4 inch.

If you’re planning a larger batch of holes in porcelain or glazed ceramic, switch to diamond.

Hammer drill compatibility

The bit is labeled as compatible with hammer drills, which it is—but “can” and “should” are different questions on finished tile. Here’s what worked for me:
- On the face of any tile (natural stone or otherwise), keep the drill in rotary-only mode. Percussion risks spalling or cracking the surface.
- If you must pass through into a masonry backing, you can switch on a light hammer action only after the bit has fully cleared the tile and you’re firmly in the substrate. Even then, be gentle—tile can still transmit shock.

The compatibility is helpful once you’re into concrete or block, but it’s not a license to hammer through the tile layer itself.

Size range and length

The available sizes cover common anchor diameters (1/8 to 1/2 inch). At the small end, the bit feels nimble and accurate. At 3/8 inch, it’s usable in stone but requires more care with clearing dust and keeping the tip cool. For 1/2 inch, I’d reach for a diamond core bit for anything beyond very soft stone.

One practical limitation is total length: roughly 2 inches across the range. That’s fine for typical tile-and-drywall installs and many wall anchors, but if you need deeper holes through thicker substrates or want more reach in tight fixtures, the compact length feels restrictive. Plan your anchor depth accordingly.

Durability and value

Durability tracks with the material you drill. In softer natural stone, I got good hole counts without noticeable slowdown. In slate, life was decent with careful feed pressure. In porcelain, the bit’s life is short enough that I’d call it a “get-it-done-in-a-pinch” choice rather than a go-to. For mixed-material jobs that include porcelain, a small diamond set pays for itself quickly.

From a value perspective, this bit makes sense if your work is primarily in marble, limestone, or travertine, and you prefer the feel of a multigrind carbide head over diamond. It also doubles acceptably into the masonry backing once you’re past the tile, which is a convenience for one-tool setup.

Technique tips for best results

• Use rotary-only mode on the tile face; reserve hammer for the backing material.
• Keep RPMs low to moderate; let the cutting edges work.
• Use water to control heat on anything beyond shallow holes.
• Tape the entry point on polished or glazed surfaces.
• Back the tile with scrap wood or approach from both sides, where possible, to reduce exit chip-out.
• Clear dust frequently; carbide hates packed swarf.

Who it’s for

• DIYers and trades working mainly with true natural stone tiles (marble, travertine, limestone), installing anchors, brackets, and hardware at common diameters.
• Users who want a single bit that can transition from tile to masonry backing without a tool change, as long as they mind the hammer mode.
• Anyone drilling occasional holes in slate, provided you manage chip-out.

Who should look elsewhere:
- Installers dealing frequently with porcelain or hard glazed ceramic—use diamond tile bits or core bits instead.
- Users needing deeper reach than a 2-inch overall length can offer.
- Anyone making large-diameter holes (3/8 inch and up) in dense materials; diamond cores are faster and cleaner.

Recommendation

I recommend this Bosch stone tile bit for light to moderate drilling in true natural stone tiles, especially marble and travertine, where it starts accurately, cuts cleanly, and holds up well with proper cooling. It’s a sensible pick for small anchor holes, offers good control, and transitions acceptably into masonry backing when needed. I would not recommend it as a primary solution for porcelain or glazed ceramic; it will get through, but slowly, and the edge dulls faster than ideal. If porcelain is on your task list, invest in diamond. For the right material and technique, though, this bit is a reliable, no-drama performer.
