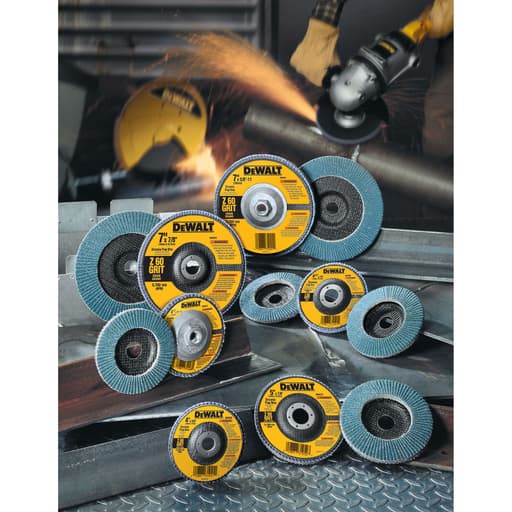

DeWalt HP Flap Discs Type 27

Why I keep reaching for this flap disc

Flap discs are my go-to for blending welds, knocking down rust, and shaping edges without leaving deep gouges. After several weeks of steady use, the DeWalt HP flap disc has earned a permanent spot in my grinding kit. It pairs a zirconia abrasive with a premium cloth on a Type 27 fiberglass backing, which is a mouthful on paper but boils down to three things in practice: it removes material fast, it tracks the work predictably at a shallow angle, and it lasts longer than the bargain-bin discs I used to burn through.

I ran multiple grits (24 through 120) across mild steel brackets, cast iron, and the occasional hardwood shaping job. The discs I used were 4-1/2 and 5 inches with 7/8 and 5/8-inch bores, mounted on corded grinders. The experience was consistent across sizes: smooth, controllable cutting with minimal chatter and a finish that’s easy to refine.

Setup and compatibility

DeWalt offers this disc in common diameters—4, 4-1/2, 5, and 7 inches—with arbor options including 5/8, 7/8, and 5/8-11. That covers most North American angle grinders. A quick tip that saved me later: double-check both diameter and arbor fitment on your grinder’s flange and guard. I once grabbed a 4-inch disc for a grinder set up for 4-1/2-inch wheels and had to swap tools mid-job. It’s an avoidable hassle.

The Type 27 fiberglass backing is designed to run at a 5–15° angle. That shallow stance makes it easy to keep the disc flat to the work without digging corners. If your muscle memory is used to fiber-resin sanding discs or more domed Type 29 flap discs, you’ll adapt quickly—just lighten your pressure and let the zirconia do the work.

Two other setup notes:
- Keep the guard on and match the disc’s maximum RPM to your grinder.
- If you switch between steel and wood, clean the flaps to avoid cross-contamination and loading.

Performance: fast, predictable cutting

DeWalt claims higher removal rates versus fiber-resin sanding discs. I didn’t time cuts with a stopwatch, but the difference is obvious. On 3/16-inch mild steel, a 36-grit disc chewed mill scale and weld discoloration in a few smooth passes, and edge beveling felt closer to grinding with a coarse wheel than sanding. Compared with fiber discs, I needed less pressure to keep it cutting, which also kept temperatures down and reduced the chance of blueing thin stock.

Where these discs shine is control. With the correct angle (I’m usually near 10°) and light to moderate pressure, they track cleanly across a surface without chattering or skating. That’s especially helpful when blending around weld toes or cleaning rust on irregular shapes like brackets and tube joints. I also prefer this disc over a wire wheel for heavy rust—it removes corrosion and leaves a uniform surface profile ready for primer, rather than polished spots next to untouched pits.

On hardwood shaping, 80–120 grit works surprisingly well for rounding edges and rough sculpting. Zirconia will load if you’re too aggressive on resinous woods, but a few light passes and periodic cleaning kept the cut consistent. I wouldn’t make flap discs my primary woodworking sander, but for quick shaping or cleaning old finish from hardware, they’re effective and controlled.

Finish quality and consistency

The advantage of a flap disc is blending power without the deep striations of a grinding wheel. These discs delivered a uniform scratch pattern, especially in 60 and 80 grits. In practice:
- 24/36 grit: aggressive stock removal, beveling, knocking down weld crowns.
- 40/60 grit: general cleanup, rust removal, blending grinder marks.
- 80/120 grit: surface prep for paint, smoothing edges, light deburring.

If I keep the angle shallow and avoid bearing down, I can move from 36 to 80 grit and be ready for primer without additional sanding. That’s not something I can say for cheaper flap discs, which often cut unevenly as the flaps wear.

Durability and wear

Zirconia on a premium cloth shows its value over time. I’m used to discount flap discs losing bite quickly or shedding flaps after a few snags. Here, the cut stays consistent deeper into the disc’s life. I could work through multiple brackets and two sizable rust-removal tasks on a single 36-grit disc before feeling the cut taper off. While I didn’t track exact hours, the lifespan is clearly several times longer than the low-cost discs I keep as backups. The fiberglass backing remained stable and flat; no warping or wobble showed up even as the flaps shortened.

Do they last “up to 15×” longer than fiber-resin sanding discs in every scenario? Not in my mixed-use, stop-and-go shop work. But there’s no question the premium cloth and zirconia extend usable life significantly, and the consistent cut saves time.

Grit choices and applications

Picking the right grit matters more than brand in many cases, and this line covers the useful range:

• 24/36: Heaviest removal. I reserve this for beveling, weld crown knock-down, and heavy scale.
• 40/60: My daily-driver grits. They clean and blend without chewing too deep.
• 80/120: Refinement and prep before primer or to soften edges.

If you only stock two, 36 and 60 cover most metalwork, and adding an 80 gives you a smoother finish option.

Tips for best results

• Angle and pressure: Stay within the 5–15° window. Let the disc do the cutting. Excess pressure just heats the surface and glazes the abrasive.
• Keep it moving: Avoid dwelling on thin stock—heat builds fast. Use light, overlapping passes.
• Clean the flaps: An abrasive cleaning stick works to clear wood resin. A quick pass on scrap steel also helps.
• Edges and corners: Approach edges from the near side and roll off. Leading in too steeply can snag flaps.
• Storage: Keep discs dry and flat. Humidity and weight can deform backing over time.

Limitations

• Tight spaces: The Type 27 profile is great for flat work and blending, but it won’t reach into inside corners.
• Ultra-aggressive grinding: If you like a steeper attack angle and maximum bite, a Type 29 disc may suit you better. The HP disc prioritizes control and finish.
• Nonferrous metals: Like most zirconia flap discs, aluminum can load the flaps quickly. Use a dedicated non-loading disc for nonferrous work.

Value

These are not the cheapest discs on the shelf, and they don’t pretend to be. The upfront cost is higher, but the usable life and consistent cut make the cost per job lower in my shop. Packs of five or ten are a sensible buy for regular use, and the range of arbor options makes it easy to outfit different grinders.

If you do only occasional cleanup, a budget disc may be fine. If you grind or blend weekly, this disc earns its keep.

Who will appreciate it

• Fabricators and welders who blend and prep regularly
• Maintenance techs dealing with rust, scale, and general metal cleanup
• DIYers who want predictable control without jumping between wheels and sanders

Recommendation

I recommend the DeWalt HP flap disc for anyone who values a controllable cut, a clean finish, and a disc that holds up under regular use. The zirconia abrasive and premium cloth deliver fast removal without the harshness of a grinding wheel, and the Type 27 backing makes it easy to keep a consistent angle. It’s available in the diameters, grits, and arbor sizes most of us actually use, and it has proven durable enough to justify the price.

Pick your grits thoughtfully, match the arbor to your grinder, and stay in that 5–15° sweet spot. Do that, and this becomes a reliable, everyday consumable rather than a throwaway.
