DeWalt 20V MAX Drywall Cut-Out Tool (Tool Only)

A cut-out tool earns its keep the first time you trace an outlet box without nicking a wire. After a few projects hanging and trimming drywall, I put the DeWalt cut-out tool into regular rotation. It’s a compact, single-speed rotary cutter built for drywall, ceiling tile, and thin plywood, and it’s part of DeWalt’s 20V MAX platform. Here’s how it fared on real jobs, what I liked, and what I’d change.

Setup, balance, and ergonomics

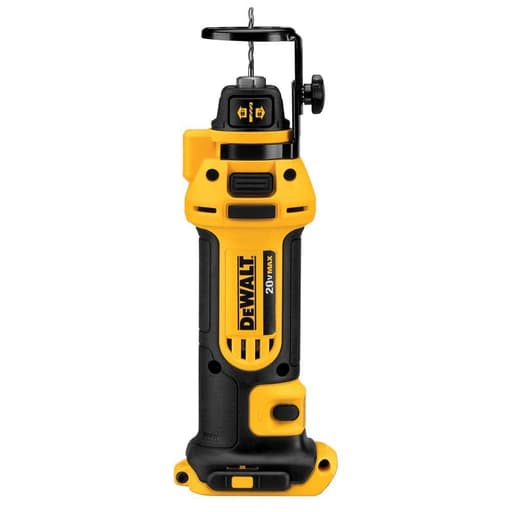

The tool is simple: a pencil-like body, depth guide at the nose, spindle lock, and a bright LED near the collet. With a 2.0Ah battery it stays nicely one‑handed and balanced; with a 5.0Ah pack it’s a bit tail-heavy but still manageable. At about 2.5 pounds bare, it’s easy to hold up over your head for ceiling work and light enough for long wall runs without forearm fatigue.

The grip is slim enough for controlled tracing, and the on/off switch has a positive, dust-resistant feel. The LED is better than I expected—positioned so it washes the cut line without glare. You still get the usual drywall dust cloud, but having light on the nose helps when the room lighting is poor or you’re cutting in a dim closet.

Performance in drywall and similar materials

This is a single-speed tool spinning at 26,000 RPM, and that speed is the right match for spiral cut bits in drywall. It plunges cleanly and keeps momentum through long cuts without bogging. My standard approach for boxes is to set the depth just past 1/2 inch, plunge inside the box, and then run clockwise so the bit rides the box wall. The motor has enough torque that it doesn’t stall when you accidentally lean into a stud or the lip of a metal box.

On ceiling tiles, it’s almost effortless. The high speed leaves clean edges with minimal fuzzing. In thin plywood (think 1/4 inch), it works, but feed pressure matters. Keep the tool moving and let the bit do the work; bear down and you’ll heat the bit and increase tear-out on the backside. The lack of variable speed is noticeable in plywood and plastics—this isn’t a precision laminate trimmer or acrylic router—but that’s not its lane. For drywall tasks, the fixed speed is a non-issue.

Bit control and cut accuracy

Control is what makes or breaks a cut-out tool. The nose guide keeps your depth consistent, and the tool’s shape encourages a light, guiding grip with your index finger along the body. With a sharp 1/8-inch bit, I can trace around boxes with surprising accuracy, grazing the edge without chewing into a device or bracket. For larger cutouts like recessed lights, a 1/4-inch bit speeds things up and tracks straight lines well.

Two tips that helped me get cleaner results:
- Set depth just a hair deeper than the material. Too deep and you’ll gouge studs or hit unseen screws; too shallow and you’ll bounce off the paper and wander.
- Start with a small pilot plunge to stabilize, then lean the tool slightly in the direction of the cut. The high RPM will pull the bit into the line; you’re mostly steering.

Bit changes and the depth guide

DeWalt’s “tool-free” bit change is a mixed bag. You press the spindle lock and twist the collet sleeve by hand—no wrench needed—and that’s convenient. However, access is partly blocked by the depth guide. On my tool, I usually slide the guide off to get a firm grip on the collet and avoid pinching fingers. It’s an extra step and adds a little time when swapping between 1/8-inch and 1/4-inch shanks.

A couple of practical notes:
- Keep the collet and bit shank clean. Drywall dust is fine, and it cakes up fast; a quick blow-out or brush makes bit changes smoother and reduces slippage.
- Tighten the collet firmly. Because you’re side-loading the bit, a loose collet will walk the bit out under vibration.

The depth guide itself holds its setting well once snugged. I check it before each cut, but it hasn’t drifted during use.

Dust, noise, and maintenance

Despite the sealed switch, this is still a drywall tool—it throws dust. Plan on a respirator and hearing protection. The motor’s pitch is high, like a compact router. After a session, I blow the tool out with compressed air, especially around the nose and collet. The sealed switch has stayed crisp and hasn’t gummed up, which is a nice long-term durability touch.

The LED does help, but once dust is in the air you’re navigating by feel as much as sight. That’s where a consistent depth setting and a light hand pay off.

Battery life and the 20V MAX ecosystem

Runtime varies with material and bit size, but the 20V MAX platform makes it flexible. With a 2.0Ah battery, I can do several boxes and a couple of ceiling cutouts in a session with charge to spare; with a 5.0Ah pack, you’re realistically covered for a typical room’s worth of outlets and lights without swapping. If you already own DeWalt 20V MAX batteries, this tool slots right in. If you don’t, factor the cost of a battery and charger—this is a bare tool.

One small thing I appreciate: the tool wakes up instantly. There’s no soft-start lag, which makes it easy to feather a plunge and get moving.

Where it shines

• Drywall cutouts: It’s fast, predictable, and light. The 26,000 RPM motor keeps the bit from grabbing and chipping edges.
• Overhead work: The weight and balance make ceiling lights and vents manageable.
• Quick hole-making in ceiling tiles: Clean cuts without tearing.
• One-handed tracing: The form factor invites a pencil-like grip for good control.

Where it falls short

• Bit-swapping workflow: Tool-free is handy, but needing to move the depth guide out of the way to access the collet can be fiddly, especially with dusty gloves.
• No variable speed: Not a dealbreaker for drywall, but it limits finesse in plastics or thin hardwoods. If you regularly cut beyond drywall, a variable-speed rotary tool may serve you better.
• Noise and dust are inherent to the category. There’s no dust collection port, so you’ll be relying on PPE and cleanup.

Tips to get the most out of it

• Choose the bit to suit the job: 1/8-inch for tight tracing and control, 1/4-inch for longer straight cuts and speed.
• Set depth carefully and check it before each cut.
• Plunge inside the box when possible to avoid nicking wires or devices; run clockwise around the interior.
• Use light pressure and a steady pace—let the RPM do the work.
• Keep collet and shanks clean; a quick brush or blast of air before changing bits saves time and frustration.

Durability and warranty

I’ve had no issues with overheating, switch failure, or wobble. The brushed motor is standard for this category and hasn’t been a drawback in practice. The warranty is reassuring: 3-year limited, 1-year free service, and a 90-day satisfaction period. In my experience, the tool has held up to jobsite dust and the occasional bump without complaint.

Final thoughts and recommendation

The DeWalt cut-out tool does exactly what a drywall cut-out tool should: it cuts fast, tracks predictably, and lets you work one-handed all day without fatigue. The high-speed motor keeps momentum in gypsum, the LED is genuinely helpful in dim spaces, and the adjustable depth guide brings consistency. Its biggest annoyance is the bit change routine; while wrench-free is nice, having to move the depth guide for good access adds steps, and it takes a little practice to make quick swaps. The lack of variable speed also narrows its best-use cases to drywall and similarly soft sheet materials.

I recommend this tool for anyone already in the DeWalt 20V MAX ecosystem who regularly cuts boxes, can-lights, vents, or speaker openings in drywall. It’s a time-saver compared to a jab saw or multitool, and it’s more maneuverable than a corded rotary cutter on a ladder. If you need multi-material versatility or you swap bits constantly throughout the day, consider a model with easier spindle access or variable speed. For straightforward drywall work, though, this is a reliable, efficient performer that earns its spot in the kit.
