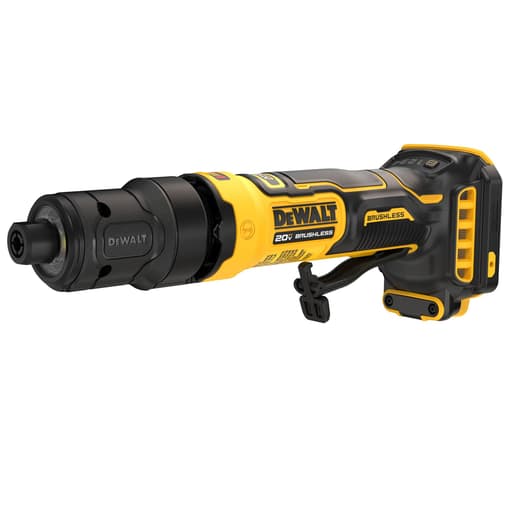

DeWalt ATOMIC 20V MAX Die Grinder (Tool Only)

Why I reached for this die grinder

Cordless die grinders are finally good enough to replace air in a lot of day‑to‑day tasks, and this one proves it. I brought the DeWalt 20V die grinder into a mix of fab, maintenance, and field work—everything from knocking mill scale off weldments to chasing gasket surfaces and cleaning out pitted bolt holes. It’s become the compact grinder I toss in the bag when I’m not sure what the job will throw at me.

Design and ergonomics

The form factor is slim with a long neck that fits easily between brackets and into crossmembers. With a mid‑size 20V pack, the balance sits comfortably in the hand; it’s not nose‑heavy, and the paddle lands where my fingers expect it. The forward exhaust keeps grit away from my face better than rear‑exhaust models, and the onboard LED is more than a gimmick—it actually lights up dark cavities where I’m deburring or cleaning, especially in engine bays and cabinets.

The tool ships as a bare tool with a 1/4 in. collet and a wrench. There’s a spindle lock, so you can get away with one wrench for accessory changes, which speeds swaps when you’re bouncing between a burr and a sanding drum. If you frequently run 1/8 in. shank bits, plan on adding an aftermarket collet.

Power and performance

DeWalt rates the brushless motor at up to 445 MWO. Specs aside, here’s what that looks like in the real world:

• With a braided wire wheel, it scrubs greasy, crusted steel without fading out. I could lean into it more than I expected for a cordless tool.
• On grinding points and carbide burrs, it holds speed well and resists bogging unless you really bury the bit.
• For flap wheels and cartridge rolls, the variable trigger gives just enough headroom to slow the abrasive down when you want a softer cut or less heat.

Top speed is a claimed 24,500 RPM, and the motor feels happiest from mid to high trigger travel under load. Compared to a 1 hp pneumatic, it’s very competitive for most shop tasks while eliminating the hose and compressor drag.

Noise levels are reasonable for a grinder in this class; still loud, but notably less shrill than some air die grinders. Vibration is well controlled, which matters on longer sessions with burrs or stones.

Speed control and switchgear

The paddle switch is crisp and predictable. There’s no lock‑on (which is a plus for safety in my book), and you get true variable speed via the trigger. I like this arrangement when I’m feathering around delicate edges—no reaching for a dial or mode button mid‑cut.

My one gripe is the lock‑off safety you must defeat before the paddle will actuate. It resets each time, so you have to press the lock‑off and then squeeze the paddle for every start. With gloves on, it breaks the rhythm a bit and adds a half‑second to each cycle. You get used to it, but I’d call the placement and feel of that lock‑off the tool’s least refined element.

Safety features that matter

Two electronic protections make a practical difference:

• Anti‑rotation system: If the wheel pinches or the bit binds, the grinder shuts down quickly. It’s sensitive enough to save your wrist when a burr grabs in a corner. After a trip, you need to release and re‑pull the trigger to restart. You’ll occasionally trigger it on aggressive cuts, but the trade‑off is worth it, especially in awkward stances.
• Electronic brake: When you let off the paddle, the accessory stops in under a second. In tight work or when you’re setting the tool down near hoses and cords, that fast stop reduces the “waiting around for spin‑down” moments and the incidental scuffs that come with them.

Between those and the lack of a lock‑on, it’s a grinder I feel comfortable handing to newer techs—still a serious tool, but more forgiving than many.

Battery life and platform considerations

This grinder draws real current under load. If you plan to do heavy wire brushing or sustained carbide work, bring capacity. On 5.0Ah and 6.0Ah packs, I can get through a typical maintenance round before swapping, but you’ll drain packs faster than with many drills or impacts. High‑output batteries help the tool stay lively as packs get warm.

The upside is platform convenience—if you’re already on DeWalt 20V, you can leverage the packs you own. It’s also Tool Connect chip ready (chip sold separately), which matters for fleets that track assets or want to assign tools to kits.

In use: tasks and materials

• Deburring and chamfering plate edges: Holds speed and gives a clean finish with 60–80 grit flap wheels and cartridge rolls.
• Cleaning gasket surfaces and housings: Wire wheels and radial bristles cut quickly without diving into aluminum the moment a corner grabs.
• Removing weld spatter inside frames: The long neck and LED made it easier to see and reach spatter in box sections.
• Port clean‑ups and casting flash: Carbide burrs run smooth; the anti‑rotation trips occasionally in deep grabs but prevents the bit from corkscrewing the tool out of your hands.

I still prefer a long‑reach pneumatic for extended high‑duty porting sessions, but this cordless unit handled 90% of what I normally do with air—minus the hose wrestling.

Maintenance and accessory changes

The spindle lock works reliably, and the included wrench is decent. The collet releases accessories cleanly without the stick‑slip I’ve seen on cheaper units. Keep the collet threads clean and blow the nose out periodically; the forward exhaust helps, but grinding dust will still find its way into every crevice. As with any die grinder, match accessory max RPM to the tool’s top speed.

What I’d change

• Improve the lock‑off ergonomics: The current placement and reset‑every‑time behavior slow things down. A more intuitive lock‑off—still safe, but more glove‑friendly—would be a meaningful quality‑of‑use upgrade.
• Offer a 1/8 in. collet in the box: Many of us run small burrs for detailed work; including that collet would save a parts hunt.
• Optional speed presets: The variable trigger works well, but a supplemental low/medium/high selector could add consistency for repetitive tasks without riding the paddle.

Durability and warranty

The housing and overmold feel robust, and the tool shrugged off heat during extended wire‑brush work. I didn’t encounter thermal cutbacks in normal use. The 3‑year limited warranty, 1‑year free service, and 90‑day satisfaction guarantee are standard for the brand and appropriate for a tool at this level.

Who it’s for

• Fabricators, maintenance techs, and mechanics who want a cordless die grinder that doesn’t feel like a compromise.
• Pros already on the 20V platform looking to eliminate hoses for most grinding, cleaning, and deburring tasks.
• Field work where the LED, forward exhaust, and compact neck make access and visibility better than a stubby grinder.

If your day is nonstop heavy porting or you live on 1/8 in. burrs, a high‑horsepower air setup still has a place—but you’ll likely reach for this cordless more often than you expect.

Recommendation

I recommend this die grinder. It delivers genuinely useful power, excellent control, and thoughtful safety without the tether of air or cord. The anti‑rotation and fast brake make it safer in awkward positions, the variable‑speed paddle is easy to modulate, and the slim head with forward exhaust and LED makes a difference in tight, dirty spaces. Plan on using higher‑capacity batteries for heavy work and accept that the lock‑off is a little fussy. For most pros and serious DIYers on the 20V platform, the performance and convenience outweigh those quirks.
