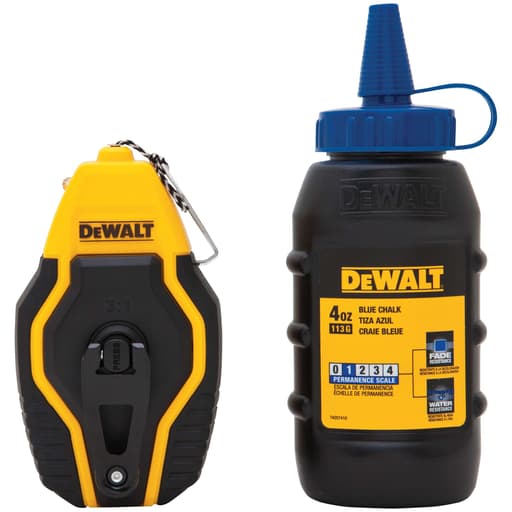

DeWalt Compact Chalk Reel with Blue Chalk

A compact chalk reel that’s best as a backup, not a workhorse

I put this compact chalk reel to work over a couple of weeks of layout—partition walls in a basement, a stair run on plywood treads, and some garage shelving. On paper, it checks a lot of boxes: compact size, a 3:1 gear ratio, a clutch that lets you free-spool quickly, and a braided line that loads chalk fast. In practice, it’s a decent secondary reel that snaps clean lines when everything is going right, but it struggles to hold up as a primary box on a busy job.

Setup and first impressions

Out of the blister pack, the reel is light and easy to pocket. The overmold feels grippy enough, the belt clip is stout, and the nesting end hook tucks away cleanly so it doesn’t snag inside a pouch. Blue chalk is included; the bottle pours easily without the usual funnel fumble, and the housing opens without drama if you need to change lines later.

The 3:1 gearing is middle-of-the-road: not as fast as the 4:1 or 6:1 reels many framers rely on, but quick enough that rewinding a 30 m/100 ft line doesn’t feel like a chore. The handle knob is on the small side—fine with bare hands, a little cramped with gloves.

The clutch is the standout feature. Depress it and the line free-spools smoothly, which is handy for running a line across a room or when you’ve got a helper on the far end. Release it and you’re back in gear. When it works, it’s slick.

Build and ergonomics

This is a plastic-bodied, compact reel. That helps keep weight down (about a third of a kilo) and makes it easy to stash, but it also sets expectations: it’s not a tank. The seams are reasonably tight and I didn’t see excessive chalk dusting from the housing. The clip’s tension is strong enough to stay put on a belt or pocket edge, though left-handed users may notice the clip orientation is biased for right-hand carry.

The end hook is a simple, effective profile. It grabs plywood and drywall edges without hunting, and the “nesting” recess protects it when stowed so it doesn’t deform.

Line quality and chalk performance

The braided line is thicker than monofilament and it absorbs chalk quickly. That’s good for getting strong, legible lines on framing lumber and subfloor. It’s less ideal for delicate layout—tile grids, fine cabinetry, or trim—where you want a thinner, crisper snap. Blue chalk is the right default for general interior work: visible, reasonably clean, and non-permanent. Outdoors on darker or wet surfaces you’ll want a bolder color; for permanent lines you’d move to red or black, but I kept blue for this test because it’s the included standard.

Snap quality was consistent on clean plywood and drywall. On rough PT lumber, the bolder braided line actually helped by bridging small gaps in the grain. Chalk retention after a few snaps was average; a quick rewind and shake restored coverage without needing to overfill the body.

On-site performance

• Interior wall layout: I used the reel for a 24-foot straight shot across a basement slab and several shorter snaps for stud layout. The free-spool clutch made it fast to stage the line across the room. Snaps were clean, and the rewind speed was acceptable for a compact box.

• Stair stringers: For repetitive snaps on clean plywood, the reel behaved well, and I appreciated the compact form factor—easy to grab, snap, and pocket.

• Garage shelving: Working around obstacles is where the clutch shines; free-spooling around a post or a stack of materials is less fiddly than cranking out slack.

I did run into two issues:

1) Occasional binding during rewind. Twice, the handle spun without taking up line. In both cases, the clutch hadn’t fully re-engaged after free-spooling. I had to tug the line taut and click the handle back into gear to catch. It’s a small interruption, but it’ll drive you nuts if you’re in a rhythm.

2) A single jam early on after a heavy chalk refill. Overfilling can cake the spool and cause the line to stack unevenly, which is what happened to me. Opening the housing, dusting off excess chalk, and respooling under light tension fixed it, but the episode reinforced that this reel is sensitive to how you load it.

Neither issue was catastrophic, but they chipped away at my confidence in the mechanism for all-day use.

Durability and maintenance

With plastic gears and housing, longevity depends on clean operation and a light touch. The braided line itself held up, with no fraying during testing, and the end hook stayed true. However, the clutch/gear interface is the weak point. If the clutch is even slightly chalk-caked or you’re rewinding with the line loose, it can slip or half-engage.

A few maintenance tips that improved my experience:

• Don’t overfill with chalk. Half-full is plenty; a fuller box tends to cake and bind.
• After free-spooling, pull the line snug and give the handle a positive half-turn before cranking in earnest. That helps the clutch re-engage cleanly.
• Store the reel with the line dry. If you snap on damp surfaces, let the line air out before winding tight.
• Every few days of heavier use, pop the case and blow out excess chalk dust. It takes a minute and prevents most binding.

As for warranty, it carries a limited lifetime, but typical wear items (line, chalk) aren’t covered and abuse isn’t either. In my view, you’ll get the most life out of it if you treat it as a light-duty or secondary reel.

What this reel does well

• Compact and easy to carry. It disappears into a pouch and the belt clip is secure.
• Fast staging with the clutch. Free-spool is a real time saver on short and medium pulls.
• Bold, readable lines with the braided cord. Great on framing and subfloor.
• Easy service access. Opening the body to clear dust or replace line is straightforward.
• Included blue chalk and an easy-pour bottle get you snapping right away.

Where it falls short

• The clutch can slip or hesitate. If you rely on free-spool constantly, expect the occasional hiccup during re-engagement.
• 3:1 gearing is only “okay.” Long pulls rewind slower than on higher-ratio reels, and the small knob limits leverage with gloves.
• Plastic construction limits durability. It’s fine for light use, but it’s not built for the daily abuse of a framing crew.
• Braided line is not a precision tool. If you need hairline snaps, you’ll want a thinner cord.

Best use cases

• Secondary or correction reel on a jobsite. Keep it chalked with blue for quick fixes and interior layout.
• DIY and light renovation. For occasional room layouts, shelving, and light framing, it’s compact, simple, and friendly.
• Tight spaces. The small form factor makes it handy where a bigger box feels clumsy.

If you’re snapping dozens of lines a day, outdoors and in, you’ll be better served by a heavier-duty reel with a higher gear ratio and a more robust clutch.

What I’d change

• Beef up the clutch spring or detent so re-engagement is more positive after free-spooling.
• Increase the handle size slightly and add a knurled or rubberized knob for gloved grip.
• Offer a thinner line option for finish work, or include a second spool to swap.

The bottom line

The compact reel is convenient, capable of clean lines, and genuinely fast to stage thanks to its clutch. But its plastic build and finicky clutch engagement keep it from being a reliable primary reel on demanding jobs. With mindful chalk loading and a light touch, it does fine work—and the easy-open body and belt clip add to its daily usability.

Recommendation: I recommend this reel as a secondary or homeowner-grade tool. It’s a handy, compact box with thoughtful features for quick interior layout. I wouldn’t recommend it as a primary chalk reel for heavy professional use; the clutch and gearing aren’t robust enough for all-day abuse, and the braided line isn’t ideal for precision snaps. Treat it as a lightweight companion, and it earns its place. Expect it to carry a whole job on its own, and you may be disappointed.
