Features
- Brushless motor for improved efficiency and compact size
- Low‑profile head for use in confined spaces
- Variable speed trigger (0–220 RPM) for control
- Built‑in LED light for working in dim areas
- PWRCORE 12 lithium‑ion battery with PWR ASSIST USB output
- PWRJUMP quick charger (fast charge option)
- Includes 3/8" to 1/4" adapter
Specifications
Drive Size | 3/8 in |
Voltage | 12 V |
Motor Type | Brushless |
Max Torque (Powered) | 55 ft-lbs |
Max Torque (Manual) | 150 ft-lbs (manual) |
No Load Speed | 0–220 RPM (variable) |
Battery | PWRCORE 12 lithium‑ion, 2.0 Ah (kit) |
Charger | PWRJUMP charger — 25% charge in ~5 minutes, 100% in ~30 minutes (based on 2.0 Ah battery) |
Mobile Charging | PWR ASSIST USB port on battery |
Tool Length | 15.5 in |
Tool Weight | 3.0 lb |
Led Light | Yes |
Variable Speed Switch | Yes |
After Glow / Pre Light | Yes |
Kit Contents | Ratchet wrench; 3/8" to 1/4" adapter; 2.0 Ah battery with USB; QB charger |
Related Tools
Related Articles

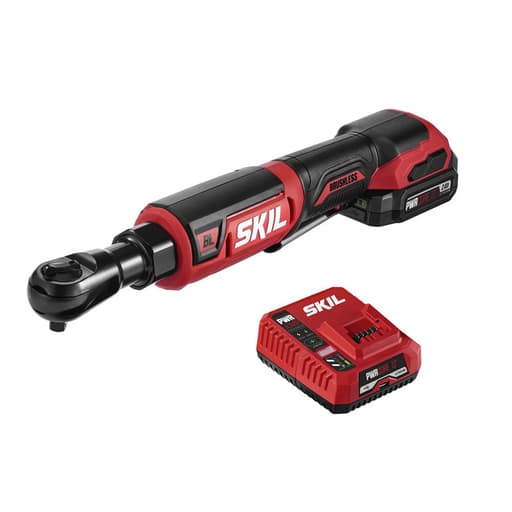

A compact 12V brushless 3/8 in ratchet wrench with a low‑profile head for access in tight spaces. It provides variable speed control (0–220 RPM) and up to 55 ft‑lbs of powered torque (150 ft‑lbs max manual torque). The kit includes a PWRCORE 12 lithium‑ion battery and a PWRJUMP charger.
Model Number: RW5763A-10
Skil PWR CORE 12 Brushless 12V 3/8 in Ratchet Wrench Kit Review
First impressions and where it fits
I put the Skil 12V brushless 3/8-inch ratchet to work in the places that usually make me grumble: under dashboards, along crowded engine bays, and inside small engine housings. Right away, it felt like a tool designed to replace a lot of tedious wrist work rather than a brute-force fastener breaker. If you’ve been living with a hand ratchet in tight quarters, this is a noticeable upgrade in speed and comfort—especially if your hands don’t love repetitive cranking.
Build, ergonomics, and controls
At 15.5 inches long and about 3.0 pounds with the compact 2.0 Ah battery, this isn’t the shortest 12V ratchet on the market, but the head profile is low enough to sneak past throttle bodies, frame rails, and HVAC boxes without much drama. The length is a double-edged sword: it helps with leverage when you’re finishing something off by hand, but you do need a little more fore/aft clearance than with the stubbiest ratchets.
The handle shape and rubber overmold are well executed. The paddle-style variable-speed trigger is predictable, with a soft take-up that makes it easy to start a fastener without launching a socket into a bracket. I had no knuckle-busting surprises when easing into tight spaces. The forward/reverse selector on the head is easy to flick with a gloved thumb and stays put.
The built-in LED is placed sensibly and does more than just check a box. It pre-lights when you graze the trigger and lingers briefly after you release it, which is the right way to handle jobsite lighting on a ratchet—you can aim the tool first and still see what you’re doing while you reposition.
Power and speed in real use
The brushless motor tops out at 55 ft-lbs of powered torque and 0–220 RPM. In practice, that put it squarely into the “remove and run-down” category for most 8–14 mm fasteners on engines and chassis. It spun out valve cover bolts, accessory brackets, shield screws, interior fasteners, hose clamps, and plenty of “spin-y” hardware rapidly and with good control. The low top speed compared to some competitors (which can run 250–450 RPM) is a deliberate trade-off for control. I preferred the slower ramp and top end for assembly work where cross-threading is a risk, even if it means you won’t set land-speed records when you’re just free-spinning a long stud.
Where that 55 ft-lbs ceiling shows up is with stubborn or heavily torqued fasteners. Exhaust hardware that’s heat-cycled into place, suspension bolts, and mower blade bolts that have been snugged to north of 80 ft-lbs are beyond its powered breakout capability. That’s normal for this class. The tool is rated to handle up to 150 ft-lbs of manual torque, so you can crack some fasteners by hand using the head mechanism as a conventional ratchet. I did that sparingly—enough to test it and finish a few jobs—but I still recommend a breaker bar or compact impact for real “stuck” hardware. The ratchet’s gears are stout for the category, but abusing them as a breaker habitually isn’t good practice with any powered ratchet.
Extensions and universal joints didn’t faze it. You’ll always give up a little torque through joints, but I was able to run fasteners in and out with a couple of wobble extensions without the tool stalling or snapping to a halt.
Battery, charging, and workflow
Skil bundles a 2.0 Ah PWRCORE 12 battery and the PWRJUMP charger in the kit. With on/off fastener work—think 2–4 second bursts—the pack lasted through a mix of small engine and under-hood tasks without mid-job anxiety. More importantly, the charger’s fast-charge behavior changes how you manage downtime. Getting roughly 25% back in about five minutes is enough to finish a surprising amount of ratcheting if you’re between steps, and a full charge in around 30 minutes keeps the tool in rotation for a single-battery user. If you’re on a steady diet of assembly/disassembly, a second pack is still smart, but the quick top-off genuinely helps.
A small perk worth mentioning: the battery’s USB output. I’ve topped off a phone and a headlamp from it in the field. It’s not a reason to buy the tool, but it’s the kind of convenience you appreciate when an accessory batteries out at the wrong time.
Noise, feel, and finesse
Brushless drive makes a difference in a ratchet. This one is smoother and quieter than brushed models I’ve used, with less heat buildup around the head during longer sessions. The trigger modulation is excellent; you can feather it so slowly that fasteners creep into alignment, and then commit to a controlled ramp without the tool lunging. That pays off in tight spots where you’re trying to avoid skin-to-bracket contact.
Socket retention on the 3/8-inch anvil was solid with a positive detent feel. Skil includes a 3/8-inch to 1/4-inch adapter in the kit, which broadens the ratchet’s usefulness for interior and small hardware. As always with adapters, there’s a bit more play than a native anvil, but it’s perfectly acceptable for light-duty use.
Access and head profile
The head isn’t the thinnest in the class, but it’s plenty low-profile for the kinds of jobs most folks buy a powered ratchet to do. I had no trouble working between an alternator and a radiator shroud, and it fit past an intake plenum where a standard ratchet would have required a frustrating tiny arc of motion. That “zero-degree” benefit—no swing needed—is the fundamental advantage here. As long as you can get the head on the fastener, you can get the job done.
Durability and serviceability
I didn’t baby the tool. It took a few drops to the shop floor and bounced off a mower deck without missing a beat. The head mechanism didn’t develop play, and the motor never exhibited cogging or stutter under load. Brushless construction should also pay dividends in longevity since there are no brushes to wear and less heat overall. As with any powered ratchet, keep impact-like tasks off its plate, and give the anvil a light wipe now and then to keep debris out of the detent.
What I liked
- Predictable trigger and low startup speed make precise work easy
- Useful LED with pre-light and afterglow behavior
- Brushless motor runs cool and smooth
- PWRJUMP charger meaningfully reduces downtime
- Included 3/8-inch to 1/4-inch adapter expands versatility
- Manual torque rating provides some headroom for snugging by hand
What could be better
- Overall length (15.5 inches) limits access in a few cramped bays
- 220 RPM top speed trails some competitors for rapid free-spinning
- 55 ft-lbs powered torque won’t break stubborn, high-torque fasteners
- At about 3 pounds, it’s not the lightest in the 12V class
Who it’s for
If your work involves lots of small to mid-size fasteners—automotive maintenance, small engines, appliances, light equipment, HVAC panels—this ratchet is a terrific time saver and wrist saver. It doesn’t replace a breaker bar or compact impact, but it makes everything after “crack it loose” much faster and a lot more comfortable. The included battery/charger bundle also makes sense if you’re not already invested in another 12V platform.
Recommendation
I recommend the Skil 12V brushless 3/8-inch ratchet as a dependable, well-mannered workhorse for light- to medium-duty tasks. It prioritizes control and access over headline speed, pairs that with a genuinely helpful fast charger, and brings the day-to-day conveniences—good LED behavior, smart trigger feel, and a useful adapter—that make a difference when you use a tool constantly. If you routinely tackle seized hardware or high-torque suspension work, you’ll still want an impact and a breaker bar. For everything else, this is exactly the kind of tool that earns a permanent spot in the top drawer.
