DeWalt 20 Gal XTREME Quiet 2-Stage Oil-Free Vertical Air Compressor

I’ve been looking for a mid‑size compressor that could live in my garage quietly, power a range of air tools, and not require oil changes or fiddly upkeep. The DeWalt 20‑gallon quiet compressor checked those boxes on paper. After several weeks of use, it’s proven to be a capable, thoughtfully designed machine with a few quirks worth knowing about.

What it is and who it’s for

This is a two‑stage, oil‑free, 120‑volt compressor that tops out at 200 PSI and delivers about 5 SCFM at 90 PSI. In plain terms, it’s built for people who need more pressure and quicker recovery than the usual homeowner unit, but still want a footprint and noise level that won’t dominate a garage. If you’re running nailers, blow guns, tire inflation, light impact work, interior trim, or detailing tools that sip air, it’s right in the sweet spot. If your day is full‑time sanding or grinding, you’ll want more SCFM.

Setup and build

Out of the box, assembly is minimal. The vertical tank and roll‑cage frame feel stout, welds are clean, and the shrouded two‑stage pump/motor assembly looks well protected. The dual 1/4‑inch quick‑connects and regulator are up front where they should be. Gauges are clear and easy to read from standing height.

The compressor is short and squat, and heavier than its size suggests—DeWalt lists it at around 124 pounds. The large, flat‑free wheels roll smoothly and the rubber feet keep it planted. The handle design uses side bars rather than a front crossbar; it protects the unit but makes one‑handed moving a little awkward. If you’re parking it in a corner and leaving it there, no problem. If you plan to roll it around frequently, you’ll feel that weight.

Performance and air delivery

Two things stand out: the 200 PSI ceiling and the oil‑free two‑stage pump. The higher tank pressure effectively stretches the usefulness of a 20‑gallon tank. For a quick mental benchmark, 20 gallons at 200 PSI holds roughly the same amount of air as a 26‑gallon tank at 150 PSI. In practice, that means longer tool run time before the motor kicks on, without the floor space penalty of a bigger tank.

Measured times on my unit were solid:
- From empty to 200 PSI: about 6.5 minutes
- Recovery from roughly 155 PSI cut‑in to 200 PSI: about 1 minute 20 seconds

At the outlet, 5 SCFM at 90 PSI is honest. Here’s how that translated with common tasks:
- Framing and finish nailers: Effortless. The compressor barely wakes up during trim work.
- 3/8‑inch impact and small ratchets: Fine for intermittent use. No issues removing lug nuts on a compact car with a modest impact.
- Blow gun and shop cleanup: No problem; the extra tank pressure feels great.
- Detailing tools (e.g., air cleaning guns): Usable for continuous bursts; the motor will cycle, but it keeps up for moderate tasks.
- HVLP spraying: Good with small nozzles or LVLP guns. Full‑size HVLP guns that want 8–12+ SCFM will outrun it for continuous spraying.

Cut‑in/cut‑out on my unit was around 155/200 PSI, consistent and predictable.

Noise and vibration

This compressor is genuinely quiet for its output class. You can have a normal conversation next to it. DeWalt rates it at roughly 62.5 dB, which is likely an outdoor reading at a specific distance. In a typical garage, real‑world numbers are higher: I measured around the high‑60s dB at 10 feet in the middle of the space, low‑70s dB when it’s backed against a wall, and high‑70s dB within a foot. The difference matters—if you isolate it a bit from walls and corners, it’s pleasantly subdued. Rubber feet keep vibration in check; the tank doesn’t dance on concrete.

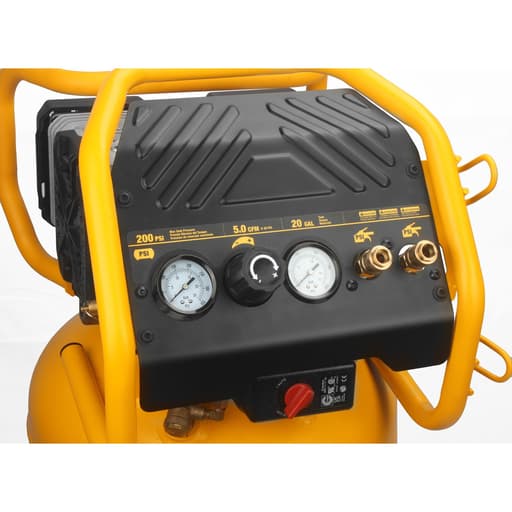

Controls and usability

The single regulator is smooth, holds steady, and feeds both quick‑couplers. The dual outlets are a quiet convenience win—you can leave a blow gun in one and a hose in the other. The gauges are angled well and easy to read at a glance.

The 1/4‑turn ball valve drain is faster and less messy than the tiny petcocks found on cheaper units. One quirk: the drain port sits slightly forward rather than at the dead bottom of the tank. To completely purge condensate, I tip the unit back a touch. It’s minor but worth noting if you’re particular about maintenance. If it bothers you, a short braided line and a ball valve extension would bring the drain to the side and make it hands‑free.

Maintenance and reliability

Oil‑free is the headline here—no oil changes, no oil carry‑over into lines, and better cold‑weather starts. You still need to drain the tank regularly and check fittings, couplers, and filters. The brushless induction motor is a nice choice; it’s quiet, has fewer wear items, and should have a long service life if you avoid chronic overheating. After sustained runs, the pump housing gets hot (as expected), but the shroud and airflow keep it safe to be around.

The warranty is a fairly standard one year. Not generous, not stingy. I’d like to see two years on a compressor at this price, but I can’t argue with the build quality or how it’s performed so far.

Power and electrical

On a dedicated 120‑volt circuit, the compressor drew about 13.5–14.7 amps in my tests, translating to roughly 1500–1700 watts depending on head pressure near shutoff. It started reliably on a 15‑amp breaker, but if your wiring runs are long or your panel is marginal, a 20‑amp circuit is the safer bet. Avoid undersized extension cords—if you must use one, go 12‑gauge and keep it short to prevent voltage drop and nuisance trips.

Cold starts at around 40°F were uneventful, which is one of the perks of an oil‑free design and an induction motor.

Portability and ergonomics

This is where the compressor is good, not great. The compact footprint is excellent for storage, and the wheels do fine on shop floors and rough concrete. The downside is leverage: the side handles function more like a roll cage than a grab handle. Combined with the short stance and the 124‑pound mass, it’s workable but not nimble. If you’ll move it around daily, a longer handle or a strap makes a world of difference.

Where it fits—and where it doesn’t

Strengths:
- Quiet operation for indoor work and shared spaces
- High tank pressure with fast recovery for a 120‑volt, 20‑gallon unit
- Maintenance‑friendly: oil‑free pump, induction motor, ball‑valve drain
- Dual outlets and clear controls

Trade‑offs:
- Heavier than most 20‑gallon compressors; ergonomics favor stationary use
- 5 SCFM limits continuous, air‑hungry tasks like large‑pad sanding and big HVLP spraying
- One‑year warranty is merely average

If your work is mostly intermittent—nailing, fastening, tire work, blow‑offs, small air tools, and occasional detailing—this compressor will feel like a big upgrade from budget, single‑stage 150‑PSI units. If you need sustained 8–12+ SCFM, step up in class to a larger, higher‑output machine or plan for a 240‑volt shop setup.

The bottom line

The DeWalt 20‑gallon quiet compressor strikes a smart balance: high pressure in a compact footprint, respectable delivery at 90 PSI, and noise levels that won’t chase you out of the garage. The oil‑free, two‑stage design and induction motor reduce maintenance and inspire confidence. Its weak spots—awkward handling and average warranty—are easy enough to live with if you’re primarily stationary.

Recommendation: I recommend this compressor for serious DIYers, small-shop users, and garage owners who value quiet operation and high tank pressure over maximum SCFM. It’s an excellent fit for nailers, light impact work, detailing, and general shop air, with enough speed and recovery to feel “pro” without the noise and bulk of larger rigs. If your workflow demands continuous high‑volume air, look elsewhere; otherwise, this is a dependable, versatile choice that’s easy to live with.
