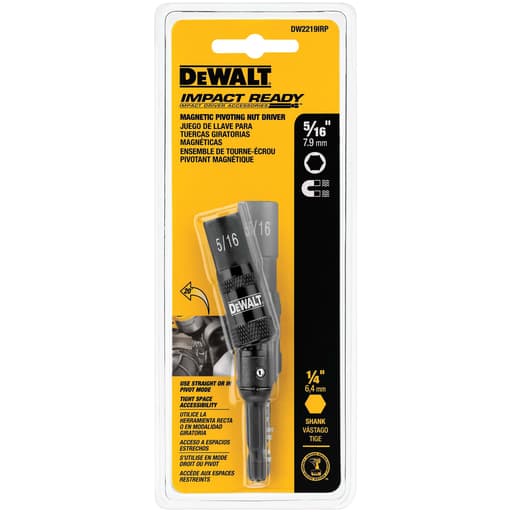

DeWalt Impact Ready Pivoting Nut Driver

Why this pivoting nut driver stays in my impact kit

I first reached for DeWalt’s pivoting nut driver on a rooftop where a brace sat frustratingly close to a panel flange. A straight driver would’ve meant moving hardware just to get square, but a 15–20 degree angle on the nut driver cleared the obstruction, kept the fastener aligned, and saved the install. That’s been the recurring theme since: this little accessory earns its keep by turning awkward access into routine work.

I’ve been using the 5/16-inch version, which is the size most of us grab for hex-head self-drillers, roofing screws, and a lot of HVAC and electrical hardware. It’s built for impact drivers and wrenches, has a 1/4-inch hex shank, and measures about 3-1/2 inches long. The size and length are a sweet spot—long enough to reach and see what I’m doing, short enough to maneuver in tight framing.

Build and design

The head uses a recessed-corner geometry that drives on the flats of the hex rather than the corners. In practice, that matters. It reduces the tendency to shave zinc off washers, resists rounding over corroded or painted fasteners, and keeps the bit from “skating” when I’m working at speed. The industrial-strength magnet is set deep enough to hold a screw without wobble, but not so aggressive that it traps every stray chip forever.

The pivot mechanism is the star. It allows up to 20 degrees of articulation, which is enough to clear adjacent studs, work around duct flanges, or reach fasteners tucked behind brackets. The joint feels tight and controlled—there’s enough friction to hold the angle you set without flopping around. On mine, a sliding sleeve keeps the driver straight when I need a rigid connection, and backing it off frees the head to pivot. That two-mode behavior (locked straight vs. pivoting) makes it more versatile than a simple universal joint.

Material-wise, the high-speed steel body stands up well in an impact driver. It doesn’t mushroom under hammering, and the hex shank seats positively in all the 1/4-inch quick-change chucks I’ve used.

In the field

• Sheet metal and HVAC: This is where a pivoting nut driver shines. Align a self-driller through a notch in a track, angle around a plenum, and drive with confidence. At moderate angles (5–10 degrees) the screw still starts cleanly without wandering, and the socket stays planted on the head.
• Electrical and MEP brackets: Driving hex-head fasteners in corner strut or close to conduits is far less awkward. I can keep the driver body out of the way while maintaining a straight line of force on the fastener.
• Roofing and siding repairs: The 20-degree pivot helps when a panel profile blocks straight access. It’s no substitute for a right-angle attachment in extreme cases, but it bridges the gap in most everyday situations.

One small benefit I didn’t expect: when I need to drive a screw slightly off-axis to meet a misaligned hole, that bit of flex lets me “find the thread” without cross-loading the fastener. It’s a more forgiving setup than a rigid socket.

Magnet strength and fastener control

The magnet is strong enough to hold standard 5/16-inch hex washer head screws securely while the driver is vertical or overhead. On new screws with clean coatings, it’s essentially hands-free: I can stab the screw, lift into position, and drive with one hand. On older fasteners with dirt or paint buildup, it still holds but you’ll want to support the screw when positioning at sharp angles.

Like any magnetic driver, it attracts chips. The magnet grabs steel shavings and swarf from self-drillers. I make a point of tapping it clean against my glove or a scrap after a handful of drives. The recessed-corner geometry helps by shaving less in the first place, which means fewer chips to manage and less mess inside the socket.

Durability under impact

Impact work punishes accessories, and this one has held up better than most pivoting designs I’ve used. The pivot pin hasn’t loosened; there’s no rattle or lateral play beyond what’s necessary for the pivot arc. The socket walls are still crisp, and the magnet hasn’t weakened noticeably.

I do treat it like an accessory, not a demolition tool. I avoid side-loading it at full angle while buried in a stubborn fastener—backing off the angle before breaking torque feels kinder to the joint and has kept mine tighter over time. Used this way, I expect the service life to be measured in years, not months.

Ergonomics and control

The balance of the driver is good; there’s enough mass at the head to damp vibration without making the tool nose-heavy in a compact impact. The yellow sleeve provides a decent grip for guiding the angle. In fast work, I can set the pivot by feel, lock it straight if needed, and drive without hunting for a control.

The 3-1/2-inch length is a practical middle ground. It keeps the head visible in most situations and clears the nose of the impact driver, but doesn’t turn the tool into a wand. If you routinely need more reach past insulation or into deep channels, you may want a longer version or an extension—this one is designed for everyday clearance, not extreme reach.

Compatibility and specs that matter

• Tip size: 5/16 in
• Shank: 1/4 in hex, quick-change compatible
• Length: 3-1/2 in
• Material: High-speed steel
• Special feature: Magnetic
• Pivot range: up to 20 degrees
• Intended use: Impact drivers and wrenches

I’ve run it on compact and mid-torque impact drivers without issue. In a standard drill/driver, it behaves fine too, though the benefit of the pivot is most obvious under impact where you can keep your wrist neutral and let the driver do the work.

Limitations and trade-offs

• Wobble at full angle: At or near the 20-degree limit, the outer orbit of the socket is wider, and high RPMs can translate into a slight wobble. Throttle back for cleaner starts when you’re maxing-out the angle.
• Single size: This one’s 5/16-inch only. If your work calls for 1/4-inch or 3/8-inch hex heads regularly, you’ll need additional sizes. That’s not a flaw, just worth planning for.
• Magnet maintenance: The magnet’s strength is an asset, but it does require regular cleaning, especially when drilling into galvanized material. A quick wipe keeps engagement crisp.
• Depth and clearance: The socket depth is fine for standard hex washer head screws. For long bolts or tall nuts, a dedicated deep socket may be better.

None of these are dealbreakers, but they define where the pivoting nut driver excels and where another accessory might be more appropriate.

Who will benefit most

• HVAC techs and sheet metal installers who are constantly working around flanges, hangers, and tight corners
• Electrical/low-voltage installers driving hex-head fasteners near obstructions
• Service techs who value faster setup in awkward spaces without swapping to bulky right-angle attachments

If your work is mostly open framing with straight-line access, you’ll still appreciate the magnet and flat-driving geometry, but the pivot becomes a nice-to-have rather than a must-have.

Alternatives and complements

• Right-angle attachments: Better for extreme clearance but larger, heavier, and slower to use. I treat the pivoting nut driver as the everyday solution, reserving right-angle gear for the rare jobs that truly require it.
• Fixed magnetic nut drivers: Slightly more rigid and sometimes a hair better for precision at high speed, but they can’t solve the access problems this one does.
• Bit holders with universal joints: More flexible but typically sloppier and less durable under impact. The controlled 20-degree arc here is a meaningful upgrade.

The bottom line

The pivoting nut driver hits a very useful balance: compact, durable in impact use, strong magnetic hold, and a controlled pivot that solves real access problems without turning the tool into a noodle. The recessed-corner design reduces shaving and preserves fastener heads, which improves both cleanliness and long-term hardware integrity.

Recommendation: I recommend this tool. If you regularly drive 5/16-inch hex head fasteners—especially in HVAC, electrical, or service work where obstructions are common—the combination of a lockable straight mode, up to 20 degrees of pivot, and reliable magnet retention meaningfully speeds up the job and reduces frustration. It won’t replace every accessory in your pouch, but it will earn a permanent spot in your impact kit and pay for itself in time saved and cleaner, more controlled fastening.
