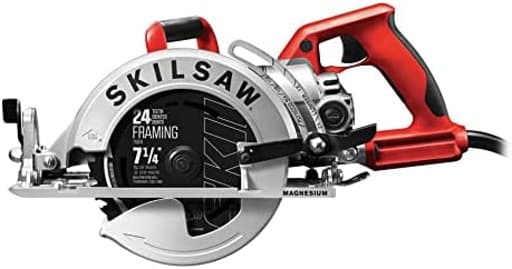

Skil 7-1/4 IN. Lightweight Worm Drive Saw

Why this worm drive earns a spot on my sawhorses

I reach for a worm drive when I need torque, tracking, and a clear view of the cut line. This Skilsaw hits those marks while trimming weight to a manageable 11.5 lb. After weeks of framing, ripping sheet goods, and a few denser-material experiments, it’s clear Skilsaw has refined the essentials: power, visibility, and durability—without loading up on gimmicks.

Build and ergonomics

Magnesium where it matters (motor housing and foot) keeps the weight down and the rigidity up. The balance is classic worm drive: nose-forward, blade-left, and easy to steer along a line. The front pommel and rear handle are sized right and feel secure even with gloves. The rubber overmold isn’t squishy; it stays grippy when dusty and doesn’t feel slick if you’re cutting wet lumber.

The shoe is flat and true on my granite plate, with no wobble. It glides over plywood without digging in, and the edges are crisp enough to ride a straightedge without catching. The rafter hook is stout and sized for joists and sawhorses, a small feature that pays off every time you need a hand free.

At 11.5 lb, it’s light for a worm drive, but it’s still a worm drive. If you’re coming from a compact sidewinder, expect a learning curve and a workout; if you’re used to Western framing saws, the weight/balance feels right.

Power and cut quality

The 15‑amp Dual‑Field motor spins up to around 5,300 RPM and feeds the worm gears with a steady, confident pull. Translation: it doesn’t bog easily. I pushed it through wet PT 2x, LVL, and maple butcher block with an appropriate blade, and the saw just dug in and tracked. Torque is where this design shines; you can feel it when you plunge, climb a knot, or finish a rip.

Cut quality is excellent with the included 24T carbide framing blade for typical construction tasks. Swap to a 40T or 60T if you’re doing finish work on plywood or hardwoods—the motor and gearing are plenty smooth for cleaner results. The anti‑snag lower guard is well tuned; it didn’t hang up on thin offcuts or shallow trims, which often trips up lesser guards.

Noise is part of the worm‑drive equation, but the oil‑lubricated gears keep the whine lower than older dry-gear designs. Vibration is minimal, even when plunging.

Visibility and accuracy

Blade-left orientation gives right‑handed users a clear line of sight. I can watch the teeth kiss the pencil line without contorting my wrist, which makes freehand rips on narrow stock surprisingly precise. The sight window is generous, the notch on the shoe is accurate at both 90° and 45°, and the shoe’s front edge lines up predictably with the blade kerf once you learn it.

Where this really helps is in repeatability without a fence: shaving 1/16–1/8 in. off an edge or notching sheet goods becomes faster and cleaner because you can see what you’re doing. For left‑handed users who prefer a right‑blade layout, try before you buy; it’s usable, but not as naturally intuitive.

Depth and bevel adjustments

Skilsaw’s Cut‑Ready depth system is simple but effective: quick gauges on the shoe help you set common depths without a tape. The main depth lever locks positively and doesn’t drift. Maximum cut at 90° is 2‑3/8 in., plenty for 2x lumber and many composites. At 45°, you get 1‑15/16 in., which covers most framing needs.

Bevel capacity is a generous 53°. The bevel scale is legible, and the lever has enough leverage to lock tight without over-torquing. On my unit, bevel travel is smooth from 0–45°, and there’s no side play that would throw off miters. I always check squareness out of the box; this one came dead on at 90° and 45°, and stayed put after transport and use.

Corded practicality

Corded isn’t as fashionable, but it’s still the most consistent power source for all‑day cutting. The 8‑foot cord is adequate, though I’d love a few more feet. I run a high‑quality 12‑gauge extension and the motor never feels starved. There’s no electric brake, so the blade spins down naturally—plan for that if you’re used to cordless brakes.

Dust and debris control

There’s no dust blower, and with the blade-left layout you’ll occasionally get sawdust on the sight line. In framing, that’s a small issue; on finish cuts, blow or brush between passes. The guard geometry directs most chips down and away, but if you’re working indoors, consider an auxiliary deflector or vacuum assist—this saw doesn’t have integrated dust collection.

Blade changes and maintenance

Blade swaps are fast thanks to a crisp spindle lock and accessible arbor nut. The saw uses a diamond arbor, so framing blades with a diamond knockout are the norm. The included multi‑function wrench handles the basics, but I prefer a box wrench for more positive engagement.

Worm drives require oil. This one ships filled; check the level periodically and top off with the recommended worm‑drive gear oil. It’s a two‑minute job and it’s the reason these saws live long, hard lives. Brushes are accessible if you ever need to service them. As with any pro saw, a quick alignment check after a few weeks of use is smart practice.

Real‑world applications

• Framing and deck work: Fast, straight rips in wet PT and KD studs. The torque keeps the cut moving when sidewinders would stall.
• Sheet goods: With a fine‑tooth blade and a guide, it delivers clean edges. The shoe is stiff enough to ride a track or straightedge without chatter.
• Dense materials: With a proper diamond or specialty blade, the motor and gearing handle non‑wood tasks (cement board, some stone) well. If water cooling is necessary, use a GFCI and keep the tool and connections dry—common sense safety applies.

Quirks and trade‑offs

• No brake: The blade coasts. I’d welcome an electric brake on future iterations.
• No dust blower: Visibility is great overall, but debris can obscure the line on long rips in dry stock.
• Bevel friction: Fresh from the box, the bevel lock can feel tight. A tiny touch of dry lube on the pivot points (not the clamping surfaces) made mine glide without sacrificing hold.
• Weight vs. sidewinders: At 11.5 lb it’s light for a worm drive, but still heavier than many sidewinders. If overhead work is your day job, you’ll feel it.

Durability impressions

Between the magnesium construction, anti‑snag guard, and oil‑bath worm gears, this saw feels ready for jobsite abuse. It rides in and out of the truck without losing alignment, and the foot hasn’t picked up dents from the inevitable drops onto stickers and studs. The motor runs cool under load—Skilsaw’s Dual‑Field design seems to keep airflow moving. As always, longevity will depend on keeping oil in the gearbox and not forcing the saw through pinched kerfs.

Who it’s for

• Carpenters and framers who value line‑of‑sight accuracy and torque.
• Remodelers needing a durable, corded workhorse that won’t bog in dense stock.
• Serious DIYers who want professional cut quality and can live with corded limitations.

If you live on a miter saw and a track saw for fine work, a sidewinder might be lighter and handier. But for general construction and demanding cuts, this worm drive has a clear edge.

Recommendation

I recommend this Skilsaw worm drive for pros and committed DIYers who prioritize torque, tracking, and durability. It delivers excellent cut accuracy, a clear view of the blade, strong bevel and depth controls, and a sturdy magnesium build at a reasonable weight for a worm drive. The trade‑offs—no electric brake, no dust blower, and cord management—are understandable in a saw designed for reliability and power. If you keep the gearbox oiled and pair it with the right blade for the job, this saw will reward you with smooth, straight cuts and long service life.
