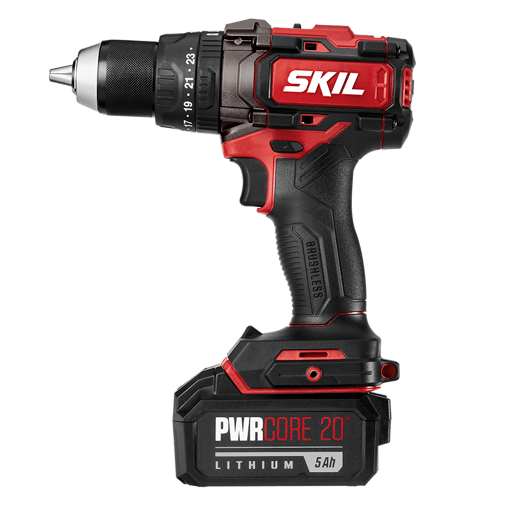

Skil Brushless 20V 1/2 IN. Heavy Duty Hammer Drill Kit

Brushless 20V 1/2 IN. Heavy Duty Hammer Drill Kit

Features

  • Includes 5.0Ah lithium battery and automatic rapid charger
  • Three operating modes: hammer drill, drill, and driver
  • Brushless (digital) motor
  • 24‑position clutch
  • 1/2 in. single‑sleeve keyless metal ratcheting chuck for quick bit changes
  • Integrated LED light with pre‑light and after‑glow
  • Variable speed trigger
  • Side assistant handle, belt clip, and double‑ended PH2 bit included
  • Rapid charge capability (5‑minute boost, full charge in 60 minutes with PWRJUMP charger)
  • Battery cells wrapped with cooling material to help improve run time and lifespan

Specifications

Chuck Capacity 1/2 IN.
Chuck Type Keyless metal ratcheting chuck (single‑sleeve)
Clutch Settings 24+1+1
Led Light Yes (pre‑light and after‑glow)
Max Impact Rate 0–8800 / 0–32000 (specified values from manufacturer)
No‑Load Speed 0–550 / 0–2000 rpm
Net Weight (Excl. Battery) 3.28 lbs (1.49 kg)
Variable Speed Yes
Voltage 20V
Battery Included PWRCORE 20 5.0Ah lithium battery
Charger Automatic PWRJUMP charger (rapid charge feature)
What's Included Heavy Duty Hammer Drill; 5.0Ah Battery; PWR JUMP Charger; Belt Clip; Double‑ended PH2 bit; Side Handle

Cordless 3‑in‑1 hammer drill for drilling and driving in masonry and common construction materials. The tool switches between hammer drill, standard drill, and driver modes. The kit includes a rechargeable lithium battery and an automatic rapid charger. A side handle and belt clip are provided for control and convenience.

Model Number: HD5295-1A

Skil Brushless 20V 1/2 IN. Heavy Duty Hammer Drill Kit Review

4.7 out of 5

First impressions and setup

Out of the box, the Skil 20V hammer drill feels like a do‑it‑all cordless workhorse meant to live on a belt or in a truck, not on a shelf. The kit is straightforward: the drill, a 5.0Ah battery, the rapid charger, a side handle, belt clip, and a double‑ended PH2 bit. There’s no case or bag included, which I noticed immediately—more on that later—but setup is otherwise quick. The single‑sleeve metal ratcheting chuck opens wide, the side handle clamps on securely, and the battery slides home with a solid click.

Skil’s brushless motor is the headline feature, and it shows in the drill’s response. The trigger is easy to feather with excellent low‑speed control, and the two gears give you a meaningful spread: a slow, torquey low range and a fast, breezy high range. Factory specs rate it at 0–550/0–2000 rpm, with hammer impacts at 0–8800/0–32000 bpm, which matches how it behaves under load.

Build and ergonomics

This is a compact, modern jobsite drill—plenty of plastic in the housing, but the right parts are metal. The 1/2‑inch keyless ratcheting chuck is metal and inspires confidence; it tightens with a crisp click and held smooth‑shank bits without wandering. The side handle is a must for masonry work and installs easily, though it’s a basic clamp design without a depth rod.

Bare weight is listed at 3.28 lbs; with the included 5.0Ah pack it’s not ultralight, but the balance is good and doesn’t feel top‑heavy. The grip is comfortable and the rubber overmold keeps it planted in the hand, even with gloves. I appreciated the belt clip for quick holstering while moving ladders or grabbing anchors.

Three modes, one tool

The mode selector makes the drill’s intent clear. You get:
- Drill mode for wood and metal
- Driver mode with a 24‑position clutch
- Hammer mode for masonry

Switching is positive and fast, and there’s no mystery about what you’re in. The clutch ring clicks distinctly through the 24 settings, and clutch breakaway is consistent—helpful when running mixed fasteners where you don’t want to bury the head.

Wood and metal performance

In wood, the drill is strong in low gear and pleasantly quick in high. I bored clean holes with spade bits and augers in studs and treated 2x without drama in low gear, and flipped to high for clean pilot holes and countersinks. For metal, with a quality cobalt bit and cutting fluid, the low range maintained steady, controllable torque through angle iron and aluminum plate. Trigger modulation is excellent; it’s easy to ease into a hole and avoid skating.

Bit changes are fast and reliable. The ratcheting chuck holds hex‑shank and round‑shank bits evenly, and my test sample had minimal runout—good enough for clean, straight drilling with longer bits.

Masonry: capable within its class

Hammer mode is where the side handle earns its keep. I used the drill to set Tapcon anchors in cured concrete block and brick with carbide bits up to 3/8 inch. In low gear, it kept a steady cadence and cleared dust well enough that hole times were respectable for a cordless hammer drill in this category. High gear is faster in softer masonry but can lag in dense concrete; I generally stayed in low for consistency.

If your day is primarily boring larger holes in hard concrete or drilling overhead into dense slabs, an SDS‑Plus rotary hammer is the better choice. But for mixed work—hanging ledger boards, mounting electrical boxes, anchoring sill plates—this drill is absolutely serviceable and, for many users, all you need on the truck.

Driving screws and fasteners

As a driver, the Skil 20V hammer drill is confidence‑inspiring. The 24‑position clutch gives fine control over smaller screws, and the low gear has the grunt to sink 3‑inch construction screws into framing without cam‑out, provided you use quality bits. The variable speed trigger is smooth, with a predictable ramp that avoids that “on/off” feeling some drills have. I like that the clutch is bypassed in drill/hammer modes and engages only in driver mode—simple and predictable.

Battery, charging, and heat management

The included 5.0Ah pack is a smart choice here. It gives the drill meaningful run time, even in hammer mode, and Skil’s rapid charger is genuinely useful in the field. The 5‑minute “boost” top‑off got me back to work more than once, and a full charge in roughly an hour reduces the need for a second battery on smaller jobs.

Skil wraps the cells in a cooling material, and I did notice the pack stayed a touch cooler than some competing packs during repeated hammer drilling. I never hit a thermal cutout in my masonry tests; after a string of holes the pack was warm, not hot, and recovered quickly while I laid out the next set.

Light and controls

The LED is better than average. It comes on before the chuck spins and lingers after you release the trigger, which is great for aligning fasteners or double‑checking hole location in crawlspaces or closets. It illuminates the work area without a hard hot spot directly in the center, and the pre‑light/after‑glow behavior makes it genuinely useful rather than a gimmick.

Switches and selectors feel positive. The two‑speed gear selector slides firmly without accidental shifts, and the mode selector ring doesn’t wander. Nothing on my test unit felt loose or vague.

Durability and maintenance

After a mix of framing, hardware installation, and masonry, the drill shows normal scuffs but no meaningful wear. The chuck still ratchets tightly, the gearbox hasn’t developed any noise, and the side handle clamp hasn’t stretched. As with any hammer drill, a quick wipe‑down and occasional compressed air around the vents helps keep dust from packing in. Stick to sharp masonry bits and clear dust frequently for the best hammer drilling speed and to keep heat down.

What could be better

  • No case or bag in the kit. For a “kit,” storage would be welcome.
  • The housing is plastic‑forward. The important interfaces are metal, but this isn’t a tank. It’s jobsite‑ready, just not bombproof.
  • Hammer mode is capable but not a rotary hammer replacement. Larger diameter holes in hard concrete will be slow.
  • The side handle is basic. It works fine, but a depth stop would improve repeatability for anchors.

None of these are deal‑breakers, but they’re worth noting depending on your expectations and the work you do.

Value and who it’s for

This drill lands in a sweet spot for serious DIYers, tradespeople who want a solid secondary/compact hammer drill, and anyone building out a 20V platform with one tool that covers drilling, driving, and occasional masonry. The brushless motor, 1/2‑inch metal ratcheting chuck, and the inclusion of a 5.0Ah battery and rapid charger make the kit feel complete—even if the lack of a case means you’ll want to add a bag.

If you live in wood and metal with occasional trips into brick and block, this tool is easy to recommend. If you’re anchoring steel plates into 4,000‑psi concrete all day, step up to SDS‑Plus and keep this Skil as a versatile backup/driver.

Recommendation

I recommend the Skil 20V hammer drill for users who want a balanced, capable drill/driver that can also handle masonry without moving to a different tool. It’s fast in wood and metal, consistent as a driver, and competent in brick and concrete block. The brushless motor, metal ratcheting chuck, and thoughtful LED behavior add up to a drill that’s easy to use well. The included 5.0Ah battery and rapid charger minimize downtime, and the side handle makes hammer mode manageable.

The downsides—no case, a largely plastic housing, and hammer performance that tops out short of a rotary hammer—are reasonable tradeoffs for the price and feature set. For most mixed‑material users, this is a dependable, efficient choice that earns a place on the belt.


Project Ideas

Business

Masonry Mounting Micro-Service

Offer a flat-rate local service to mount TVs, heavy shelves, mirrors, railings, and planters to brick, stone, or concrete. Market the speed and cleanliness of your cordless setup, using hammer mode for anchors and the 24-position clutch for precise fastening. The rapid charger enables multiple same-day appointments with minimal downtime.


Security and Lighting Installs

Specialize in installing doorbell cams, security cameras, motion lights, and house-number plaques on masonry facades. The LED pre-light is handy for accurate hole placement under eaves, and the brushless motor handles repetitive drilling without overheating. Bundle wire concealing, weatherproof junction boxes, and post-install testing.


Retail Fixture Anchoring for Pop-Ups

Provide quick-turn anchoring of clothing racks, shelving, and signage into brick or concrete for pop-up shops and boutique renovations. The tool’s keyless metal chuck streamlines bit changes during layout, and the side handle adds control for larger diameter anchors. Offer after-hours service to minimize store downtime.


Rental Property Safety Upgrades

Pitch landlords and Airbnb hosts on fast installs of grab bars, stair handrails, doorstops, and baby gates into tile, brick, or concrete. Use the clutch to prevent over-torque on hardware, and hammer mode to ensure secure anchors in masonry. Package options include assessment, hardware sourcing, installation, and documentation photos.


Facade Decor and Event Mounting

Set temporary or semi-permanent anchor points for holiday decor, banners, or awnings on brick and block. Offer installation and safe removal, plugging anchor holes with color-matched mortar when needed. The variable speed and LED help with precise hole placement on architectural features, and rapid charging keeps large installs on schedule.

Creative

River Rock Wind Chimes / Garden Totems

Use hammer mode with a masonry bit to drill clean holes through river stones and pebbles, then thread them with stainless wire or paracord to create wind chimes or stacked garden totems. The side handle and variable speed help maintain control on hard stone, while the keyless ratcheting chuck makes quick bit swaps between pilot and final-size bits. Use the LED pre-light when aligning holes in dim garages or evening workshops.


Brick Wall Herb Garden

Mount a series of metal or cedar planter boxes to an exterior brick wall using masonry anchors. Switch from hammer drill mode for the anchor holes to driver mode for screws, dialing in the 24-position clutch to avoid overdriving. The compact 20V brushless motor and LED after-glow make it easy to work neatly along a wall without dragging cords.


Industrial Pipe Shelving on Masonry

Build steel-pipe-and-wood shelves and securely anchor the flanges into a concrete or brick wall. Use hammer mode to drill accurate tapcon pilot holes, then switch to driver mode to set fasteners. The single-sleeve metal chuck speeds bit changes as you alternate between masonry and driver bits, and the side handle provides stability for large holes.


Outdoor Movie Screen or Shade Sail Mounts

Install removable eyebolts or cleats into block or brick to hang a fabric projector screen or shade sail. Hammer mode creates durable anchor points; driver mode sets hardware cleanly with a low clutch setting to protect threads. Rapid charging keeps the project moving even if you’re testing multiple attachment points.


Concrete Step Lighting Brackets

Add low-voltage path lights to concrete steps by drilling precise anchor holes for small brackets. The variable speed trigger helps prevent spalling at edges, while the LED light helps align holes at dusk for accurate placement. Finish by switching to driver mode to fasten stainless screws without stripping.
