Bosch Quick Change Spade Bit Extension (6 in)

Why I reached for this extension

I spend a lot of time drilling through studs, subfloors, and cabinet backs, and an extension lives on my drill more often than not. The Bosch spade bit extension has become the one I toss in the pouch when I need extra reach without sacrificing control. At 6 inches long, with a 1/4-inch hex shank and a push-to-lock quick-change head, it hits a practical sweet spot for rough carpentry, electrical rough-in, and general remodeling where you’re threading holes through wood in tight spots.

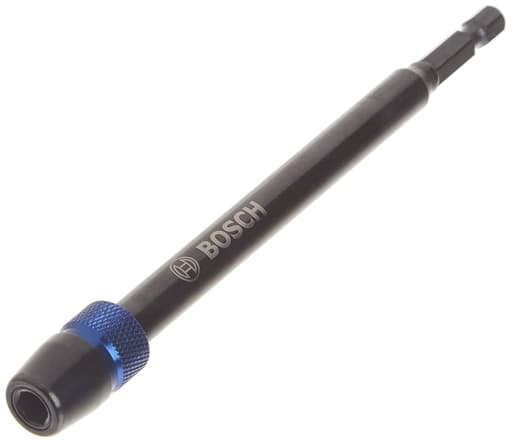

Build and design

The extension is straightforward: a steel shaft with a 1/4-inch hex shank for your drill or driver on one end and a quick-change receiver on the other. The receiver is designed for 1/4-inch hex bits that have a power groove—the small milled notch near the base of many spade bits. That groove matters. It’s what allows the locking mechanism to bite and resist the twisting forces that spade bits generate when they grab.

Tolerances are good. The collar action is crisp, and the detent locks positively. There’s minimal slop at the joint when a bit is seated correctly. A 6-inch extension might sound modest, but in practice it’s long enough to get beyond studs, reach across cabinet depths, or clear a drill chuck in cramped cavities—without making the setup feel whippy.

Quick-change mechanism

The reason I like this extension is the one-handed insertion. You push a compatible bit straight in and it clicks home—no need to retract the collar to load. To remove, pull the collar and the bit springs free. In tight spots or when I’m swapping between a 3/4-inch and 1-inch spade repeatedly, that matters. The mechanism also doesn’t require a second tool to secure or loosen, which keeps the workflow quick and simple on a ladder or under a sink.

One caveat: the one-handed feature only works correctly with bits that have the power groove. If your spade bits are older or bargain-bin hexes without the groove, the lock won’t engage as intended. You can still insert them, but retention and torque resistance may be compromised. For full performance, pair the extension with power-groove spade bits.

In use: reach, control, and torque

I ran this extension with standard spade bits from 3/8 inch up to 1-1/4 inches through SPF studs, laminated fir, and cabinet-grade plywood. With sensible feed pressure and a modern drill/driver, it stayed locked and didn’t suffer from mid-hole slippage. The 6-inch reach gets the chuck away from obstructions and keeps my knuckles out of harm’s way. It’s also short enough that I didn’t fight the “flywheel” effect some longer extensions develop with larger bits.

Spade bits can be grabby, especially at the exit of a hole or when hitting knots. The extension handled the torsional hit without unlocking or scarring the collar. If a bit bound, the clutch in the drill tripped long before the extension became the weak link. I did a few holes with a compact impact driver at low speed as a sanity check; no issues arose, though for heavy, continuous impact work I stick to a drill/driver unless a manufacturer explicitly rates the accessory for impacts.

Concentricity and wobble

Every extension introduces another joint, and with that comes the potential for runout. With short bits (6-inch or less), concentricity was very good—no noticeable wobble beyond what the bit itself produced. With longer spade bits or unbalanced heads, you’ll feel some oscillation, but it’s predictable and manageable. The key is to seat the bit fully until the shoulder meets the receiver and verify the lock snapped into the power groove. If you stop short, you’ll get chatter and premature wear.

For cleaner holes in visible work, I prefer to use a self-feed spade or a pilot-point bit; the extension didn’t materially change surface tear-out on plywood—your bit choice and technique will dominate there.

Durability and maintenance

After weeks of jobsite use—bag tosses, truck rides, and plenty of dust—the mechanism still locks smoothly. The steel body resists dings and hasn’t developed burrs at the hex. I make a habit of blasting compressed air into the receiver and adding a tiny drop of light oil to the collar a couple of times a month. That keeps wood dust from packing into the detent and preserves the one-handed snap-in feel.

I did not experience any galling or visible wear in the power groove area on my bits, which indicates the locking ball and collar are properly hardened and finished. Like any quick-change accessory, grit is the enemy. If the collar action ever feels gritty, clean it before forcing a change.

Compatibility notes

• Requires 1/4-inch hex bits with a power groove for best results.
• Works with common spade bits; also holds other 1/4-inch hex accessories that include the groove (some pilot bits and drivers), but I primarily used it for wood spades.
• Fits drills and drivers with standard 1/4-inch hex chucks or 3-jaw chucks. I mostly ran it in a 3-jaw chuck for maximum stability.
• Not intended for round-shank or SDS bits.

If you’ve standardized on spade bits without grooves, consider swapping to a compatible set or choosing an extension that uses a different retention method. The design choice here is intentional: the groove-and-ball lock resists torque better than a plain magnet or a simple detent.

Where the 6-inch length shines—and where it doesn’t

Six inches is a sweet spot for control. It’s long enough to reach through a double plate or across a cabinet carcass, and short enough to maintain good feed control with large spade diameters. For deep-hole work—running a wire path through multiple studs or drilling through a thick masonry sill—you’ll want a longer extension or long shank bits. This isn’t a one-size-fits-all reach solution; it’s a highly useful middle length that covers most interior carpentry and light MEP tasks.

Tips for best results

• Use the right bits: choose spade bits with a power groove to engage the lock fully.
• Seat the bit completely: push until you feel and hear the click; then tug to confirm lock.
• Let the drill’s clutch work: if a bit binds, avoid muscling through; back out, clear chips, and continue.
• Keep the collar clean: blow out dust and add a drop of oil periodically.
• Mark depth on the bit: the extension can obstruct sightlines; a piece of tape or a marker line helps.

Value and alternatives

This extension does exactly what it claims with minimal fuss. There are longer universal extensions and some that rely on set screws or collars you must retract to insert the bit. Those work, but they slow down changes and don’t always resist torque as well. The Bosch approach—push-to-lock on a power-groove shank—strikes a good balance of speed and security. If you need 12 inches or more on a regular basis, look for a longer model; if your work is mostly residential interiors, this length is more nimble and less fatiguing.

The bottom line

The Bosch spade bit extension is a compact, well-executed accessory that improves reach without introducing headaches. It locks fast, holds tight under real drilling loads, and maintains decent concentricity with properly seated bits. The main limitation is compatibility: to get the most out of it, use 1/4-inch hex bits with a power groove. If you’re already there—or willing to standardize—this extension becomes an easy add to the kit.

Recommendation: I recommend this extension for carpenters, electricians, remodelers, and DIYers who frequently drill wood in tight quarters and want quick, tool-free bit changes. It’s reliable, fast to use, and the 6-inch length offers a good balance of reach and control. If you routinely need greater reach or rely on non-grooved bits, consider a different format or a longer extension; otherwise, this one earns its spot in the pouch.
