Why I added a locking cap to my fuel fill

I needed a way to keep uninvited hands off my heating oil fill pipe and to stop “surprise” refills I hadn’t authorized. A welded gate and cameras deter a lot, but the easiest point of access was still the cap on the fill neck. The FSS 750 locking cap promised simple installation, a free‑spinning lock that can’t be backed off when secured, and weather protection without turning the fill into a maintenance headache. After a season of use on a quick‑fill (NY‑style) heating oil tank, here’s how it actually performs.

Build and design

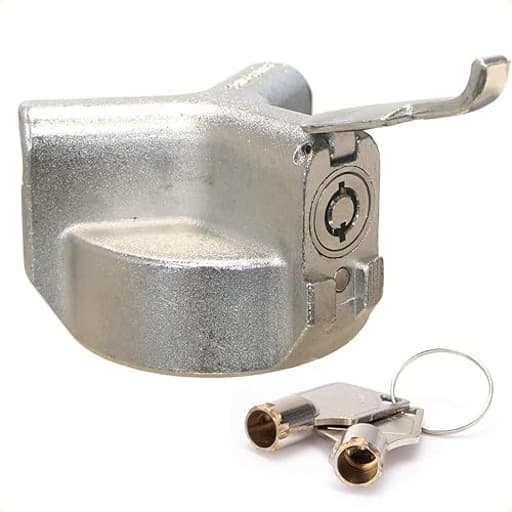

The FSS 750 is a non‑vented, heavy, zinc‑plated cap with a wide, grippy knurled rim and a positive‑sealing gasket. The core of the design is a “free‑spinning” outer shell that rotates freely when the lock is engaged, preventing the threads from unwinding. That’s paired with an internal cam/drive that only couples the shell to the threaded insert when you unlock it.

The keyway sits under a spring‑hinged, magnetically retained flap that keeps out rain, snow, and grit. It sounds trivial, but that cover is a big deal in winter—mine stayed free of freeze‑thaw crud. The gasket is thick and seats squarely against the fill neck; it’s not vented, by design, so your tank must have its own vent piping.

You can order the cap keyed alike or keyed differently. I opted to key alike across two tanks to keep the key ring manageable. The locks are conventional pin tumbler cores—nothing exotic—but the deterrence here is the free‑spinning body, not high‑security keying.

Installation and setup

Threading can be the stumbling block with any fuel cap. The FSS 750 is the quick‑fill thread pattern common on many Northeast heating oil installations and some commercial above‑ground tanks. Before ordering, I confirmed the thread style and diameter on my fill neck; if you’re unsure, double‑check with your installer or the manufacturer. The cap I received threaded directly—no adapter required.

Here’s the procedure that gave me a reliable lockup:

1) With the key in the 6 o’clock (unlocked) position, thread the cap onto the fill neck by hand until the gasket contacts.
2) Continue turning by hand until the gasket compresses firmly. You want it snug, not gorilla‑tight. If you need extra leverage, use a strap wrench, not a pipe wrench.
3) Turn the key to the 12 o’clock (locked) position. You’ll feel the inner drive disengage.
4) Test by trying to unscrew the cap. The shell should spin freely without backing off.

Unlocking is the reverse, with one tip: turn the key back to unlocked and give the cap a slight clockwise “nudge” while applying downward pressure to help the inner drive re‑engage. Then turn counterclockwise to remove. If you only half‑seated the cap before locking, it can feel like it’s catching and slipping during removal—fully seating before locking largely eliminates that.

Day‑to‑day use

Once I learned the lock/unlock feel, the FSS 750 became a non‑event. The gasket seals well; I haven’t had seepage or smell, and there’s no rattling. The free‑spinning shell does exactly what it should—if you try to twist it off without the key, it just rotates. It also stopped an attempted top‑off delivery: the driver couldn’t remove the cap, left a door hanger, and called for authorization. That alone justified the purchase.

Cold weather is often where locks go to die. The hinged cover and zinc finish have held up, and I’ve kept the cylinder moving with an occasional drop of a lock‑safe lubricant (dry PTFE or a graphite‑based product; avoid flooding it with oil). A tiny smear of silicone grease on the gasket helps it seat and deters sticking in freezing rain.

Security: what it does and doesn’t do

No cap can make an exposed fill pipe invulnerable. A determined thief with time, a pipe wrench on the nipple, or a saw can get where they want to go. The FSS 750 meaningfully raises the effort required and frustrates casual siphoning, opportunistic tampering, and unauthorized deliveries—the most common, low‑effort abuses. The free‑spinning design prevents the easy win of simply unscrewing a standard cap. In practice, deterrence and delay are what you’re buying, and here the cap is effective.

If you’re protecting a high‑value tank in a remote area, treat the FSS 750 as one layer in a stack: lighting, cameras, obstructed vehicle access, and a secured vent line all matter. For most homes and small commercial sites, it’s a smart and visible “speed bump” that changes the calculus for opportunists.

Compatibility and gotchas

A few caveats from my use and testing:

• Non‑vented by design. Do not use this on tanks that rely on a vented cap. Your tank must have a separate vent line sized and installed to code. A sealed cap on a non‑vented system can create vacuum issues and damage equipment.
• Thread type matters. Quick‑fill threads are common, but not universal. Don’t force a mismatch; it’s easy to cross‑thread soft steel necks. If your fill neck needs an adapter, arrange that before installation.
• Locking technique has a learning curve. If you lock the cap without fully seating it, unlocking can feel like it’s “slipping.” Seat it, lock it, then test for free spin.
• Don’t overtighten. The gasket doesn’t need to be crushed. Hand‑snug plus a gentle assist with a strap wrench is plenty. Excessive torque creates headaches later.
• Keep the cover closed. The weather flap works, but only if you actually flip it down. It’s easy to forget on a sunny day.

Maintenance

The cap is largely set‑and‑forget, but a little care extends its life:

• Periodically clean and dry the keyway and apply a small amount of lock‑safe lubricant.
• Wipe the gasket and apply a thin film of silicone grease every few months.
• Rinse off road salt or fertilizer dust if your tank lives near traffic or landscaping operations.
• In icing conditions, avoid pouring deicer into the keyway. Warm the key and insert gently, or use a lock de‑icer sparingly.

Value and alternatives

There are cheaper locking caps, but most rely on small tabs or simple set‑screws that can be defeated in seconds. The FSS 750’s free‑spinning shell is a better approach for exposed fill points because it resists the most common attack: unscrewing. For fleet or multi‑site use, the keyed‑alike option saves sanity. If your tank requires a vented cap or uses a different thread standard, this isn’t the right tool; choose a vented, locking alternative matched to your fill neck.

Who it’s for

• Homeowners with quick‑fill heating oil tanks who want to prevent unauthorized deliveries or casual siphoning.
• Small commercial sites with above‑ground diesel/kerosene tanks that already have independent venting.
• Operators managing multiple tanks who want keyed‑alike convenience.

Not a fit for anyone with a non‑vented tank cap requirement, uncertain thread compatibility, or who expects a small lock to stop a fully equipped thief.

The bottom line

The FSS 750 locking cap does the important things well: it seals, it spins freely when locked, it resists weather, and it’s straightforward to live with once you learn its feel. It won’t harden an exposed fill neck against every possible tool, but it significantly raises the bar for tampering and stops unauthorized cap removal cold. My only real cautions are to verify thread compatibility, remember that it’s non‑vented, and avoid overtightening.

Recommendation: I recommend the FSS 750 for anyone with a properly vented tank and a quick‑fill neck who wants a robust, low‑maintenance way to deter theft and unauthorized deliveries. It’s a practical upgrade that adds meaningful security without complicating routine fills, and it holds up to weather and regular use if you give it minimal care.
