Features
- Compact and lightweight design for tight spaces
- 100 in-lbs peak torque
- Spindle lock chuck for versatile usage
- Electronic clutch with 12 torque settings
- LED work surface illumination
- Extended paddle switch for comfort during use
Specifications
Chuck Type | Single Sleeve |
Chuck Size | 3/8" |
Tool Warranty | 5 Year Limited Warranty |
Power Source | Cordless |
Motor Type | Brushed |
Length | 11 in |
Weight | 2.03 lbs |
Height | 3.75 in |
Width | 1.75 in |
Voltage | 12V |
Battery System | M12 |
Maximum Rpm | 800 |
Peak Torque | 100 in-lbs |
Rpm Range | 0 - 800 |
Related Tools
Related Articles

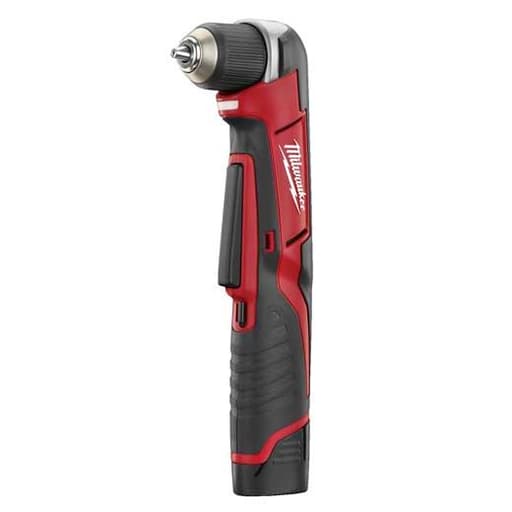

This right angle drill/driver is designed for drilling and fastening in tight spaces. It features a compact size and delivers up to 100 in-lbs of torque. The tool has a spindle lock chuck for versatility and an electronic clutch with multiple torque settings for improved control.
Model Number: 2415-21
Milwaukee Cordless Lithium-Ion 3/8” Right Angle Drill/Driver Kit Review
Navigating tight spaces during a project can be quite the challenge, and that's where Milwaukee's Cordless Lithium-Ion 3/8” Right Angle Drill/Driver Kit (model 2415-21) truly shines. This tool is designed to tackle those hard-to-reach areas where a standard drill simply won't fit, making it an indispensable addition to any tool kit, whether you're a professional or a dedicated DIYer.
Design and Build Quality
Right from the first grip, it's clear that this drill is built to last. The compact and lightweight design is immediately noticeable, making it comfortable to hold and maneuver in confined spaces. Weighing just over 2 pounds and measuring 11 inches in length, it’s surprisingly easy to handle, even for extended periods. Milwaukee has done a commendable job in balancing the tool; it feels neither too top-heavy nor too cumbersome, which is crucial when you're working in awkward positions.
The extended paddle switch is another thoughtful design element. It runs along the side of the tool, allowing you to maintain control regardless of your grip position. This feature, combined with the well-placed LED work light under the chuck, significantly improves visibility and ease of use, especially in darker corners and tight spots.
Performance
Performance-wise, the drill doesn’t disappoint. With a peak torque of 100 in-lbs and a maximum RPM of 800, it provides ample power for most light to medium-duty tasks. I found it particularly effective for drilling into wood and light metals, as well as for driving screws in tight quarters. The electronic clutch with 12 torque settings adds a layer of precision, allowing you to tailor the tool's power to the specific requirements of your task. This feature is especially useful when working with delicate materials where over-torquing can cause damage.
The spindle lock chuck is another highlight. It offers a secure grip on bits and makes changing them quick and easy. The 3/8" chuck size is versatile enough to accommodate a range of bit sizes, making the tool suitable for various applications. However, it’s worth noting that while the tool handles smaller bits and light-duty tasks exceptionally well, it does struggle with larger spade bits and heavy-duty drilling.
Battery Life
One of the standout features is the battery life. The tool is powered by Milwaukee's M12 battery system, which is known for its longevity and reliability. Even with a 1.5 Ah battery, I found that the drill could handle several hours of intermittent use before needing a recharge. This long battery life is a significant advantage, particularly when working on extended projects where frequent recharges can be a nuisance.
Usability
Using the right angle drill in real-world scenarios only reinforced its practicality. During a recent cabinet installation, the tool’s compact design allowed me to easily reach and secure screws in tight corners where a standard drill would have been impossible to use. The variable speed control is smooth and intuitive, offering precise control from 0 to 800 RPM. This is particularly useful when starting a hole or driving screws at a slower speed to avoid slipping or stripping the screw head.
The LED work light is another feature that deserves praise. It activates before the motor starts, illuminating the work area and making it easier to position the bit accurately. The tool also features rubber protrusions near the head, which protect both the tool and the surface it's being set on, adding to its durability and user-friendliness.
Drawbacks
Despite its many strengths, the tool isn't without its flaws. The forward/reverse switch's placement can be a bit awkward, especially when working in tight spaces. It’s something you can get used to, but it does require a bit of a learning curve. Additionally, while the tool performs well for most tasks, it does struggle with more demanding jobs. Drilling larger holes, particularly in harder materials, can cause the tool to bog down, requiring multiple attempts to complete the task.
Another minor issue is the lack of a battery indicator on the tool itself. While the M12 batteries do have a fuel gauge, having a visual indication on the tool would be more convenient, especially when you're in the middle of a task.
Durability and Longevity
Milwaukee is renowned for its durable tools, and this right angle drill is no exception. The 5-year limited warranty is a testament to the brand’s confidence in its build quality. Over the time I've used it, the tool has held up well, showing no signs of wear or performance degradation. However, as with any tool, its longevity will ultimately depend on the frequency and intensity of use.
Final Thoughts
In conclusion, Milwaukee's Cordless Lithium-Ion 3/8” Right Angle Drill/Driver Kit is a valuable tool for anyone who frequently works in confined spaces. Its compact design, combined with impressive power and long battery life, makes it a practical choice for both professionals and serious DIY enthusiasts. While it does have some limitations, particularly with more demanding tasks, its overall performance and build quality make it a worthy addition to any tool collection.
I would recommend this tool for those who need a reliable and efficient solution for tight-space drilling and driving. Its strengths far outweigh its minor shortcomings, making it a smart investment for a wide range of applications.
