Features
- Produces cULus Classified crimps when used with a compatible compact crimper and approved connectors
- Industry‑standard color coding to distinguish die sizes
- Laser‑etched markings for die identification
- Imprints wire size onto connector after crimp completion
- Connectors and crimper sold separately
Specifications
| Opt Sku | DW-DCE31002AL |
| Mpn | DCE31002AL |
| Upc/Gtin | 885911822206 |
| Product Type | Wire & Cable Crimping Dies |
| Shipping Weight | 0.12 |
| Warranty | Not eligible for limited warranty |
Related Tools
Related Articles

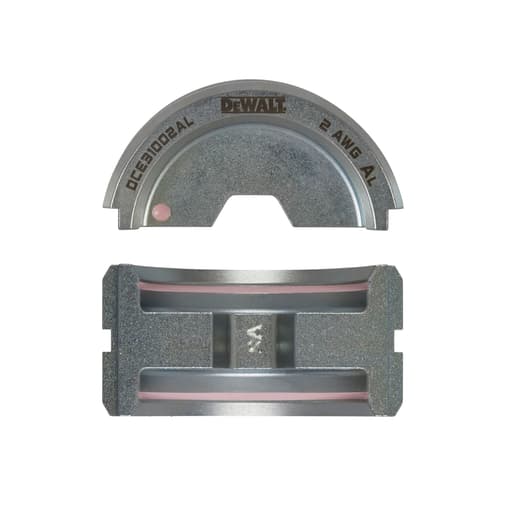

U‑type aluminum dies intended for use with a compatible compact crimper to form UL‑classified crimps on aluminum connectors. The dies include permanent size markings and color coding to identify die size, and they imprint the wire size onto the connector after a completed crimp to aid inspection. Connectors and crimper are sold separately.
Project Ideas
Business
Mobile UL-Classified Crimping Service
Offer on‑site aluminum crimping for electrical and solar contractors. You arrive with a compatible compact crimper, this #2 U‑die, and approved AL connectors to produce cULus‑classified terminations on feeders, combiners, and disconnects. Provide photo documentation of imprinted wire size and torque logs for the job file.
Pre‑Terminated Feeder Assemblies
Sell cut‑to‑length #2 AWG aluminum feeder kits with pre‑crimped, UL‑classified AL lugs, heat‑shrink, and labels. Target small contractors and DIYers working with licensed electricians. Include a QA sheet referencing die color code, imprint verification photos, and recommended torque values from equipment manufacturers.
Crimper & Die Rental with QA Kit
Rent a compatible compact crimper plus the #2 Aluminum U‑Die, along with an approved connector kit and a step‑by‑step checklist. Add optional remote QA: clients upload photos of the die alignment and post‑crimp imprint for verification before closing terminations. Charge a deposit and offer consumables for sale.
Aluminum Termination Training & CE
Develop a paid course for electricians covering aluminum conductors, proper crimping technique, connector selection, antioxidant use per instructions, and inspection documentation. Include a mailed sample kit with pre‑crimped connectors showing the die’s imprinted wire size for hands‑on reference. Pursue CE accreditation to boost enrollment.
Inspection & Documentation Service
Provide third‑party verification of aluminum crimped connections on commercial jobs. You confirm approved connector use, proper die selection, and visually verify imprint and color code. Deliver a report with photos, batch/lot tracking, and optional on‑site pull tests when specified, helping contractors sail through AHJ inspections.
Creative
Detached Workshop Subpanel Feeder
Plan and prep a #2 AWG aluminum feeder for a small workshop or shed subpanel. Use the #2 Aluminum U‑Die with a compatible compact crimper and AL‑rated lugs to make UL‑classified crimps at both ends. The die’s color code and wire‑size imprint help you and the inspector verify terminations. Coordinate with a licensed electrician for final connections and code compliance.
Solar Combiner-to-Inverter Run
Build the aluminum feeder run from a roof or ground‑mount solar combiner to the inverter/disconnect. Crimp AL‑rated connectors on #2 AWG aluminum conductors so you have clean, cULus‑classified terminations ready for torqueing at equipment lugs. The etched and imprinted markings simplify documentation during inspection.
RV Pad Power Pedestal
Create a neat feeder assembly for a 50A RV pedestal using #2 AWG AL URD/SE cable where permitted. Pre‑crimp aluminum lugs with the U‑die so the pedestal hookup is fast and tidy. The die’s imprint of the conductor size on each connector makes it easy to verify the correct gauge during installation and inspection.
Outdoor Spa/Hot Tub Subfeed Prep
Pre‑assemble a code‑compliant aluminum subfeed for an outdoor spa disconnect. Use the U‑die to produce UL‑classified crimps on AL‑rated connectors, then add identification sleeves/labels. The permanent die markings and imprinted wire size provide a professional, inspector‑friendly finish. Have a licensed electrician finalize the installation.
Electrical Apprenticeship Demo Board
Build a teaching board that showcases proper #2 AWG aluminum crimps versus common mistakes. Include samples with correct color‑coded die impressions, wire‑size imprints, and documented crimp steps. Use it for training apprentices on AL terminations, antioxidant use per connector instructions, and inspection best practices.
