DuctlessAire Outdoor Wall Bracket - Mini Split Mounting Bracket - Ductless Air Conditioner Wall Mount - Mini Split AC/Heating System Accessories for Window AC, HVAC, Heat Pump & More

Why I chose this wall bracket

My goal was straightforward: mount a mid-size mini split condenser securely off the ground, keep vibration out of the house, and avoid a bulky pad on the lawn. The DuctlessAire wall bracket checked the right boxes on paper—steel construction, 300 lb load rating, adjustable arms, integrated vibration control, and a full hardware kit. After installing it and putting it through its paces with a 24,000 BTU condenser, I came away impressed with its stability and thoughtful design, with a few caveats worth knowing before you start.

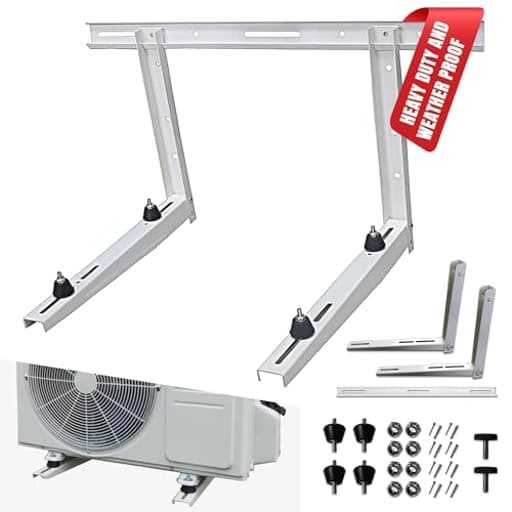

Build quality and design

The bracket is made from powder-coated hardened steel in an off-white finish that blends well with most condenser housings and trim. The crossbar and arms feel stout, with clean welds and a finish that shrugged off light scratches during installation. The arms telescope to fit a range of condenser depths, and the adjustable backstop is a small but smart touch—it keeps the unit from creeping backward against the wall while you square and tighten everything.

The stated capacity (up to 300 lb and 9,000–36,000 BTU) feels realistic. With my 24k unit, nothing flexed or creaked once tightened down. The design raises the condenser well above grade, which is a big win if you deal with snow, mulch, leaf litter, or splash-back from downspouts. It also improves service access and airflow.

Installation experience

I mounted the bracket to a poured concrete foundation. With a rotary hammer and the right bit, the process was straightforward:

• Layout and level the crossbar, mark hole locations.
• Drill for expansion anchors.
• Set the crossbar, then attach the arms and backstop.
• Adjust arm depth and fore/aft spacing to capture the condenser base rails.
• Add the vibration feet and shock absorbers, then set the unit.

From first hole to powered-on, the bracket portion took about 45 minutes. The included kit is generous—expansion anchors, hardware, crossbar, arms, and thumb nuts—but I made two tweaks. First, I swapped the included concrete anchors for stainless wedge anchors because my install is in a damp exposure and I wanted belt-and-suspenders corrosion resistance. Second, I added two fender washers under the rubber isolation feet to better match the profile of my condenser’s base rails. Neither change was strictly necessary, but both improved fit and long-term durability.

If you’re going into framing instead of masonry, plan on hitting solid studs or properly installed blocking through the sheathing. Don’t trust siding alone. For hollow CMU, sleeve anchors or toggles sized correctly for the block webbing are a safer bet than generic plastic anchors.

A quick note on leveling: most condensers are designed to sit dead level for proper drainage and compressor lubrication. If your unit’s manufacturer calls for a slight tilt, follow that spec; otherwise, get it perfectly level and locked down.

Adjustability and compatibility

The bracket’s adjustability is better than most value options I’ve used. Arm depth covers small 9k condensers up to deeper 36k housings, and the fore/aft slotting gives you room to land on different base rail hole patterns. The backstop makes lining things up easier than juggling shims under a 100+ lb condenser.

Two tips to ensure a clean fit:
- Dry-fit the arms and rubber feet to your condenser’s base rails before tightening the crossbar. Some base rails have narrow slots or stamped ribs that don’t love cone-style isolators. A flat washer on top of the rubber foot can spread the load and prevent marring.
- Verify wall clearance for line sets and service access. I like to leave at least 4–6 inches behind the unit on a wall bracket to avoid tight bends and to keep the coil breathing freely.

Vibration and noise control

This bracket’s integrated vibration-control feet and small shock absorbers make a noticeable difference. On startup and during defrost, the usual thrum that telegraphs into the wall was significantly muted compared to a rigid mount. Indoors, that translated to less audible buzz in the nearest room. It won’t fix a mechanically unbalanced fan or compressor, but it does its part to isolate normal vibrations.

If your wall is lightweight framing, consider adding a strip of high-density neoprene or a bead of acoustic sealant behind the crossbar where it meets the wall. It’s a simple trick that further decouples vibrations without compromising rigidity.

Weather resistance

The powder coating held up fine during my initial weeks in sun and rain. Edges and fastener holes are often where coatings fail; here, the coverage looked even, and water beaded instead of wicking. That said, hardware is always the weak link outdoors. If you’re in a coastal or industrial environment, upgrade to stainless or hot-dip galvanized anchors and bolts. A quick dab of anti-seize on exterior threads will save you grief later.

The elevated design is a real advantage for longevity. Keeping the condenser off wet soil and out of splash zones reduces corrosion, and it clears garden hoses, leaf blowers, and snow shovels. Just be sure to mount high enough above the typical snow line and far enough from roof drip lines.

What I liked

• Solid, confidence-inspiring steel build with a clean finish.
• Genuine adjustability in arm depth and fore/aft spacing, plus a handy backstop for alignment.
• Effective vibration isolation built in—fewer parts to source and smoother operation once running.
• Complete kit out of the box, suitable for both masonry and wood installs.
• Elevation that protects the condenser and simplifies service access.

Where it could be better

• Instructions are serviceable but light on detail. Novice installers may want a quick primer video or a dry run before drilling.
• The included anchors are fine for many situations, but not all. Matching anchor type to your wall material and exposure matters; consider upgrading in demanding conditions.
• The cone-style rubber feet won’t interface perfectly with every condenser base rail design. Be ready with fender washers or alternative isolators if your rails are narrow or heavily ribbed.

Safety and placement notes

• Hit structure. For wood, that means studs or blocking; for masonry, proper embedment with the right anchors. If you’re unsure, consult a local pro or building inspector.
• Mind clearances. Follow your unit’s manual for side, rear, and top spacing. More space is rarely a bad idea.
• Plan condensate routing and defrost drainage so nothing drips onto walkways or framing.
• If mounting on siding, add stand-offs or a ledger to keep the bracket square and prevent crushing the siding profile.

The bottom line

The DuctlessAire wall bracket strikes a smart balance of strength, adjustability, and noise control at a fair price. It handled my 24k BTU condenser without fuss, felt rock solid once fastened, and the integrated isolation did a better job than the stick-on rubber pucks I’ve used with other brackets. Installation was straightforward with the right tools, and the elevated, compact footprint is a cleaner solution than a ground pad in many settings.

It isn’t perfect—installation guidance could be clearer, and you may want to tailor hardware and foot interfaces to your specific wall and condenser—but those are solvable issues rather than deal-breakers.

Recommendation

I recommend this bracket for most residential and light commercial mini split installs from 9,000 to 36,000 BTU where a wall mount makes sense. Choose it if you value solid steel construction, built-in vibration control, and easy adjustability. Just pair it with wall-appropriate anchors and take a few minutes to plan the interface with your condenser’s base rails. Do that, and you’ll end up with a clean, quiet, and durable installation.
