Shuisen Sliding Shower Door Bottom Guide with Screw for 3/8 in Glass Sliding Doors, Clear Acrylic Frameless Door Track Guide for Bathtub Shower Glass, Shower Door Replacement Parts Bottom Guide

Why I reached for this acrylic bottom guide

Replacing a shower door bottom guide isn’t glamorous work, but few small parts make as big a difference in how a frameless slider feels day to day. I put the Shuisen bottom guide on a 3/8-inch frameless shower door that had started to rattle and wander, and I was looking for a low-profile, match-the-glass look rather than a chunky metal U-channel. This clear acrylic piece promised a simple, single-screw installation and a nearly invisible presence on the curb. That’s exactly the scenario where a part like this should shine.

What it is and who it’s for

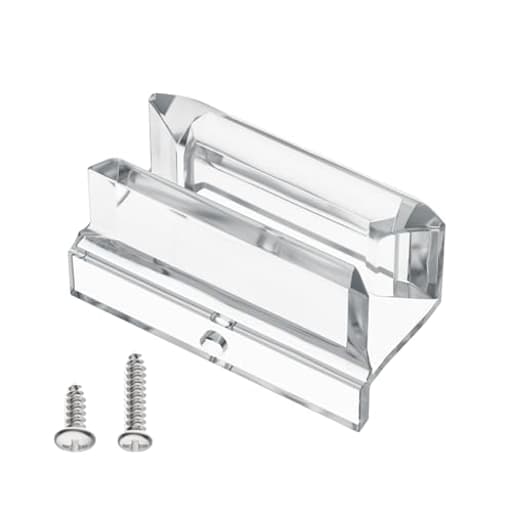

At its core, this is a clear acrylic U-shaped guide that mounts to the shower threshold (curb) and keeps a 3/8-inch glass door tracking straight. It doesn’t carry the door’s weight; it’s a lateral stabilizer. If your door panel is 3/8 inch thick and your enclosure is frameless or semi-frameless, this guide is a fit. If your glass is thinner (1/4 or 5/16 inch) or thicker (1/2 inch), look elsewhere. The opening is sized for 3/8-inch glass with just enough flex to account for minor manufacturing variances without pinching.

The Shuisen guide uses a single center mounting hole. That’s great for clean looks and quick installs, but it does mean you need either a fresh spot to fasten into, or a curb that can accept a new pilot hole. If you’re replacing a two-hole metal guide and you don’t want to drill new holes or patch existing ones, plan ahead.

The kit includes one guide and two screws—one short, one long. That’s helpful because thresholds vary: fiberglass/acrylic pans often need a shorter screw; solid surfaces or wood underlayment can take the longer one.

Installation: tools, steps, and tips

I installed the guide in under 20 minutes, not counting cure time for sealant. Here’s the process that worked well:

• Dry-fit first. Slide the door to its closed position and set the guide on the curb so the glass sits centered in the U-shape. Ensure the door glides past the guide without rubbing hardware on either side.
• Mark the hole location. With the guide held in place, mark the center hole on the curb with a pencil or a small punch.
• Drill a pilot hole appropriate for your substrate. For fiberglass/acrylic pans, a small wood/plastic bit works. For tile or stone, use a masonry bit at low speed with gentle pressure. Avoid hammer action on tile. If you’re going into a hollow pan, be cautious not to overtighten—stripping is easy.
• Seal the footprint. A small bead of 100% silicone under the guide helps keep water out of the hole and prevents micro-movement over time.
• Fasten with a hand driver. I prefer a screwdriver over a drill to avoid over-torquing acrylic. Use the screw length that bites securely without bottoming out.

A few practical notes: acrylic is reasonably tough but not forgiving if you crank down on it. Snug is enough. If your curb has existing holes that don’t line up with this guide’s center hole, you’ll either drill a new one or fill the old holes with color-matched epoxy/silicone. Also, check that the screw head sits flush within the guide and doesn’t protrude into the path of the glass.

Build quality and design

For a small part, the Shuisen guide is nicely executed. The edges are smooth, and the transparency helps it disappear against both white and darker thresholds. Acrylic is the right choice if you want an unobtrusive look and low friction against glass. There’s modest flex in the side walls, enough to allow a door that’s a hair over or under 3/8 inch to slide freely, but not so much that the door wobbles. It’s a sensible balance.

Acrylic’s drawback is brittleness compared to nylon or polycarbonate. That mostly matters in two situations: over-tightening the fastener or hard impacts (dropping a tool on it or stepping on it). Treat it like the piece of trim it is—don’t reef on the screw, and don’t use it as a footrest. In exchange, you get clarity, a smooth sliding interface, and no risk of corrosion or finish wear you often see with metal guides.

The included screws are basic but serviceable. The threads bite cleanly, and the head seats well in the guide’s recess. If your environment is particularly humid or your threshold is stone where a plastic anchor is needed, consider upgrading hardware to stainless and using an appropriate anchor. That’s not a knock on the guide—just a best-practice note for site conditions.

Performance in daily use

Functionally, the difference was immediate. Before the swap, the door could yaw a few degrees, which made it feel clattery and increased the risk of the leading edge tapping the fixed panel. With the Shuisen guide in place, lateral play dropped to nearly zero. The door tracks straight, closes consistently, and doesn’t rattle when it hits the soft-close catches at the top rollers.

Friction is minimal. Because the guide cups the glass rather than clamping it, there’s no binding, even if a few droplets or soap film are present. The clear acrylic stays quieter than metal on glass and doesn’t mark the panel. If you’ve ever seen gray scuffs from aluminum guides on clear glass, you’ll appreciate this.

Visually, it does what I wanted: it blends in. On a white acrylic base, it’s practically invisible. On a tiled curb, it reads as a discrete clear block that doesn’t compete with the aesthetic of a frameless design.

Compatibility and limitations

A few boundaries to keep in mind:

• Glass thickness: This is specifically for 3/8-inch panels. It’s not adjustable. Using it on a 1/2-inch door will jam; on a 1/4-inch door, it will be sloppy.
• Mounting pattern: The single center screw is both a pro (clean, simple) and a con (may not match existing screw holes). If you’re swapping a two-hole guide and want to reuse those holes, this isn’t the one.
• Substrate: Drilling into tile or stone requires the right bit and a light touch. If you’re uncomfortable with that, choose a guide that uses adhesive or that reuses existing holes.
• Not a structural fix: If your door is out of plumb or the top track is misaligned, a bottom guide won’t cure alignment issues. It stabilizes; it does not correct geometry.

Maintenance and longevity

Maintenance is simple: keep grit out of the guide. Grit can turn any guide into sandpaper. A quick wipe during regular shower cleaning is enough. Avoid harsh solvent cleaners that can craze acrylic; standard bathroom cleaners and mild soap are fine. If sealant was used under the base, check it annually and refresh as needed to keep water out of the screw hole.

Longevity-wise, acrylic should hold up well in a wet environment. Long-term, clear plastics can develop micro-scratches or slight haze, especially if scrubbed with abrasive pads. Using a soft cloth preserves clarity. If you’re in a household with heavy use and the door sees frequent, fast slams, an all-nylon or metal guide might occupy the “tank” end of the durability spectrum. For typical residential use, this one sits in a comfortable middle ground.

Value and alternatives

This guide lands in the “simple solution that works” category. Compared to metal guides with rollers or multi-screw plates, it’s cheaper, easier to install, and better-looking on frameless systems. Adhesive-only guides are even easier to place but tend to drift over time or fail under cleaning chemicals. Two-screw nylon guides are tougher but more visually obvious and may require more drilling.

If your priority is invisibility and you have a 3/8-inch door, this is a sweet spot. If your curb already has a different hole pattern that you must reuse, a two-hole replacement of the same style may be the smarter hassle-free choice.

The bottom line

The Shuisen bottom guide does exactly what a bottom guide should do: keep a frameless 3/8-inch glass door steady, quiet, and on track without drawing attention to itself. Installation is straightforward thanks to the single center screw and the included hardware, and day-to-day performance is smooth and rattle-free. The clear acrylic body complements modern enclosures and avoids the cosmetic drawbacks of metal-on-glass contact.

I recommend this guide if you have a 3/8-inch frameless slider and you’re comfortable drilling (or re-drilling) a single hole in your threshold. You’ll get a clean look, stable tracking, and an easy install. If you need to reuse existing off-center holes, have non-standard glass thickness, or want a bombproof part for heavy commercial use, consider a different style. For the typical home shower, though, this is a simple, effective upgrade that feels right every time you slide the door.
