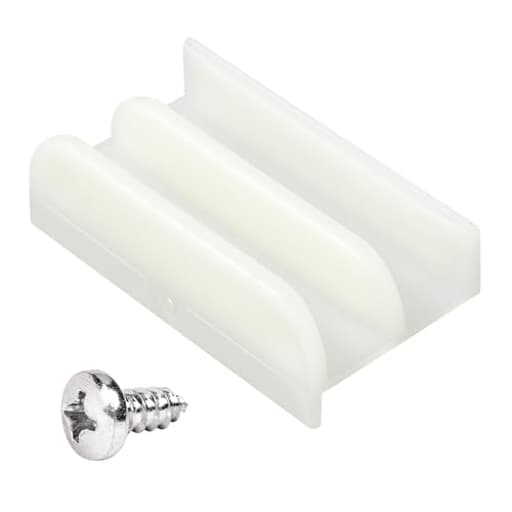

VYH M6219 Sliding Shower Door Bottom Track (Top-Hung Shower Door Track), Suitable for 7/16-inch Thick Glass, 1/2-inch Channels, Glass Shower Door Plastic Track M6219

What this track is—and isn’t

The M6219 track is a plastic bottom guide for top‑hung sliding shower doors. It sits inside a 1/2‑inch aluminum channel at the threshold and keeps a 7/16‑inch glass door aligned as it glides. It’s not a water seal, it’s not a roller, and it’s not a universal “one size fits all” insert. Its job is simple: provide a low‑friction, wear‑resistant surface that quietly stabilizes the moving glass panel while you slide the door.

I installed it on a standard top‑hung, two‑panel enclosure where the original nylon guide had hardened and cracked. The difference was immediate: the door tracked straight again, rattling stopped, and the glide felt smoother and quieter.

Fit and compatibility

• Glass thickness: Designed for 7/16‑inch glass. That’s the key spec. If your glass is thicker, skip this track. If it’s thinner (3/8 or 5/16), you’ll have too much play.
• Channel size: The frame channel should be the common 1/2‑inch profile. The M6219 drops into that footprint cleanly.
• Tolerances: The inner groove is intentionally generous (spec’d around 0.52 in) with a small center relief gap (≤0.2 mm). That tiny gap isn’t a defect; it keeps friction down and prevents binding as humidity and temperature shift.

Before ordering, I measured the glass with digital calipers at the bottom edge—where manufacturers are most consistent—in three places. If you don’t have calipers, borrow a pair; guessing based on “it looks like 3/8” is the fastest way to end up with slop or a bind. Also check that your sill channel is clean and truly 1/2 inch; years of mineral buildup can fool you.

Installation experience

The M6219 doesn’t require special tools. I did the following:

1. Popped the old insert out and vacuumed the channel.
2. Scraped away hardened silicone and scale, then wiped with isopropyl alcohol.
3. Test‑fit the track dry to confirm the profile sat flush and didn’t tip.
4. Cut the length with a fine‑tooth hacksaw and dressed the ends with 220‑grit sandpaper.
5. Set a couple of pea‑sized dots of clear silicone in the channel (belt‑and‑suspenders to prevent creep).
6. Pressed the M6219 into place, weighted it with a wood strip for an hour, then remounted the door.

Total working time was under 20 minutes. You can also secure it with thin VHB tape if your frame is perfectly flat and clean; I prefer a silicone tack because it’s removable without bending the aluminum. There’s no hardware included—and none needed for most modern frames. If your original bottom guide was a screw‑in style or used a center divider with a fastener, this track won’t give you a screw point. In that case, either adapt with adhesive or choose a guide designed for screw retention.

Performance and feel

Once in, the track did exactly what I wanted:

• Glide: The door starts and stops predictably with light effort. There’s less stiction at the first push compared to my worn nylon insert.
• Noise: The dull clatter I used to get when the door crossed the midpoint is gone. The plastic dampens vibration and takes the “ring” out of the glass.
• Alignment: The panel rides truer. Side‑to‑side wobble is minimal because the groove interfaces the glass evenly.
• Water behavior: No change—and that’s good. This part isn’t meant to dam water; it simply guides the door. The threshold still drains as designed.

The small central relief in the groove sounds odd on paper, but in use it’s a non‑issue. You don’t see it, and it prevents micro‑binding that can happen when the glass edge has minor waviness or the frame isn’t perfectly parallel.

Material quality and wear

The plastic formulation has a low static and dynamic coefficient of friction, which is why the door doesn’t “grab” at startup. After a few weeks of twice‑daily use, I saw no visible wear lines or gray transfer on the glass edge. It’s still early days on longevity, but the even polish on the contact surfaces suggests uniform wear rather than grooving. I expect it to outlast the cheap nylon that came with my enclosure.

A few care notes:

• Clean with mild soap; avoid aggressive solvents or scouring powders.
• If you use glass cleaners with ammonia, spray the cloth, not directly onto the track.
• Re‑seat by hand if you ever pull the door off for maintenance; don’t pry at the lip with a metal screwdriver.

Where it shines

• Correctly matched systems: If you have a top‑hung slider with 7/16‑inch glass and a 1/2‑inch sill channel, this is a straightforward upgrade that brings the door back to a smooth, quiet glide.
• Quick refreshes: Swapping a brittle or squeaky guide for the M6219 is fast and tidy. No drilling, no wrestling, and no need to remove the frame.
• Noise control: The material genuinely reduces rattle, which matters in small baths where hard surfaces amplify sound.

Where you might struggle

• Legacy enclosures: Older kits (especially 30–40‑year‑old frames) sometimes used screw‑fixed or clip‑style guides. If your bottom guide is mechanically retained, a drop‑in insert like this may not seat securely without adhesive—or at all. Check before you buy.
• Mismatched thickness: A surprising number of “frameless” sliders are 3/8 inch, not 7/16. If you bring the wrong assumptions, you’ll end up with a loose door that can chatter or pop the insert.
• Holding method: In channels with dented or uneven floors, friction alone may not keep any plastic insert planted. A thin bead of silicone or narrow VHB tape under the track solves this, but it’s one extra step to plan for.

Practical tips for a clean install

• Measure both glass and channel with calipers. Write the numbers down; “close enough” isn’t.
• Dry‑fit the track and run the door through the entire stroke before adhesive. You’re looking for any point of rub or lift.
• If you cut to length, tape the cut line to reduce chipping; deburr lightly so the ends sit flush and look tidy.
• Use minimal adhesive. You want tack, not a watertight bond. Excess silicone turns into a dirt magnet.
• Keep the gap clean. Hair and soap can collect in any guide. A quick wipe when you clean the glass keeps glide quality high.

A note on aesthetics

It’s white. On chrome or brushed‑nickel frames, it blends acceptably; on black or oil‑rubbed bronze, you will notice the contrast. It’s a small strip low in the opening, so it didn’t bother me, but if you’re particular about color matching, bear that in mind.

Alternatives to consider

If your door glass is 3/8 inch or 1/2 inch, choose a track spec’d for that thickness. If your frame relies on a screw‑down center guide, look for a replacement with an integrated fastener point instead of trying to force‑fit an adhesive solution. And if the door’s rough glide is actually coming from failing rollers up top, fix those first; no bottom guide can compensate for a bad hanger.

The bottom line

As a drop‑in guide for 7/16‑inch glass in a 1/2‑inch channel, the M6219 track is a simple, effective fix. It installs quickly, runs quiet, and brings a tired slider back to life without drama. The material choice is sensible for low friction and wear, and the small central relief is a thoughtful design touch that prevents binding.

The caveats aren’t dealbreakers, but they’re real: you need to measure, you may want a dab of adhesive for security, and older, screw‑retained systems aren’t a good match. If you’re within spec, expect a smooth result with minimal fuss.

Recommendation: I recommend the M6219 track for standard top‑hung sliders with 7/16‑inch glass and a 1/2‑inch threshold channel. It’s easy to fit, quiet in use, and restores alignment without requiring specialized tools. I wouldn’t recommend it for older, screw‑based guides or for glass outside the 7/16‑inch spec—there are better‑matched parts for those cases.
