Features
- 1/4" hex shank
- Designed to center diamond hole saws
- Compatible with multiple mandrels (PCM38, PCM12, PCMDSPL)
- Suitable for diamond hole saws 3/4 in to 4-1/8 in diameter
Specifications
Shank | 1/4 Hex |
Compatible Hole Saw Diameters | 3/4 in to 4-1/8 in |
Compatible Mandrels | PCM38, PCM12, PCMDSPL |
Intended Use | For use with diamond hole saws 3/4 in or larger |
Weight | 0.07 lb |
Upc | 000346392234 |
Regulatory Warning | Contains chemicals subject to California Proposition 65 |
Related Tools
Related Articles

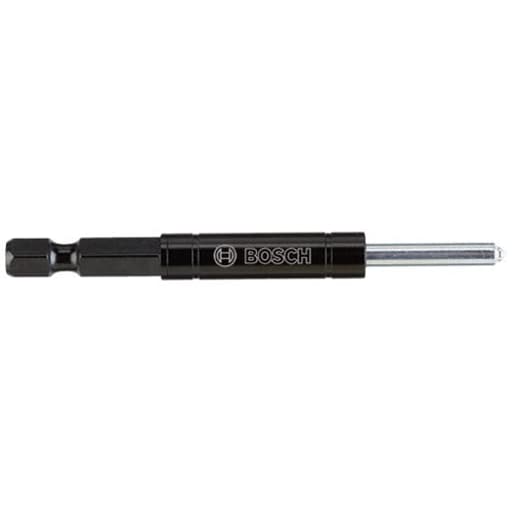

Pilot centering bit designed for use with diamond hole saws. Provides a 1/4" hex shank for mounting and is intended to center hole saws within the specified diameter range.
Model Number: HDGPB6
Bosch AutoStart pilot bit for diamond hole saws Review
Centering a diamond hole saw on slick stone is where projects go sideways. The saw skates, the layout mark smears, and you spend the next half hour nursing a groove that should have taken a minute. I added Bosch’s AutoStart pilot bit to my hole-saw kit for that reason alone—to make the first contact predictable—and it’s become the piece I won’t start a tile or stone hole without.
What it is and how it’s built
The AutoStart pilot bit is a simple centering accessory with a 1/4-inch hex shank. It’s designed to work with Bosch’s diamond hole saw mandrels (PCM38, PCM12, PCMDSPL) and cover hole saw diameters from 3/4 inch up to 4-1/8 inches. There’s no gimmickry in the design; the value is in the geometry and fit. The hex shank locks solidly into a drill’s chuck or quick-change holder, and the pilot interfaces cleanly with the Bosch mandrels to position the hole saw ring where you want it.
At 0.07 pounds, it’s light and easy to pocket. Mine lives in the same small case as my diamond hole saws so it’s always on hand. The packaging carries a California Proposition 65 warning, which you’ll see on many cutting tools and accessories.
Setup and compatibility
Setup is straightforward:
- Chuck the pilot bit by its 1/4-inch hex shank.
- Assemble your Bosch diamond hole saw to the appropriate mandrel (PCM38, PCM12, or PCMDSPL).
- Engage the pilot through the mandrel so the saw ring is centered.
It’s worth emphasizing the compatibility limits. The pilot is intended for diamond hole saws 3/4 inch and larger, up to 4-1/8 inches, and specifically for the Bosch mandrels listed. If your kit includes non-Bosch arbors, check the fit before you’re on the clock. With the correct mandrel, the pilot seats snugly and keeps the ring aligned from the moment you touch down.
In use: starting clean on tile, stone, and composites
I used the pilot across typical plumbing and electrical cutouts in porcelain tile, natural stone, and quartz composite. The biggest difference it makes is at the first contact. Instead of feathering the drill at a slight angle or relying on painter’s tape as a traction aid, I could land flat and steady. The pilot keeps the ring from skating while you establish the initial track. Once the diamond rim has created a shallow groove, you can continue the cut with the pilot still in place or back it off if you need clearance—either way, the cut stays on line.
On porcelain tile, where a diamond hole saw will happily wander without guidance, the pilot bit removed the usual guesswork. Starts were controlled, and the kerf stayed centered on my layout. In stone and quartz, the same story: consistent starts without the saw grabbing or drifting. On a polished granite sample, I deliberately tried a dry start without tape just to see how it behaved. With the pilot, I could start flat and maintain my mark without chatter. Without the pilot, I had to fall back to the usual “tilt and nibble” technique to avoid skating.
Speed, control, and technique tips
Diamond hole cutting is all about control and cooling. The pilot bit doesn’t change that equation, but it helps you stay disciplined because you don’t need to muscle the saw to keep it steady. A few practical notes from use:
- Run at low to moderate speed with light pressure. Let the diamonds do the work.
- Use water for cooling. A squeeze bottle, spray bottle, or a damp sponge pressed near the cut keeps slurry under control and extends tool life.
- Don’t use hammer mode. Rotary only.
- Backer boards matter. If you’re cutting through a countertop or tile that’s already set, protect what’s underneath; the pilot can contact the substrate before the ring breaks through.
- For finishes that chip easily, start the cut on the show face and consider finishing from the backside once you’ve established a groove to minimize breakout.
Following those basics, the pilot enables cleaner, more predictable starts and helps you avoid overcorrecting pressure or speed early in the cut.
Accuracy and surface protection
Accuracy is where this pilot earns its keep. My layout marks stayed centered, and circles closed where they started without oblongs or bite marks from a wandering ring. On glossy surfaces, I didn’t need tape as a traction crutch, which also meant cleaner slurry management and less adhesive residue to clean up.
If you’re drilling delicate glazes or glassy porcelain, the pilot’s contribution is less about speed and more about eliminating those first seconds of uncertainty. That’s usually when chips happen. By keeping the saw steady, I was able to apply just enough pressure to start a track and back off if I saw the slurry go dry or the tone change.
Durability and maintenance
This is a small accessory that takes less abuse than the hole saw itself, but it still sees plenty of slurry and grit. After several holes across porcelain and granite, the pilot showed normal wear with no deformation at the shank or interface points. The hex remained crisp, and the fit in the mandrel stayed tight.
Maintenance is minimal: rinse the pilot after wet cuts, wipe it down, and keep it dry to prevent corrosion. I also make a habit of clearing slurry from the mandrel so the pilot seats fully the next time.
Limitations to consider
No accessory is universal, and a few boundaries are worth noting:
- System-specific: It’s designed for Bosch mandrels (PCM38, PCM12, PCMDSPL). If you run a mixed-brand setup, verify compatibility.
- Diameter range: Below 3/4 inch or above 4-1/8 inches, this pilot isn’t intended for use. Very small diamond hole saws still require careful technique or a guide jig.
- Not a substitute for cooling: The pilot improves control but won’t save a cut that’s run too hot or too fast.
- Substrate contact: Because the pilot extends ahead of the ring, be mindful of hidden surfaces. Use a sacrificial backer where needed.
None of these are deal-breakers, but they’re practical constraints to plan around.
Who benefits most
If you cut holes in porcelain tile, natural stone, or quartz with any frequency—plumbers, remodelers, tile setters, countertop installers—this pilot streamlines the start of every cut. It’s especially useful for larger diameters where a wandering ring can translate into expensive material loss. For occasional DIY users tackling a faucet or shower valve hole, the pilot reduces the learning curve and helps you avoid common missteps on a high-visibility cut.
Value and workflow impact
The value here isn’t about shaving minutes off a cut; it’s about reducing risk and rework. Layout accuracy improves, chipping at the start is less likely, and you don’t need improvised guides or tape to wrangle the saw. For me, the biggest workflow change was confidence: I could approach glossy, hard surfaces directly and focus on cooling and feed instead of wrestling with alignment.
Because it uses a standard 1/4-inch hex shank, it integrates cleanly with cordless drills and quick-change chucks. I also appreciate that one pilot covers a broad diameter range, so I don’t have to swap accessories between common sizes.
The bottom line
The AutoStart pilot bit doesn’t try to be more than it is, and that’s a strength. It’s a small, well-fitted centering tool that makes diamond hole saws easier to start, more accurate, and less stressful to use on unforgiving surfaces. Within its intended system and size range, it simply works.
Recommendation: I recommend this pilot bit if you use Bosch diamond hole saws on tile or stone, even occasionally. The 1/4-inch hex shank provides secure engagement, the compatibility with Bosch mandrels is solid, and the control it adds at the start of a cut helps protect materials, layout accuracy, and your nerves. If your setup relies on different mandrels or you’re routinely outside the 3/4-inch to 4-1/8-inch range, verify fit first. For everyone else, it’s an inexpensive, high-impact addition that makes a real difference where it matters most—the first contact.
Project Ideas
Business
On-site countertop retrofit holes
Offer a mobile service adding faucet, soap dispenser, RO tap, or air-gap holes (3/4–1-3/8 in) in installed stone and quartz. The AutoStart pilot with diamond hole saws delivers precise placement and clean finishes, minimizing risk of chip-out.
Tile and glass drilling service for trades
Partner with plumbers and electricians to drill exact penetrations in installed tile, porcelain, and non-tempered glass for shower hardware, grab bars, and conduit. The centering pilot bit speeds setup and ensures accuracy.
Weekend rental kit + training
Rent a curated kit: diamond hole saws (3/4–4-1/8 in), the AutoStart pilot (1/4 in hex shank), compatible mandrels, clamp-on guides, water feed bottle, and PPE. Include QR-coded safety and technique videos; monetize via deposits and consumable fees.
Handmade hard-surface products
Produce and sell stone tea-light holders, tiled boards with circular inlays, and cable grommet plates. The pilot-centered coring process yields consistent, premium-looking pieces for Etsy, markets, and boutique shops.
Specialty drilling jigs and accessories
Design 3D-printed or machined clamp guides and vacuum bases that align with 1/4 in hex pilot bits and common mandrels (PCM38, PCM12, PCMDSPL). Sell as add-ons to DIYers and contractors needing reliable starts on slick or curved surfaces.
Creative
Stone tea-light candle blocks
Use the pilot bit with 1-1/2 in diamond hole saws to core recesses in marble or granite offcuts for tea lights. The AutoStart centering keeps the saw steady to avoid skating and chip-out, producing clean, repeatable pockets.
Upcycled glass bottle pendant lights
Drill clean top openings and side cable pass-throughs (3/4–1-1/4 in) in glass bottles. Pair the AutoStart pilot with a clamp-on saddle jig on curved surfaces for accurate starts and use water cooling for smooth cuts.
Inlaid tile charcuterie board
Create decorative circular inlays by coring precise 3/4–2 in holes in porcelain tiles and matching glass/stone. The pilot bit keeps the hole saw centered so inlays fit snugly and edges stay crisp.
Stacked planter fountain
Build a tiered garden water feature by drilling concentric 1–2 in holes through ceramic pots and stone trivets for pump tubing. The centering pilot ensures vertical alignment through multiple layers.
Quartz/porcelain desk cable grommets
Drill 2–3 in pass-throughs in a porcelain-topped desk or quartz slab and add rubber grommets. The pilot bit’s controlled start prevents wandering and reduces edge chipping on brittle surfaces.
