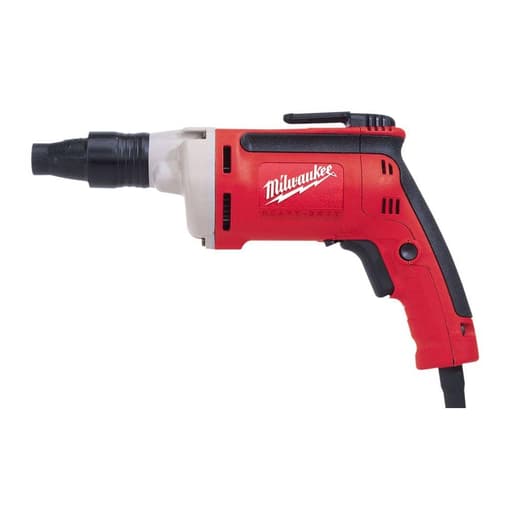

Milwaukee Metal Fastening Adjustable Clutch Screwdriver

Milwaukee's Metal Fastening Adjustable Clutch Screwdriver, model 6780-20, is a tool that stands out in the crowded market of fastening devices, particularly for steel building and HVAC applications. With a robust 6.5-amp motor and the ability to operate at 2500 RPM, this screwdriver is designed to provide strong performance and precise control. After spending some time with this tool, I can confidently say it lives up to the Milwaukee reputation for durability and power.

One of the first things I noticed about this screwdriver is its substantial build. Weighing in at 3.8 lbs and measuring 12-1/4 inches in length, it is not the lightest tool around, but it certainly feels solid and well-balanced in hand. The ergonomic grip and two-finger trigger design contribute significantly to its comfort, even during extended use. The tool's heft actually works to its advantage, providing the stability needed when driving screws into tougher materials like steel and wood.

A standout feature of this tool is the 21-position clutch. This adjustable clutch allows for nuanced control over the fastening process, preventing over-tightening and stripping of screws. The clutch settings are easy to adjust and click into place securely, giving you confidence in the setting you’ve chosen. For light-duty tasks such as attaching HVAC ducting, the lower torque settings are more than sufficient. Conversely, higher settings handle larger screws and tougher materials with ease. I found that the clutch setting of "10" was perfect for driving 1-5/8" deck screws into 2x material, while the maximum setting could drive a 3" deck screw straight through a 2x4 if enough pressure was applied.

The 1/4" hex chuck is another feature worth mentioning. The quick-change mechanism is straightforward and effective, allowing for rapid bit swaps without the need for additional tools. To insert a bit, you simply slide the chuck forward, place the bit in, and let the chuck and bit travel back together. This mechanism ensures a secure fit and minimizes downtime between tasks. The chuck's self-locking feature adds an extra layer of convenience and safety, ensuring the bit stays in place during operation.

A key aspect of any corded tool is the cord itself, and Milwaukee has done well here with a 10-ft fixed rubber cord. This length provides ample reach for most job sites without the need for extension cords, and the rubber construction ensures durability and flexibility. The cord's fixed nature means you don't have to worry about it coming loose during use, which can be a common issue with some other corded tools.

While the screwdriver excels in many areas, it does come with a learning curve. The tool requires pressure to engage the chuck and start the rotation, which might take some getting used to if you are more familiar with cordless models. Once you get the hang of it, though, this feature actually adds to the overall control you have over the tool. The tool's design allows for multiple gripping positions, which can be particularly useful in tight or awkward spaces. For most tasks, I found that wrapping my hand around the back of the tool and using my ring and pinkie fingers on the trigger provided the best control and comfort.

One minor concern is the oiled chuck shaft, which can attract dust and particulates over time. This is something to keep an eye on, especially if you are working in particularly dusty environments. Regular maintenance and cleaning should mitigate this issue.

In terms of performance, this screwdriver did not disappoint. It handled a variety of tasks, from driving self-tapping sheet metal screws into HVAC ducting to fastening larger wood screws into 2x material, with ease. The torque and speed were more than adequate for all these applications, and the tool never felt underpowered. The variable speed control, ranging from 0 to 2500 RPM, allows for fine-tuning based on the specific task at hand, and the forward/reverse switch is conveniently located for quick direction changes.

Another notable aspect is the tool's durability. Milwaukee offers a five-year warranty on this model, which speaks volumes about their confidence in its longevity. This is a tool built to withstand heavy use and keep performing at a high level.

Despite its many strengths, there are a couple of areas where the tool could see improvement. The overall length and width of the tool can make it challenging to use in very tight spaces, and the ergonomics could be refined slightly to make one-handed operation more stable. Additionally, the clutch's consistency could be better, as there were instances where the same setting produced different results. However, these are relatively minor issues in the grand scheme of things.

Overall, the Milwaukee Metal Fastening Adjustable Clutch Screwdriver is a powerful and versatile tool that should be a valuable addition to any professional's toolkit. Its robust performance, combined with the convenience of a corded design and a highly adjustable clutch, makes it suitable for a wide range of fastening tasks. While it may take some getting used to, especially if you're transitioning from cordless models, the benefits far outweigh the initial learning curve. If you require a reliable, high-performing screwdriver for steel building, HVAC, or general construction tasks, I highly recommend considering this Milwaukee model.
