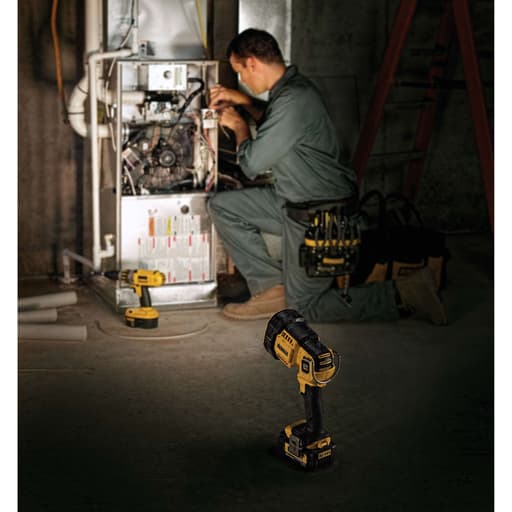

DeWalt 20V MAX Jobsite LED Spotlight

Why I reached for this spotlight

I keep a few lights in my kit—an area light for room-wide illumination, a compact pocket light for inspections, and a long-throw spotlight for distance. The DeWalt spotlight fills that last role. After several weeks of evening site checks, attic work, and a rainy utility callout, I’ve got a good sense of where it excels and where it doesn’t.

What it is

This is a cordless, long-throw LED spotlight that runs on DeWalt’s 20V MAX batteries. It has two brightness settings, a 90° pivoting head, a standing base, and both a built-in hook and a belt hook for hands-free placement. The spec sheet lists a max of 1000 lumens and a beam that can be seen at long distances (DeWalt cites up to 508 yards/1,525 ft). It carries an IP54 rating for dust and water resistance and the lens is protected by an over-molded surround to cut down on damage and marring.

Build and ergonomics

DeWalt stuck with its familiar tool-body silhouette, so this feels like holding a compact drill. The grip is comfortable, and with the battery on, the balance is decent for extended use. Weight without a battery is about 22.4 oz (1.4 lb). With a 5Ah pack installed, it’s stable on the ground and more bottom-heavy; with a 2Ah compact pack it’s lighter and easier to carry but a little less planted when you bump it.

The head pivots up to 90°, which is enough to point straight ahead or tilt to strike a ceiling/wall for indirect light. I would have liked a bit more range in some situations—180° would let me backlight a space without repositioning—but the detents are positive and the hinge feels stout.

The control is simple: a single trigger cycles between high and low. There’s no memory mode or strobe; it comes on where you left it in my experience, and the throw is clearly the priority here.

Light quality and beam pattern

This is designed as a spotlight, and it behaves like one. The hotspot is tight, bright, and punchy, with enough spill to maintain situational awareness. In open outdoor spaces, the long-throw beam is the star—it’s easy to identify objects across a large yard, check tree lines, or cut through fog better than a broad flood would. Indoors, it will light a path down a corridor or pick out panel labeling from a distance.

As with most spotlights, it’s not ideal for close, detailed work right in front of your hands. At arm’s length in a small space, that intense center can create glare and harsh shadows. If you want to bathe a room evenly, a panel-style area light is a better choice. But for focusing on a specific target at range, this is excellent.

DeWalt rates maximum output at 1000 lumens. The output is believable and, more importantly, concentrated where you need it. The low mode is genuinely useful for conserving battery when you don’t need maximum reach, and it reduces glare in reflective spaces.

Power and runtime

Because it uses the 20V MAX platform, I’ve been able to use the batteries I already own. That’s a major advantage if you’re in the DeWalt ecosystem. Battery and charger are sold separately, which is worth factoring into your budget if you’re not already invested.

Runtime will vary with pack size and mode. With a 5Ah pack, I had no trouble getting through an evening of intermittent scanning and setup on high, and plenty of additional runtime on low. For continuous use, low stretches things considerably. The light doesn’t dim abruptly or shut down unexpectedly in normal use; it tapers predictably as the pack nears empty. Heat management is good—after prolonged high-mode use the head gets warm, but not uncomfortably so.

Hands-free options

Hands-free placement is well thought out:
- The standing base is wide enough to park it on the floor or a shelf without wobble.
- The integral hook lets you hang it from a rafter, conduit, or fence wire.
- The included belt hook is handy when climbing or stashing between tasks.

I do miss a magnetic base or a tripod thread when working on metal structures or when I want precise aiming without improvisation. The 90° head plus the base usually solves most setups, but a magnet would be a welcome addition in the next revision.

Durability and weather resistance

The over-molded lens cover has already earned its keep. I’ve tossed this into a crate with fasteners, bumped it against concrete, and the business end shows only minor scuffs. The IP54 rating means it’s fine in dust and resists water splashes from any direction. I used it in a light rain without issue; this isn’t a submersible tool, but it’s appropriate for typical jobsite conditions. The housing is the type of hard plastic DeWalt uses on its tools, and it feels every bit as tough.

Battery fitment is snug on the models I used, with no rattle. The switch has a positive click and didn’t exhibit any flicker or cutouts when I jostled or angled the light.

Everyday usability

A few small touches stand out:
- The beam’s throw helps with navigation: scanning a driveway or mapping a path through a yard is straightforward.
- On low, it’s less fatiguing on the eyes indoors and still plenty useful for workspace targeting.
- The footprint is compact enough to live in a truck’s center console or a tool bag, although it’s larger than a typical flashlight.

On the flip side, the two-mode control is a bit limiting. A medium or true ultra-low would add flexibility. And while the throw is the headline feature, I sometimes wanted a diffuser for makeshift area lighting. If you regularly switch between task lighting and area lighting, pairing this with an area light is the way to go.

Specs that matter

• Max output: 1000 lumens (two brightness settings)
• Beam reach: visible at long distances (listed up to 508 yards)
• Head tilt: 90°
• Weight: 22.4 oz (tool only)
• IP rating: IP54
• Power: 20V MAX XR lithium-ion batteries (sold separately)
• Warranty: 3-year limited, 1-year free service, 90-day satisfaction guarantee

These align with how it behaves in the field. No gimmicks, just a straightforward spotlight with thoughtful mounting options.

Where it fits in a kit

This is ideal if you:
- Already own 20V MAX batteries and want a dedicated long-throw light.
- Need to scan large outdoor areas or pick out distant targets.
- Want a tough, hands-free-capable light that stands on its own and hangs easily.

It’s less ideal if you:
- Primarily need broad, even illumination for close work or whole-room lighting.
- Want multi-level, fine-grained brightness control or a magnetic base.
- Don’t own DeWalt batteries and don’t plan to—buying into a battery ecosystem just for a light is hard to justify.

The bottom line

The DeWalt spotlight does exactly what a jobsite spotlight should: it throws a tight, bright beam a long way, survives rough handling, and sets up quickly without fuss. The 90° pivot, standing base, and hooks make it easy to aim hands-free. Output is strong, the low mode is genuinely useful, and the IP54 build holds up in dust and rain.

It’s not a one-light-does-all solution—nor is it trying to be. For area lighting and close-up work, pair it with a flood or panel light. If you need more granular brightness control or magnets, look elsewhere. But if your priority is a durable, long-throw cordless spotlight that integrates with 20V MAX packs, this one is hard to fault.

Recommendation: I recommend it to anyone already in the DeWalt 20V MAX ecosystem who needs a reliable, distance-oriented light for outdoor checks, utility work, or long-range targeting. The build, beam performance, and mounting versatility outweigh the lack of finer brightness controls and magnetic mounting. If you’re starting from scratch without DeWalt batteries and you mostly want room-filling illumination, consider an area light instead. Otherwise, this spotlight is a dependable addition to a pro or serious DIY lighting kit.
