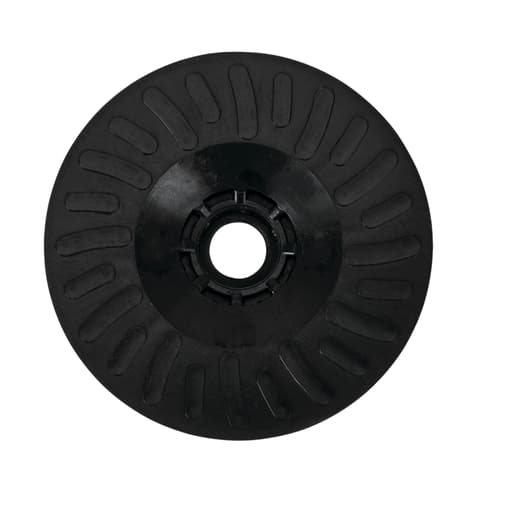

DeWalt Firm Turbo Backing Pad

Why this pad matters

Angle grinders earn their keep when you can switch from cutting and grinding to shaping and finishing without changing tools. The DeWalt backing pad makes that jump easy. It turns a 4-1/2 inch grinder with a 5/8-11 spindle into a capable sander for resin fiber discs, and it does so with more control and heat management than the generic rubber pads I’ve used over the years.

Setup and compatibility

Mounting the pad is straightforward: it threads directly onto a standard 5/8-11 grinder spindle and pairs with 4-1/2 inch resin fiber discs (the common style with a 7/8 inch center hole). I ran it on a few compact grinders without clearance issues, using the typical locknut to clamp discs. If your grinder includes a quick-change nut, it works just as well here.

A quick note on size: this pad is sized for 4-1/2 inch discs and guards. Keep your disc and guard sizes matched, and check the pad’s speed rating against your grinder’s no-load speed. That’s true with any backing pad, but worth repeating.

Design and build

The body uses a fiber/resin composite that feels rigid without being brittle. The standout feature is the turbo-style venting—channels and cutouts that move air across the disc’s back face as it spins. That airflow isn’t a gimmick; it helps keep the disc cooler under pressure. The face is flat and true, and the threaded insert is well-centered, so runout is minimal. Balance is good enough that I never fought vibration from the pad itself—only from the grinder and the disc grit.

DeWalt offers the pad in two stiffness grades. The firm version is a rigid base for high-pressure grinding and fast stock removal. The medium version has just enough give to contour slightly and soften the scratch pattern.

Firm vs. Medium: where each shines

• Firm: Best for aggressive tasks—chamfering edges, beveling plate, knocking down thick weld beads, and flattening high spots on steel. It maintains a consistent attack angle so you can lean into the work without the disc “dishing.”
• Medium: Better for blending and finishing—feathering grinder marks, removing burrs and oxidation, and smoothing over ground welds without creating hard facets. It follows gentle curves and reduces the risk of gouging on softer materials.

If you routinely toggle between heavy removal and finishing, owning both isn’t overkill. I found myself swapping to the medium pad whenever I wanted a cleaner transition line or when working on wood and plastics.

Performance on metal

On mild steel with 36–50 grit discs, the firm pad cut quickly and predictably. The rigid support keeps the disc flat, which is crucial for controlling bevels and keeping edges square. Grinding a fillet weld flush, I could ride the toe with a shallow angle and leave a flatter surface compared to rubber-backed pads that flex and dish out the joint.

For blending mill scale or refining a ground area before paint, the medium pad paired with 60–80 grit discs produced a more uniform scratch. It’s easier to feather at the edges and less likely to leave sharp transitions that telegraph through primer. Stainless behaves similarly, with the added benefit that the pad’s venting makes glaze less of a problem on heat-sensitive discs.

Performance on wood and composites

While resin fiber discs are most at home on metal, the medium pad impressed me as a shaping and smoothing setup on hardwoods with 60–80 grit. The slight compliance helps ride over undulations on sculpted profiles and inside corners without biting. On softwoods, the firm pad can be too aggressive—think chatter and low spots—so I stuck with the medium stiffness for better control. For tasks like refining a scribed profile or tuning a tight inside corner, the medium pad gives a nice balance of pace and finesse.

Heat management and disc life

The turbo-style venting does what it claims. Under sustained pressure, discs run cooler and shed swarf more effectively than on solid rubber pads. I noticed less discoloration on steel and fewer instances of the resin glazing over. You still need to manage pressure and keep the disc moving, but the window before heat becomes a problem is more forgiving. That translates to more consistent cutting and longer disc life, especially with coarse grits.

One side effect: you’ll see more fine dust and hot chips moving through those vents. Good extraction and PPE are nonnegotiable.

Ergonomics, control, and dust

The rigid face of the firm pad gives precise feedback—you can feel when you’re on the edge versus the face, which helps with controlled chamfers. The medium pad is smoother and more forgiving, which reduces hand fatigue during blending. I didn’t notice objectionable whistling or resonance from the venting, and vibration stayed low as long as the disc was centered and unbroken.

Because the pad encourages higher contact pressure (especially the firm version), it can kick up more debris than a flap disc at the same grit. Keep your guard on, use a respirator, and consider a shroud with dust collection if you’re working indoors.

Durability and value

The fiber/resin body held up well after repeated hot cycles and a few accidental edge digs. Threads didn’t loosen or gall, and the face didn’t glaze. Compared with generic pads, you’re paying for better cooling, rigidity, and consistency. If you go through a lot of resin fiber discs, the reduced heat and improved control can save enough discs to offset the initial cost.

Limitations and quirks

• Not a universal pad: it’s for resin fiber discs only, not flap wheels or hook-and-loop sanding discs.
• Stiffness matters: the firm pad can gouge softer materials and amplify chatter on thin stock. Choose the medium when in doubt.
• Size and arbor are fixed: 4-1/2 inch diameter and 5/8-11 thread suit most North American grinders, but won’t fit M14 or 10 mm spindles without adapters.
• Venting is not a substitute for technique: keep a shallow angle (about 10–15 degrees), moderate pressure, and move the tool to avoid overheating edges.

Tips for best results

• Match pad stiffness to the task: firm for heavy stock removal, medium for blending and finishing.
• Start with a coarser grit than you think you need for heavy removal, then step down to the medium pad with a finer grit to clean up the pattern.
• Use the pad’s rigidity: work off the edge for controlled chamfers; flatten high spots by keeping the pad face parallel to the plane.
• Let the venting work: avoid burying the pad at steep angles that block airflow.
• Check disc condition often: replace as soon as the resin starts to glaze or the edges crumble; a fresh disc cuts cooler and straighter.

Final recommendation

I recommend the DeWalt backing pad for anyone who wants to expand what their 4-1/2 inch grinder can do with resin fiber discs. The fiber/resin composite body is stable, the 5/8-11 mount is rock solid, and the turbo-style venting measurably reduces heat buildup. The firm option excels at beveling, thick weld blending, and other high-pressure tasks; the medium option shines for blending, burr removal, and finishing on both metal and wood. It’s not a do-everything accessory—use it only with resin fiber discs and pick the right stiffness—but within its lane, it delivers control, speed, and disc life that outperform generic pads. If you rely on a grinder for both rough shaping and surface prep, this pad earns a spot in the kit.
