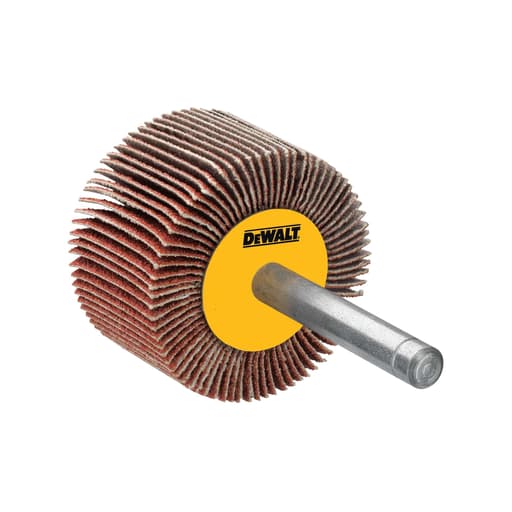

DeWalt 3/4 in. x 3/4 in. x 1/4 in. HP 40g Flap Wheel

Why I reach for this flap wheel

For quick edge cleanup and blending on small metal parts, I keep the DeWalt 40‑grit flap wheel within arm’s reach. It’s a compact, aggressive wheel that fits a 1/4‑inch shank tool and handles the unglamorous—but essential—jobs: knocking scale off, softening sharp burrs, adding a chamfer, and prepping surfaces for paint or welding. The combination of aluminum oxide abrasive on cloth‑backed flaps makes it a reliable generalist in the shop.

Build and materials

This wheel uses aluminum oxide on a cloth backing. That pairing matters. Aluminum oxide is the go‑to for ferrous metals and general stock removal. It’s tough enough to bite into carbon steel, cast iron, and even some stainless without burning up in a few minutes. The cloth‑backed flaps flex as they wear, continually exposing fresh grains while maintaining compliance over edges and contours. In practice, that translates into two things: consistent cutting over the life of the wheel and a scratch pattern that’s aggressive but controllable.

At 40 grit, it’s a coarse wheel. Expect it to remove material quickly and leave a visible scratch that’s appropriate for shaping and first‑pass blending. If you need a brushed or near‑finished surface, you’ll want to follow with a finer flap wheel or a Scotch‑Brite style abrasive.

Setup and compatibility

The 1/4‑inch shank means it drops right into a die grinder, and it will work in a drill in a pinch. That said, I strongly prefer a pneumatic or electric die grinder for this wheel. The higher speed and smaller form factor give you much better control and a crisper, more consistent cut. In a cordless drill, especially at lower speeds, the wheel still removes material but tends to polish more than cut, and it’s easier to chatter on edges.

A couple of setup notes:
- Make sure the tool speed is within the wheel’s rated maximum. Flap wheels can shed flaps if oversped.
- Seat the shank fully and check runout. Excessive wobble shortens wheel life and mars the finish.
- Wear eye and face protection—flaps shed over time, and the debris is sharp.

Performance on common tasks

• Edge breaking and chamfering: This is where the wheel shines. With light pressure and a shallow angle, I can establish a uniform chamfer on plate edges in seconds. The flaps conform to slight variations and won’t gouge the way a hard wheel can if you roll your wrist.
• Rust and scale removal: It takes mill scale off hot‑rolled stock without glazing over immediately, and it cleans up oxidized parts quickly enough to move to primer. For heavy scale, I’ll still start with a grinding disc, but the flap wheel leaves a more uniform tooth for coatings.
• Weld blending: On small TIG welds and fillets around brackets, it feathers transitions nicely. It won’t replace a 60‑ or 80‑grit flap disc on a grinder for large welds, but for fine blending and cleanup where control is key, it’s excellent.
• Decorative finishes: If you’re after a directional, satin‑like texture on metal, this wheel can lay down an even, linear scratch when you keep your passes straight and pressure light. Just plan to finish with a finer grit for uniformity.

Material behavior

• Steel and cast iron: Strong performance. The cut stays consistent if you let the flaps do the work. Overpressure dulls the grain and shortens life.
• Stainless: It cuts, though slower, and heat management matters. Keep your passes short and your pressure moderate to avoid bluing.
• Aluminum and softer metals: This is where loading shows up. The wheel will cut initially, then the flaps tend to clog. I keep a fine wire brush or a rubber abrasive cleaning stick on hand to clear it. If your work is mostly non‑ferrous, consider a non‑loading abrasive designed for aluminum instead.
• Wood and composites: It will absolutely remove material, but the 40‑grit scratch is coarse. It works for rough shaping or chamfering hardwood edges; I swap to finer grits quickly for any visible surfaces.

Control, ergonomics, and finish quality

What I like most is the balance of aggression and control. You can creep up on a line, feather a radius, and blend an edge without the “one slip and it’s ruined” anxiety that comes with hard wheels. The flaps compress slightly under load, which acts like a built‑in buffer. The trade‑off is that if you bear down too hard, the wheel rides over the surface rather than slicing cleanly; lighter pressure and higher speed usually yield a better finish and longer life.

The 40‑grit scratch is predictable. Used correctly, it lays down a uniform pattern that’s easy to track with subsequent grits. If I’m prepping for paint, I’ll often stop at the wheel’s scratch; if I’m going to a brushed metal finish, I’ll step to 80 or 120 and then a non‑woven.

Durability and wear

Cloth‑backed flaps are the story here. They shed steadily, exposing fresh abrasive and keeping the cut alive. On mild steel, I get solid runtime before the wheel loses bite. Heat buildup is modest if you keep the wheel moving.

What shortens life:
- Excessive pressure (glazes the abrasive and tears flaps prematurely)
- Working primarily on sharp corners with high force
- Running significantly below optimal speed in a drill and pushing harder to compensate

What extends life:
- Let the abrasive cut—use speed and light pressure
- Clean the wheel when you notice loading, especially after non‑ferrous work
- Alternate between heavy and light passes to keep heat down

Maintenance and care

I keep a small brass or fine steel wire brush nearby to flick out loaded material from the flaps. For stubborn buildup, a rubber cleaning stick helps. Avoid liquid lubricants on the wheel unless you’re intentionally using a non‑loading wax; even then, test first, as it can change the way the flaps cut. Store flap wheels dry and away from solvents—cloth‑backed flaps don’t love moisture or chemicals.

Where it fits in the shop

If you do fabrication, repair, or metal art, a compact flap wheel like this fills the gap between a hard grinding wheel and a finishing disc. It’s also a handy “rescuer” when a grinding disc feels too aggressive or too big. I keep a couple on hand:
- One for ferrous metals
- One that’s “sacrificial” for aluminum and plastics
- A fresh one reserved for finish‑critical work

DeWalt sells these individually and in multi‑packs, which makes sense—once you start using flap wheels, they become consumables you rotate through rather than a one‑off accessory.

Limitations

• Loading on softer metals: Manageable with cleaning, but not ideal if aluminum is your primary work.
• Coarse scratch: That’s the nature of 40 grit. Plan to follow with finer abrasives if appearance matters.
• Drill use is a compromise: It works, but you’ll get the best results in a die grinder where you can keep the wheel in its design envelope.

Value and warranty

As a consumable, price matters. This wheel sits in the “good value” category for me: it cuts fast enough to save time and lasts long enough to justify keeping multiples on hand. The 30‑day money‑back guarantee is a small but welcome safety net if you’re trying it for the first time. For production environments, the consistency across wheels in a pack is as important as unit price, and in my experience the performance from one wheel to the next is predictable.

Recommendation

I recommend the DeWalt 40‑grit flap wheel for anyone who needs a compact, controllable abrasive for edge work, small‑part blending, and general surface prep on steel. It’s aggressive enough to make progress, yet forgiving around edges and curves. The aluminum oxide on cloth flaps delivers steady cutting performance and respectable life, and the 1/4‑inch shank makes it broadly compatible with die grinders most shops already own.

If your workload is dominated by aluminum or you need a near‑finished surface right off the tool, look elsewhere—a non‑loading abrasive or finer grits will serve you better. But for day‑to‑day ferrous metal work, weld cleanup, and reliable chamfering, this wheel earns its place in the drawer.
