DeWalt Demolition Hammer Dust Shroud - Chiseling

Why I reached for a shroud in the first place

Concrete dust from chiseling is the kind of nuisance that turns into a health and cleanup problem fast. I spend a fair amount of time chasing cracks, scaling tile thinset, and breaking out small sections of slab. Running a vac nearby helps, but I’ve never had much luck capturing airborne fines right at the source without a dedicated capture device. That’s what led me to the DeWalt dust shroud designed for demolition hammers.

What it is and how it’s built

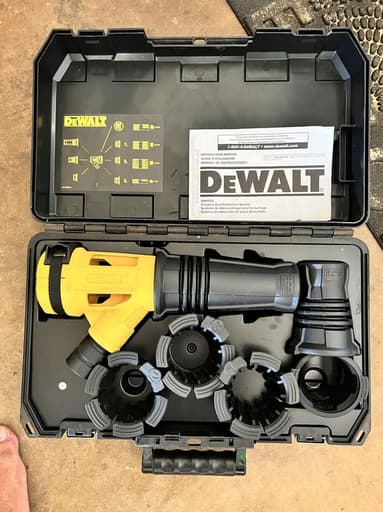

This shroud is a purpose-built attachment that surrounds the chisel and pulls dust through a boot into your extractor. It’s not a grinder guard retrofit or a drilling sleeve; it’s made specifically for chiseling on SDS MAX and 1-1/8-inch hex demolition hammers. The kit includes a base, three interchangeable dust-boot nozzles of different lengths, three tool adapters to match various hammer nose profiles, and a soft kit bag to keep it all together. At about 1.3 pounds, it adds surprisingly little weight at the business end.

The footprint is compact—roughly 15 inches long, under 7 inches wide, and just over 2 inches tall—so it doesn’t turn your hammer into a cartoonish contraption. Build quality feels up to jobsite life: the boot material is flexible enough to slide and seal against a chisel, yet stiff enough to hold shape under suction. The adapters bite firmly and don’t wobble once you’ve picked the right one.

Setup and compatibility

Setup took me a few minutes the first time and under a minute after that. The process is straightforward:
- Pick the adapter that fits your hammer’s nose/collar.
- Slide the base on and snug it down.
- Choose one of the three boot nozzles to match your chisel length.
- Connect a vac hose using DeWalt’s universal connector.

DeWalt optimizes this shroud for chisels between 10 and 18 inches. That range covers the bulk of my bull points, cold chisels, scaling chisels, and bushing tools. With sub-10-inch chisels, the boot sits too close to the nose and you lose space; with very long spades over 18 inches, capture still works but you’ll want the longest boot and to keep the boot positioned mid-travel so it doesn’t bottom out. The boot interior plays nicely with standard profiles—bull point and cold chisel tips seal very predictably. Scaling chisels and bushing tools fit as well, though the wider cutting faces can produce chips that sometimes linger in the boot before getting whisked away.

The universal hose connector is a small but appreciated detail. I ran it on DeWalt’s extractor as well as a generic high-CFM vac with a HEPA filter; the connection stayed secure either way and didn’t pop off when the hose snagged on rubble.

In use: dust capture that actually keeps up

On concrete slab scoring and patch removal, the shroud did what I wanted most: it prevented the gray puff that usually trails each hit. With a proper extractor attached, the fines disappeared into the boot and I could work in front of fans without turning the space into a silica haze. I tested on:
- Mortar and thinset removal with a scaling chisel
- Crack chasing with a bull point
- Surface prep with a bushing tool

In each scenario, airborne dust was dramatically reduced. Larger chips still eject past the boot—this isn’t a chip catcher—but the fines that hang in the air were largely gone. The interior of the boot stayed clear most of the time, though a few stringy thinset bits hung up until the next jab cleared them. If you’re into heavy scaling with wide blades, plan to tap the boot on the work once in a while to keep chips moving.

A note on expectations: the shroud’s performance depends on your extractor’s airflow and filter cleanliness. Paired with an extractor suited for concrete dust (auto filter clean, HEPA), capture efficiency is strong. With a shop vac that struggles to maintain airflow under fine dust load, the boot is less forgiving.

Ergonomics and visibility

Any accessory at the nose of a demo hammer risks adding bulk or restricting movement. The shroud adds some visual mass around the chisel, which reduces your line of sight a touch at awkward angles, especially on vertical surfaces. That said, it doesn’t block the tip entirely, and after a few minutes I stopped thinking about it. The boot telescopes smoothly along the chisel as you work, and it didn’t fight the tool’s movement or steal impact energy.

Balance-wise, the additional 1.3 pounds isn’t noticeable on SDS MAX and 1-1/8-inch hex hammers, which are already substantial. Hose management matters more: keep the hose draped over a shoulder or anchored above to prevent it from tugging the nose downward during delicate work. There’s no swivel at the connector, so a small loop in the hose helps prevent torque from transferring to the tool.

Durability and maintenance

The boot material has held up against concrete slurry, sharp aggregate, and the occasional mis-aimed jab. Expect cosmetic scuffs and some fraying at the boot lip over time—inevitable with chiseling—but I didn’t see cracking or tearing during testing. The base and adapters are stout and don’t loosen under vibration.

Maintenance is straightforward: brush out chips from the boot after dusty runs, wipe the interior to keep the seal surfaces clean, and check for pinholes if you’ve been aggressive around rebar. If your extractor lacks auto filter cleaning, stay ahead of filter clogging; reduced airflow is the fastest way to turn a good shroud into a middling one.

OSHA Table 1 considerations

This shroud is designed to be Table 1 compliant when paired with compatible demolition hammers and a suitable extractor. Practically, that means using an extractor with the right airflow and filtration, following the manufacturer’s pairing guidance, and keeping filters in working order. I appreciate that the shroud gives you a clear path to compliance without resorting solely to respiratory protection, especially indoors or when working near other trades.

What could be better

• Short chisel support: Below 10 inches, the boot starts to crowd the nose and you lose working room. If you rely on stubbier chisels, expect to swap to longer bits or remove the shroud for certain tasks.
• Visibility at odd angles: The boot can obscure the immediate surroundings of the tip when you’re working in corners or under ledges. Not a deal-breaker, but something to be aware of for precise chiseling.
• Chip hang-ups with wide blades: Scaling chisels and bushing heads sometimes shed flake-like chips that pause inside the boot. A brief pause or a tap clears them, but it’s a minor interruption on heavily bonded materials.

Who it’s for

• Pros and serious remodelers who routinely chip, scale, or bush concrete and need to manage silica dust at the source.
• Crews working under Table 1 controls who want a straightforward path to compliance on SDS MAX or 1-1/8-inch hex hammers.
• Anyone tired of vacuuming a roomful of dust after a short chiseling session.

If you’re primarily drilling—or you run a compact SDS-Plus hammer for light-duty work—this isn’t the right accessory. It’s designed specifically for chiseling on larger platforms.

The bottom line

The DeWalt dust shroud does what a good shroud should: it captures the fines that matter without getting in the way of the work. The interchangeable boot lengths make it adaptable across common chisel types between 10 and 18 inches, the universal hose connector plays well with different extractors, and the overall footprint doesn’t torpedo ergonomics. It isn’t a magic shield against flying chips, and it won’t make a weak vac perform like a jobsite extractor, but paired with the right vacuum it meaningfully cuts airborne dust and helps you work cleaner and safer.

Recommendation: I recommend this shroud for anyone running SDS MAX or 1-1/8-inch hex demolition hammers who needs effective dust control during chiseling. Its capture performance, compatibility with common chisel types, and simple setup outweigh the minor trade-offs in visibility and occasional chip hang-ups. If you rely on sub-10-inch chisels or a small SDS-Plus platform, look elsewhere; for the intended tools and tasks, this is a well-executed solution.
