DeWalt 3 in. Bit Holder

Why I reached for this bit holder

Compact extensions are the unsung heroes of fastening work. I needed a short, impact-rated locking holder that could reach into tight cabinetry and electrical enclosures without adding much length or wobble, and that’s what drew me to this 3-inch bit holder. On paper it promised three things I care about: a slim nose for access, a true locking mechanism that won’t spit bits under impact, and a strong magnet to help keep fasteners on the tip.

Design, size, and build

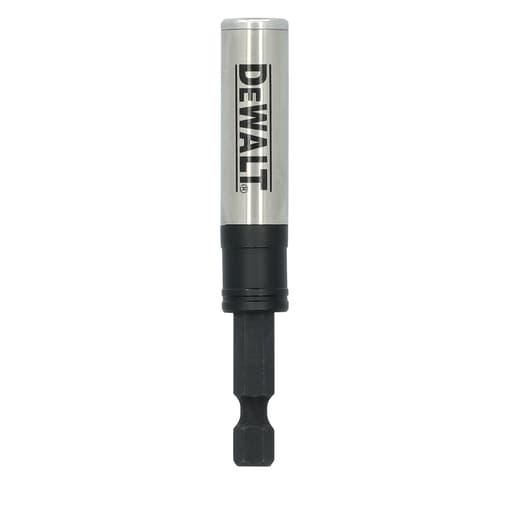

This is a 3-inch, 1/4-inch hex shank holder with a locking sleeve and a rare-earth magnet. The profile at the business end is notably slim—under a half inch—so it sneaks past hinge cups, bracket flanges, and drawer slides better than many chunkier holders. The shank is impact-rated and handled my mid-torque driver without complaint.

Fit and finish are solid. The sleeve has a light knurling and rides with minimal play. Inside, steel detent balls engage bit grooves positively. The weight is modest, and it feels dense rather than hollow, which I appreciate when I’m pushing hard in awkward orientations.

It accepts:
- 1-inch insert bits (the lock captures insert bits fully)
- 2-inch and longer power bits
- Any 1/4-inch hex accessory (nut drivers, countersinks, socket adapters)

It’s sold as a single holder, no case or clip.

The locking mechanism and one-handed changes

The lock is the defining feature. To insert a bit, you can simply push it in until it clicks; the sleeve doesn’t need to be pulled. To remove, you pull the collar toward the driver (backwards), which releases the detents and ejects the bit slightly. The collar travel is short and positive, and with a little practice I could change bits one-handed: pinch the collar with my index finger against the drill body, drop the bit, then seat the next one.

The ejection “pop” is mild—enough to unstick a bit but not to fling it across a room. That’s a small but welcome detail on a jobsite.

Retention strength: secure, but tight out of the box

Retention is very strong. Under impact, bits don’t creep forward, and I never had a bit back itself out during a high-torque lag screw install or while using nut drivers. That’s what a locking holder is for.

However, the first hour with the holder was tight—tighter than many others I own. Insert bits in particular took a firm push to seat, and early on I needed a deliberate, full pull of the collar to release them. After cycling a dozen insertions/removals and a light drop of machine oil on the detents (wipe off any excess to avoid debris buildup), the action smoothed out noticeably. Two practical tips helped:
- Fully retract the collar when removing bits. Half-travel doesn’t release the detents cleanly.
- Use bits with clean, sharp grooves. Burrs or paint on the bit shank make everything feel worse.

If you swap bits constantly, know that this is a positive lock with strong detents, not a loose friction sleeve. I like that for security under impact; the trade-off is a stiffer feel than non-locking magnet-only holders.

Magnet performance and what it actually does

The rare-earth magnet here magnetizes the bit, improving fastener stick. It’s stronger than budget holders I’ve used; short drywall screws and cabinet screws hang on reliably, even at odd angles, and the magnet helps keep hex-head hardware seated in nut drivers.

It’s important to set expectations: this is not a screw-lock sleeve that surrounds the screw head. The magnet assists your bit and fastener; the lock clamps your bit. If you want a sleeve that physically captures the screw head, that’s a different style of accessory. For general-purpose work, the magnet in this holder is plenty useful without adding bulk.

Access in tight spaces

The nose diameter is where this holder earns its keep. I could reach shelf bracket holes without removing the driver bit, and the extra 3 inches gives you just enough stand-off to clear the drill chuck while still working inside face frames. The sleeve sits behind the nose; if you press the sleeve into a bracket or hinge, you can unintentionally retract it and release the bit. It didn’t happen often, but it’s a reminder to approach workpieces squarely when clearance is extremely tight. I also avoid ramming the sleeve into hardware; like any locking collar, it’s a moving part and not a bumper.

Runout and impact use

Runout was minimal—better than average. Using a 2-inch PH2 in this holder, I could drive cabinet screws without the telltale wobble that chews out heads. Under an impact driver, there was no chatter from the sleeve, and the bit didn’t walk forward. Swapping to a socket adapter for hex bolts, the holder transmitted torque cleanly.

If you routinely use 1-inch inserts with a collar-style holder, you’ll appreciate that this one captures inserts fully rather than letting them sit shallow. With longer 2-inch bits, it behaves like a compact extension with the added security of the lock.

Durability and maintenance

After several weeks, the detents still snap crisply, and the sleeve hasn’t loosened. I avoid blasting it with cutting oil or WD-type solvents; a tiny drop of light machine oil on the detent path, then a wipe, was all it needed early on. Keep grit out of the nose—fine metal filings will reduce smoothness in any magnetic holder.

There’s no published warranty on this accessory. That’s common in the world of small driver add-ons, but it does mean you’re on your own if it takes a hard hit and the sleeve gets damaged. Treat the collar as a precision part, not a pry point, and it should hold up.

What could be better

• Out-of-box stiffness: It ships tight. That’s reassuring during impact use, but the initial release effort with insert bits may surprise some users. It does break in.
• Sleeve exposure: In very tight cavities, it’s possible to press the sleeve accidentally. A slightly longer nose or a recessed collar would further reduce unintended contact.
• No storage or tether: A simple clip or a rubber boot would help keep it clean in a pouch.

Who it’s for

• Tradespeople and serious DIYers who want a compact, impact-rated locking holder for high-torque fastening.
• Anyone who values a slim nose and strong bit retention more than lightning-fast, friction-only bit swaps.
• Users who primarily run 2-inch bits but want the option to lock 1-inch inserts securely when space is tight.

If you need a device that physically shrouds screw heads to keep them from falling, look for a screw-holding sleeve accessory instead. This holder magnetizes the bit and locks the bit—two different functions that cover most tasks but not that specific use case.

The bottom line

This 3-inch bit holder balances compact size, strong retention, and a genuinely useful magnet in a way that makes everyday fastening cleaner and more controlled. The lock is confident under impact, one-handed changes are doable with a bit of practice, and the slim nose reaches places bulkier holders won’t. It starts out on the tight side and deserves a quick break-in, and you should be mindful of the collar in cramped corners. Beyond that, it’s a reliable, simple piece of kit that earns a spot in the driver pouch.

Recommendation: I recommend this bit holder for users who want a secure, impact-ready lock in a compact package and can live with a firmer release. If your workflow demands constant, rapid bit swaps with minimal resistance, or if you’re looking for a sleeve that physically holds screw heads, you’ll be happier with a different style of accessory. For most drilling and fastening in tight spaces, this one hits the mark.
