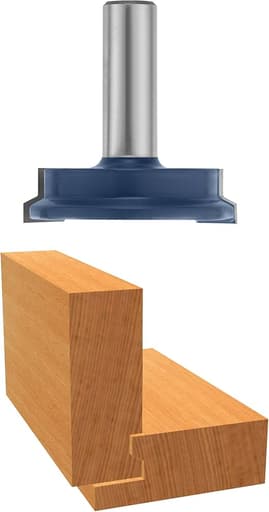

Carbide-Tipped Drawer Lock Joint Bit

Features

  • Cuts drawer-lock (drawer lock) joints that create wedge-shaped tenons for self-alignment
  • Micrograin carbide tips ground for a fine finish and edge retention
  • Fully hardened and tempered steel shank for durability
  • Suitable for producing tightly fitting drawer joints

Specifications

Shank (In) 1/2
Model Number 84512M
Order Number 2608629252
Pack Quantity 1
Width (B) (In) 1/2
Diameter (D) (In) 1

Router bit designed to cut drawer-lock joints that form wedge-shaped tenons to align and secure drawer fronts to drawer sides. It uses carbide tips for cutting and a hardened, tempered steel shank for durability.

Model Number: 84512M

Project Ideas

Business

Flat-Pack Drawer Box Kits

Sell pre-machined drawer kits in standard sizes (1/2–5/8 inch sides) with the lock-joint already cut. Customers glue, clamp, and slide in a bottom panel for a pro-grade result. Offer species options, custom sizes, and wholesale packs for DIYers and makers.


Mobile Drawer Repair/Upgrade

Offer a local service replacing failing stapled drawers in kitchens and baths with lock-jointed birch or maple boxes. Use the bit for quick, consistent joints on-site or in a small shop, upselling soft-close slides and dovetail-look false fronts for a premium finish.


Small-Batch Storage Furniture

Produce and sell apothecary chests, card catalogs, and desktop organizers on Etsy and at markets. The self-aligning joint reduces assembly time, allowing tight QC and good margins. Add personalization (engraving, custom pulls) to command higher price points.


Workshops + Setup Blocks

Run classes teaching perfect drawer-lock setups and safe routing techniques. Sell matching height/fence setup blocks and digital plans, plus a simple sled for repeatable cuts. Monetize via in-person tuition, downloadable guides, and tool affiliate links.


B2B Drawer Box Supply

Supply cabinet shops, designers, and van upfitters with white-label drawer boxes. Standardize on common widths and heights for fast turnaround, using the carbide bit for clean finishes that minimize sanding. Offer lacquered, raw, or UV-cured options with volume pricing.

Creative

Tansu-Style Mini Chest

Build a compact Japanese-inspired chest with a grid of small drawers. Use the drawer-lock bit to self-align 1/2–5/8 inch drawer sides and fronts for fast, repeatable production. Mix contrasting species (e.g., walnut fronts, maple sides) to highlight clean lines and add forged pulls for a refined look.


Apothecary Spice Cabinet

Create a wall-mounted spice/apothecary cabinet with 12–24 tiny drawers. The wedge-shaped tenon joint keeps thin stock drawers square and durable, even with frequent use. Add laser-etched or burned labels and rare-earth magnet catches for a premium, organized kitchen feature.


Visible Lock-Joint Jewelry Box

Turn the drawer-lock profile into a design feature by using a shallow ‘through’ setup and chamfering edges to reveal the geometry. Pair dark fronts with light sides so the wedge detail pops. Line with suede, add dividers, and finish with oil-wax for a boutique presentation.


Stackable Craft Organizers

Produce modular boxes with drawers for thread, beads, or model parts. The self-aligning joint speeds up batches and keeps drawers consistent across stacks. Add 3D-printed or brass pulls, finger-joint-style label plates, and shallow stops to prevent pull-through.


Shop Drawer System Upgrade

Retrofit a workbench or tool cabinet with durable Baltic birch drawers. The drawer-lock joint replaces weak butt/staple construction, holds up to heavy hardware, and stays square. Include inset plywood fronts with routed finger pulls for a clean, utilitarian aesthetic.
