Features

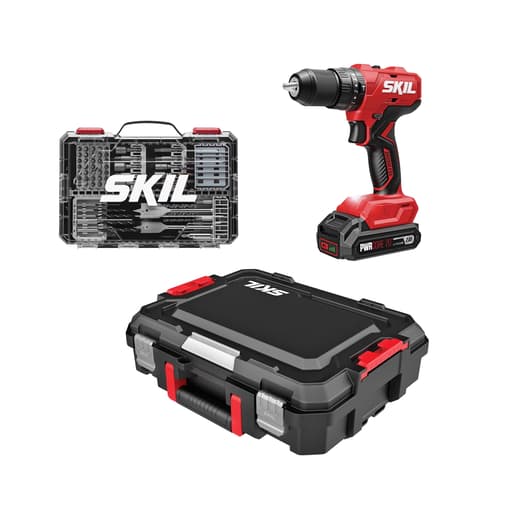

- Includes hammer drill, 20V 2.0Ah battery, 30W charger, suitcase-style carrying case, and 75-piece drill & drive bit set
- 75-piece bit set packaged in an interlocking case that snaps onto the drill carrying case
- Digital brushless motor for higher efficiency and longer motor life
- 1/2-inch single-sleeve keyless ratcheting chuck for tool-free bit changes
- Three operating modes: hammer drill, drill, and screwdriver
- LED worklight with pre-light and afterglow
- 17 torque clutch settings plus drill and hammer settings
- Two-speed gearbox (variable speed)
Specifications
Motor Type | Brushless |
Voltage | 20 V (PWRCORE 20 system) |
Battery | PWRCORE 20 20V 2.0Ah (included) — model BY519701 |
Charger | PWRCORE 20 20V 30W charger (included) — model SC0030B-00 |
Torque | 400 in-lbs |
No Load Speed | 0–450 / 0–1,700 RPM (two gear speeds) |
Impact Rate | 0–6,750 / 0–25,500 IPM |
Clutch Settings | 17 + 1 + 1 (17 torque settings plus drill/hammer positions) |
Chuck Capacity | 1/2 in |
Chuck Type | Keyless single-sleeve, ratcheting |
Illumination | Single LED worklight with pre-light and after-glow |
Controls/Safety | Variable speed trigger, lock-off, spindle lock, electric brake, forward/reverse selector |
Tool Weight | 2.03 lb |
Tool Dimensions | Length 7.13 in, Width 2.66 in, Height 7.87 in |
Included Bit Set (Summary) | 75 pieces — assortment of screwdriving bits (multiple Phillips, square, Torx, slotted, hex), 2" and 1" screwdriving bits, 1-7/8" nut setters, magnetic extension, twist drill bits, brad-point wood bits, carbide hammer masonry bits, spade bits (3/4" and 1") |
Related Tools
Related Articles
Cordless 20V hammer drill with a brushless motor suitable for drilling pilot holes in masonry and for driving screws. The tool supports hammer-drill, drill, and screwdriver modes, and uses a 1/2-inch keyless single-sleeve ratcheting chuck. The kit includes a 20V 2.0Ah battery, a 30W charger, a suitcase-style carrying case, and a 75-piece drill and drive bit set in an interlocking case.
Model Number: HD6280B-11
Skil 20V Brushless Hammer Drill Kit with 75-piece Drill & Drive Bit Set (interlocking case) Review
Why I reached for this kit
I have plenty of drills to choose from, but I grabbed Skil’s 20V brushless hammer drill kit on a few weekends where I knew I’d be hopping between materials—setting Tapcons in brick, drilling pocket holes in softwood, and driving a mix of cabinet screws and structural fasteners. The appeal was obvious: a compact brushless drill, a 2.0Ah battery and charger, and a 75‑piece bit set that rides along in an interlocking case. For a single box to toss in the trunk, this covers a lot of ground.
Setup and first impressions
The drill feels light for its class and the balance with the included 2.0Ah pack is neutral. The 1/2-inch ratcheting, single-sleeve chuck tightens confidently by hand and held on to round-shank twist bits and hex shanks without slipping. The two-ring interface—one ring for torque settings (17 positions) and one for mode (screwdriver, drill, hammer)—is clear and deliberate. The variable speed trigger is smooth with a predictable ramp-up, and the forward/reverse selector has a positive click.
The LED worklight turns on before the chuck spins and lingers for a bit after you let off the trigger. It’s placed low on the base, so it illuminates the work area well enough for cabinet interiors and under-sink work, though like most base-mounted LEDs it can create a slight shadow right under the chuck when you’re close to the surface.
On-paper power vs. real-world tasks
Skil rates the drill at 400 in-lbs of torque with two gear ranges: 0–450 RPM and 0–1,700 RPM, and hammer mode up to 25,500 BPM. Those numbers place it in the “compact, general-purpose” category—stronger and more efficient than brushed DIY drills, but a step below the high-torque pro units.
In practice, that’s exactly how it behaves. For most homeowner and light trade tasks, it’s quick and controllable. For sustained heavy fastening, it can bump up against its limit.
Driving screws and fasteners
I started with a batch of cabinet installs and framing repairs using #8 and #10 wood screws up to 2-1/2 inches. In speed 2 with the clutch engaged around 8–10, the drill drove cleanly without cam-out. The clutch engages predictably and saves hardware and workpieces from over-torque—handy when you’re working with softwoods or MDF.
Moving to deck work, 3-1/2-inch construction screws into pressure-treated 2x stock were better approached in speed 1. With the clutch turned off (drill setting), the tool will drive these home, but it isn’t brisk, and you need to keep steady pressure as the screw approaches full depth. If you leave the clutch on for this length of screw, it will trip early; that’s by design and aligns with the torque rating. For frequent structural fasteners or ledger work, I’d pair this kit with a mid-tier impact driver or move up to a higher-torque drill.
Spade bits are included (3/4 and 1 inch), and the drill handled them in studs and sheathing as long as I stayed in speed 1 and cleared chips periodically. For hole saws in drywall and softwood, it’s fine; in dense hardwoods or when hole-sawing larger diameters, it slows down, which is expected.
Drilling in wood and metal
For wood, the included brad-point bits track well in face frames and cabinetry. Pocket-hole pilot drilling in softwood is a non-issue, and general 1/8–3/8-inch holes are quick in speed 2. For clean, tear-out-free holes in plywood veneers, the lower gear gives good control.
In metal, with sharp twist bits and cutting fluid, I had no trouble with pilot holes and stepped up to 3/8-inch in mild steel plate. Using a center punch and managing speed in low gear kept the drill happy. I wouldn’t pick this for frequent 1/2-inch holes in steel—it’s simply not geared for that kind of sustained load—but for brackets, electrical boxes, and general shop tasks, it performs as expected.
Hammer drilling into masonry
Hammer mode is where this compact drill earns its keep for occasional anchors. The included carbide masonry bits are serviceable for light work. In brick and mortar, 3/16 and 1/4-inch Tapcon holes progressed smoothly at a measured pace. In poured concrete, it will make holes, but it’s noticeably slower, and vibration climbs. For a few anchors here and there, it’s fine; for a day of wedge anchors in cured concrete, you’ll want a rotary hammer.
The extra IPM in speed 2 makes a difference for smaller bits; for 1/4-inch holes in harder material, I found starting in speed 1 to keep the bit from walking, then shifting to speed 2 to finish.
Battery life and charging
With the 2.0Ah pack, I got through a small cabinet job and a handful of masonry anchors before reaching for the charger. The 30W charger isn’t a “rapid” unit; expect roughly an hour to an hour and a half for a full charge depending on temperature and starting level. If you anticipate back-to-back tasks or a full day on site, a second battery is the simplest upgrade. The PWRCORE 20 platform is widely available, so expanding later is straightforward.
Ergonomics and control
The grip feels natural, and the light overall weight reduces fatigue when you’re drilling overhead or working off a ladder. The electric brake stops the chuck quickly, which keeps holes tidy and helps when you’re swapping bits. Spindle lock and the ratcheting chuck make bit changes one-handed once you get the hang of it.
Noise and vibration are typical for the class; hammer mode is buzzy but manageable. I do appreciate the pre-light/afterglow LED in tight spaces. The tool body is compact, and the shorter length pays off in stud bays and under cabinets.
The 75-piece bit set and carrying system
The bit assortment covers the basics: a good spread of 1 and 2-inch driver bits (Phillips, square, Torx, slotted, hex), nut setters, a magnetic extension, brad-point wood bits, standard twist bits, a few spade bits, and carbide masonry bits. It’s a starter set, not a lifetime collection, but I used several pieces without issues. The interlocking bit case snaps onto the main carry case, which is more useful than it sounds—everything travels together, and you’re less likely to forget a needed bit.
The suitcase-style drill case is protective and organized, though a little bulky if you’re just heading inside for a five-minute task. I didn’t see a belt clip in the kit; I missed that a few times when working off a ladder.
Where it shines and where it doesn’t
Strengths:
- Compact, light, and easy to control
- Brushless motor delivers efficient, smooth power
- Clean mode and clutch layout for quick task switching
- Solid 1/2-inch ratcheting chuck holds bits well
- Handy LED with pre-light and afterglow
- The kit’s interlocking bit case genuinely improves portability
Limitations:
- 400 in-lbs torque ceiling shows on longer structural screws and big hole-making
- 2.0Ah battery and 30W charger are fine for light duty; not ideal for all-day work
- Hammer mode is suitable for brick/mortar, less so for hard, cured concrete
- No belt clip in the box
Final take and recommendation
Skil’s 20V brushless hammer drill kit hits a sweet spot for homeowners and serious DIYers who want one box that covers most drilling and driving tasks, including the occasional masonry anchor. It’s comfortable, thoughtfully laid out, and the brushless motor keeps it responsive and efficient. The included 75-piece bit set and interlocking case system add real day-to-day convenience.
I wouldn’t choose this as the primary driver for deck building or as a go-to for heavy concrete work. The torque and hammering action simply aren’t tuned for sustained, high-demand tasks. Pairing it with an impact driver for structural screws, or stepping up to a rotary hammer for lots of concrete, is the right move if those are on your calendar.
Recommendation: I recommend this kit for new homeowners, DIYers, and light-duty pros who value portability and a complete starter package. It’s a capable, easy-to-use drill that covers wood, metal, and basic masonry without fuss. If your workload leans toward long structural fasteners, big hole-making, or frequent concrete anchoring, consider a higher-torque drill and a faster charging setup—or plan to complement this with an impact driver and a spare battery.
Project Ideas
Business
Quick-Mount Pro: TVs, Shelves, Curtains, Art
Offer flat-rate, on-site mounting services across drywall, wood, brick, and concrete. The hammer mode (up to 25,500 IPM) speeds anchor holes in masonry, and 17 clutch settings prevent stripping delicate fixtures. Keep the 75-piece bit set handy for Torx/hex/Phillips fasteners and the interlocking case for rapid setup. Market same-day and evening appointments for renters, homeowners, and small offices.
Retail and Restaurant Fixture Anchoring
Specialize in installing signage, menu boards, bathroom accessories, coat hooks, wire shelving, and light handrails on tile, CMU, and brick. The compact, 2.03 lb drill reduces fatigue for overhead work, and the LED aids in low-light back rooms. Sell per-location install packages and recurring maintenance visits to chains and local shops.
Pop-Up Vendor Display Builder
Design and deliver modular pegboard displays and nesting crates for market vendors and craft fairs. Pre-drill clean peg grids with spade/brad-point bits and assemble with common screw types using the bit kit. Offer custom widths, shelves, and quick-assembly hardware so booths set up in minutes. Upsell branding, paint, and seasonal reconfiguration services.
Short-Term Rental Upgrade Service
Provide turnkey installs for smart locks, key safes, curtain rods, towel bars, coat hooks, floating shelves, and patio string lights. Mix substrates are handled with hammer-drill anchors in masonry and precise clutch control in drywall/wood. Package standardized room upgrades with photo documentation for hosts and property managers.
Home Safety Retrofits
Install grab bars, stair handrails, anti-tip furniture brackets, baby gates, and door reinforcement plates. Use masonry bits and hammer mode to anchor into concrete or brick, and clutch-controlled driving to protect finishes on interior hardware. Partner with senior services and pediatric clinics; offer bundled safety assessments plus install.
Creative
Modular Plywood Pegboard Wall
Build a customizable storage wall from 3/4 in plywood. Lay out a grid and use the included 3/4 in and 1 in spade bits to drill clean, repeatable holes. Make oak or dowel pegs and simple shelf brackets that slot anywhere. Mount panels to studs or anchor into brick/block using hammer mode with the carbide masonry bits. The clutch and low-speed gearbox help prevent tear-out when drilling and overdriving screws, and the LED is handy in dim garages.
Brick-Mounted Vertical Herb Garden
Construct cedar planter boxes and a pair of French cleats or L-brackets. Predrill boards with brad-point bits for clean holes and drive stainless screws using a light clutch setting. Use hammer-drill mode with masonry bits to set anchors in brick or block, then hang the planters in staggered tiers. Add a drip tray and label plates for a functional, space-saving green wall on patios or balconies.
Live-Edge Floating Shelf Trio
Mill or buy live-edge slabs and install floating shelf brackets. Drill pilot holes with twist bits, then switch to driver mode to sink lag screws into studs, or use hammer mode to anchor into masonry walls. Use the variable speed for precise starts and the ratcheting chuck for quick bit changes. Finish with oil or hardwax and stage the shelves in a gallery-style, staggered arrangement.
Mid-Century Dowel-Leg Plant Stands
Create plant stands with cross-braced frames and dowel legs. Use spade bits to bore 3/4 in mortises for dowels, brad-point bits for pilot holes, and the clutch to avoid splitting when driving screws. Make multiple heights and ring sizes to fit common pots. For outdoor setups, drill masonry anchor holes to secure stands or base plates to patios or block planters.
Backyard String-Light Poles with Concrete Anchors
Build 4x4 posts on metal base plates and anchor them to a concrete slab or block wall. Mark and drill 3–4 holes per base using hammer mode and the carbide masonry bits, then install sleeve anchors. Add eye bolts and a tensioned cable for string lights. The LED worklight helps with dusk installs, while the two-speed gearbox makes quick work of driving hardware.
