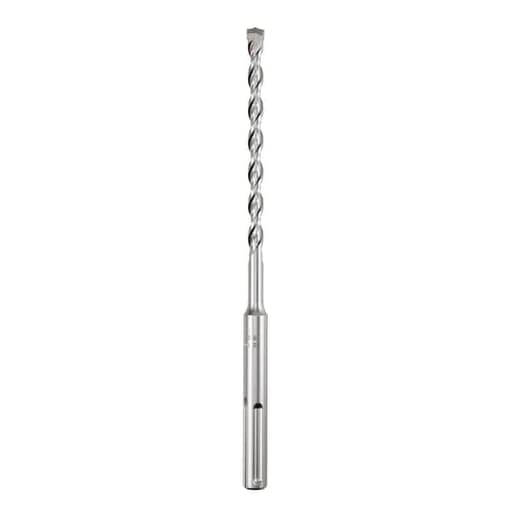

DeWalt 1/2" x 8" x 13-1/2" 2 Cutter SDS Max Rotary Hammer Bit

Why I reached for this bit

I reached for the DW5803 on a recent anchor install where switching to a smaller rotary hammer wasn’t an option. The crew was already running SDS Max hammers for larger holes, and we needed a dependable 1/2-inch bit with enough working length to punch through cured concrete, filled CMU, and a few lifted pours with rough aggregate. On paper, this bit checks the right boxes: a two-cutter carbide tip, an open-head profile to guide debris, a U-flute for evacuation, and a hardened core to resist breakage. In practice, it behaved exactly like a good SDS Max bit should—fast, straightforward, and tough—with a few trade-offs that are worth understanding before you buy.

Setup and compatibility

This is an SDS Max shank, so it’s intended for full-size rotary hammers. If your everyday 1/2-inch holes are handled by an SDS Plus rig, you’ll notice the jump in tool weight and impact energy. The benefit is stability and speed, especially in hard material. The 8-inch working length and 13-1/2-inch overall length gave me enough reach to go through sill plates and into the slab, and to clear block faces and get the embedment depth I wanted without struggling to keep the hammer square to the work.

The bit locked up with minimal play in three different hammers I used (Bosch, Hilti, and DeWalt), and I didn’t see any unusual runout. That matters; a 1/2-inch anchor hole needs to be true to avoid fighting sleeve anchors or compromising epoxy bond.

Drilling speed and consistency

In cured slab and stem wall concrete, the DW5803 is quick. The two-cutter carbide tip bites fast, and the bit tracks straight once it’s started. I was consistently drilling 1/2-inch by 4-inch embedments in a matter of seconds on a mid-size SDS Max hammer at moderate trigger. What stood out was how little I had to feather the hammer to keep the dust flowing; the open-head geometry does seem to funnel fines efficiently into the flutes, which helps maintain speed instead of packing up.

On high-aggregate mixes, the bit didn’t stall or chatter excessively. Two-cutter designs generally prioritize speed over smoothness, and that’s the case here. You feel a crisp, direct cut rather than the “polished” feel of a four-cutter head. For production work with wedge anchors or mechanical anchors where speed and repeatability trump finish, this is a good match.

Hole quality and starting accuracy

The only time I had to slow down was when starting holes on slick, troweled surfaces. There’s no centering point on this head, so it can skate a hair if you’re not deliberate. My workaround: score the surface with a tap in rotation-only, or use a punch mark, then engage hammer mode. Once started, the bit stays on track well.

Hole roundness and diameter were within spec for the anchors I used, and sleeve anchors seated cleanly without reaming. If you’re drilling for adhesive anchors, the sidewall finish is more than adequate as long as you follow your usual clean-out routine. Expect a bit more breakout on the backside of thin material compared to a four-cutter—nothing dramatic, but worth noting if you need a pristine exit hole.

Debris evacuation and dust control

The U-shaped flutes clear dry dust quickly. In dry drilling, I rarely needed to withdraw the bit to clean the hole mid-pass, even on deeper 6–8 inch holes. In damp or green concrete, slurry can cake in the flutes, which is a common issue; a quick pulse to back the bit out clears it. The open-head design helps here—it seems to keep debris moving rather than churning at the tip.

Hooked up to a shrouded dust extractor, the bit plays fine with jobsite dust control. If you’re chasing strict dust standards or indoor work on occupied sites, hollow-core extraction bits are a step up, but they’re also slower and pricier. For typical exterior or rough-in work with a vac and shroud, this bit is a practical balance.

Durability and tip life

Carbide longevity is the question that makes or breaks a rotary hammer bit. After several days of anchor installs and utility penetrations across different pours and a handful of CMU cells with high pea gravel content, the cutting edges still felt sharp, and drilling speed hadn’t fallen off much. The head shows normal burnishing but no chipping on the cutting lips.

I didn’t break the core or twist the shank, and that’s not a given with long, narrow bits in hard material. The hardened core seems to earn its keep. Still, standard cautions apply: if you bind the bit and muscle the hammer to free it, you can stress the core. Let the hammer do the work, pulse out of jams, and keep the bit from overheating with continuous, heavy-handed pressure.

Rebar strikes and reinforcement

This is a two-cutter head, not a rebar-cutting bit. When I grazed light wire mesh, it snapped through fine. On a couple of #3 bar strikes, the bit protested, as expected, and I backed out rather than forcing it. If you know you’ll hit rebar, switch to a dedicated rebar-cutting bit or a four-cutter design rated for reinforcement. Pushing a two-cutter through bar is a quick way to chip carbide and shorten the bit’s life.

Vibration and user feel

Compared with multi-cutter heads, a two-cutter transfers a bit more feedback to the user. With a substantial SDS Max hammer, the overall vibration is still manageable; the weight of the machine soaks up a lot of it. I could run this all morning without hand fatigue getting out of line, but you’ll notice a slightly harsher feel in aggregate-heavy material. In exchange, it’s snappy and responsive—especially appreciated when you’re moving from mark to mark doing repetitive anchors.

Value and where it fits

For a 1/2-inch hole, plenty of crews default to SDS Plus. If you already own an SDS Max rotary hammer and want to keep a single platform on deck, this bit earns its place. It’s faster, tracks well, and holds an edge respectably across many holes. Price-wise, it sits where I expect a pro-grade SDS Max bit to be. You can spend more for a four-cutter or a premium rebar-rated head if your work demands it, but for general concrete and masonry drilling on an SDS Max tool, the DW5803 feels like the right balance of cost and performance.

Limitations to keep in mind

• Starting on smooth, hard surfaces can require a scored pilot to prevent wandering.
• Not the right choice if you anticipate frequent rebar strikes.
• Two-cutter geometry favors speed over the ultra-smooth hole profile you get from four-cutters.
• If you only occasionally drill 1/2-inch holes and don’t own an SDS Max hammer, an SDS Plus setup will be lighter and cheaper.

None of these are deal-breakers in the right context—they’re characteristics of the design and shank class.

Tips for best results

• Mark and tap a shallow divot in rotation-only before engaging hammer mode on slick surfaces.
• Use steady pressure; don’t lean on the tool. Let the hammer action do the cutting.
• Pulse the bit out of the hole on deeper passes to maintain dust flow and reduce heat.
• If reinforcement is likely, scan first or have a rebar-cutting bit ready.
• Clean holes per anchor spec (brush-blow-brush or vac) to take full advantage of the hole quality.

The bottom line

The DW5803 is a straightforward, durable SDS Max masonry bit that prioritizes speed and reliability over bells and whistles. It drills fast, clears debris efficiently, and holds an edge longer than I expected for a two-cutter design. The open head and U-flute combination keep the cut moving, and the hardened core inspires confidence when you’re deep in a hole on a heavy hammer. It’s not the bit I’d pick for chewing through rebar or for pristine exit holes in architectural concrete, but for day-in, day-out anchor drilling and utility penetrations in cured concrete and masonry, it earns its spot in the kit.

Recommendation: I recommend this bit for crews running SDS Max hammers who need a dependable, fast 1/2-inch solution for concrete and masonry. Choose it for production anchor work and general drilling where speed and durability matter. If you regularly hit rebar or want the smoothest possible hole profile, consider a four-cutter or a rebar-rated alternative. If you don’t own an SDS Max hammer, stick with an SDS Plus bit instead.
