Features
- 10 A motor rated up to 4,800 RPM
- LED shadow line for cut alignment
- Fixed compact rail system for flush-to-wall cutting
- Single bevel (0° to 45° left)
- Quick miter lock for fast angle adjustments
- Miter detents at common angles (0°, 15°, 22.5°, 31.6°, 45° left/right)
- Expansive miter range (0–47° left, 0–50° right)
- Work clamp to secure material
- Lightweight and compact design (tool under 25 lb)
- Includes dust bag, double-ended Allen wrench, work clamp, and 7-1/4 in 24T carbide blade
Specifications
Weight | Under 25 lb |
Bevel Type | Single |
Blade Teeth | 24 carbide |
Cord Length | 6 ft |
Input Power | 10 A |
Miter Detents | 0°, 15°, 22.5°, 31.6°, 45° (L & R) |
No Load Speed | 4,800 RPM |
Blade Diameter | 7-1/4 in |
Max Miter Angle | Left 0–47° / Right 0–50° |
Dust Port Diameter | 1-1/4 in |
Included Accessories | Dust bag; double-ended Allen wrench; work clamp; 7-1/4 in 24T carbide blade |
Max Bevel Angle (Left) | 0–45° |
Blade Arbor Hole Diameter | 5/8 in |
Input Voltage / Frequency | 60 (Hz) |
Base Molding Against Fence | 3-1/5 in |
Max Cutting Capacity (Crown Nested) | 3-1/2 in |
Max Cutting Capacity (0° Miter / 0° Bevel) | 2x10 |
Max Cutting Capacity (45° Miter / 0° Bevel) | 2x6 |
Max Cutting Capacity (0° Miter / 45° Left Bevel) | 2x10 |
Related Tools
Related Articles

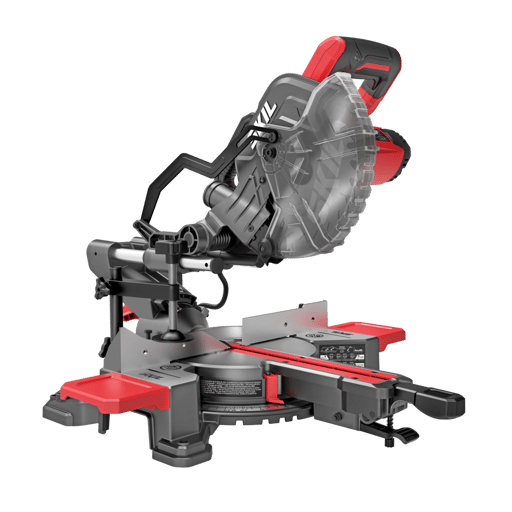

Sliding single-bevel miter saw with a 10 A motor and 7-1/4 in blade, intended for cutting baseboards, casing, crown moulding, and general crosscuts. It uses an LED shadow line for alignment, a compact rail system for flush-to-wall work, and a quick miter lock for angle adjustments. The saw is relatively lightweight for transport and storage and includes basic accessories for setup and use.
Model Number: MS6316-00
Skil 10 Amp 7-1/4 In. Single Bevel Sliding Miter Saw Review
A compact slider that punches above its weight
I put the Skil 7-1/4-in sliding miter saw to work on a week’s worth of trim, casing, and punch-list tasks to see where a small-format slider shines and where it runs out of runway. After living with it on a stand and hauling it into a few rooms, I came away impressed by how much capability Skil squeezed into a saw that’s under 25 pounds and small enough to tuck against a wall.
Setup and first cuts
Out of the box, assembly is minimal: install the included 7-1/4-in, 24-tooth blade, attach the dust bag and work clamp, and check calibration. Mine arrived close to square; the fence and table were within a hair of 90 degrees to the blade. A few minutes with a square and the included wrench had everything dead-on. The miter scale lined up well at 0°, and the common detents at 15°, 22.5°, 31.6°, and 45° engaged positively without slop.
The LED shadow line is a highlight. Instead of a laser that can fall out of calibration, LEDs cast the blade’s exact kerf onto the work. It’s bright, even in a well-lit shop, and I could split pencil lines reliably. Because the shadow is formed by the blade itself, it remains accurate even if you swap blades.
Build, footprint, and portability
For a sliding saw, the footprint is exceptionally friendly. The fixed, compact rail system lets the saw operate flush to a wall, which is a boon in tight garages or when you’re set up in a hallway. There’s enough travel to handle common trim sizes without the rails protruding behind the saw.
Portability is where this saw earns its keep. At under 25 pounds with a manageable 6-foot cord, it’s easy to carry in one hand and set up quickly. It doesn’t feel flimsy; the base is rigid, the fence faces are flat, and the slide action is smooth out of the box. There’s some plastic in the guards and knobs, as you’d expect at this size, but nothing struck me as fragile. I’d have no hesitation throwing it in the truck for onsite work.
Power and capacity
A 10-amp motor spinning at 4,800 RPM won’t match the grunt of a 12-in saw, but it’s plenty for what this tool is aimed at—baseboards, casing, shoe, and light framing cuts. Feeding at a reasonable pace, I crosscut 2x10s at 90° cleanly, which aligns with the stated capacity. At 45° miter, it will take a 2x6. For trim, the nested crown capacity tops out at 3-1/2 in., and base against the fence at just over 3 in. That covers a lot of builder-grade profiles, though larger, ornate crown will exceed its reach.
The single-bevel design tilts 0–45° to the left. If you’re used to dual-bevel convenience, you’ll need to flip stock for some compound cuts. It’s a reasonable tradeoff at this size and price. For crown, the 31.6° miter detent is handy, and combined with the 45° bevel you can hit standard spring angles without fuss.
Accuracy and cut quality
With the factory 24T blade, cut quality is fine for framing and rough carpentry. On paint-grade trim, I saw the expected fuzz and minor tearout—typical of a coarse blade. Swapping to a 60- or 80-tooth finish blade transformed the saw. Paired with the LED shadow line, I was consistently getting tight, glue-ready miters in poplar and pine. The fence is straight and tall enough for most casing, and the table is flat, so parts don’t rock.
The slide mechanism has minimal play, which helps maintain square cuts at full extension. I like to pull the head forward, start the saw, drop into the work, and push back; the saw tracked well through that motion, and I didn’t have to fight deflection on 2x stock.
Controls and ergonomics
Skil did a nice job with the user interface:
- The quick miter lock lever is fast to flip, and the detents feel positive without being sticky.
- The bevel lock is accessible and locks down securely. There aren’t micro-adjust features here, but the scale is legible and accurate enough once set.
- The included work clamp is simple and actually useful; it’s easy to move side to side and holds narrow stock securely, which is especially welcome on a small saw.
The handle position is comfortable for right- or left-handed use, and visibility to the cut line is excellent, with the guard retracting smoothly. Noise is what I expect from a small high-RPM saw—use hearing protection—but vibration is well controlled. I wish the trigger had a slightly softer start, but there’s no harsh kick.
Dust collection
Out of the box, the dust bag catches the usual fraction of chips. The port size is 1-1/4 in., which makes it easy to hook up to a compact shop vac; with extraction running, collection improves significantly for crosscuts. Bevel cuts still throw some fines forward, as they do on most compact sliders. If you connect a larger vac, you’ll likely need an adapter from 1-1/4 to 1-7/8 or 2-1/2 in.
What I learned after a week
A few observations stood out with repeated use:
- The compact rails are genuinely useful. Being able to park the saw close to a wall keeps walkways clear in finished spaces.
- The miter scale stayed true after transport. I checked calibration after a couple of trips and didn’t have to tweak it.
- The 6-ft cord is just okay. Plan on an extension cord for most jobsite setups.
- The small blade rewards good habits. Using a zero-clearance fence or backer board dramatically reduces chip-out and supports tiny returns that might otherwise get snagged.
Limitations and nitpicks
- Single bevel. Not a dealbreaker, but flipping stock for opposite bevels adds time if you’re doing repetitive compound cuts.
- Blade size. A 7-1/4-in blade limits vertical capacity. If you regularly cut tall base or large crown nested against the fence, you’ll outgrow this quickly.
- Included blade. It’s serviceable, but a fine-tooth upgrade is almost mandatory for finish trim.
- Dust bag performance. Typical of miter saws—better with a vac.
- No mention of an electric brake in the materials I saw, and coast-down is a bit longer than on some pro saws I use.
None of these are surprising at this class and price, but they’re worth noting to set expectations.
Who it’s for
This saw is an excellent fit for:
- DIYers and homeowners tackling trim, flooring, and general carpentry who value light weight and small size.
- Pros who want a compact secondary saw for punch lists, tight spaces, or indoor work where dragging in a 10- or 12-in saw is overkill.
- Remodelers working in occupied homes who need a flush-to-wall slider that won’t dominate a room.
If your work routinely involves large crown, wide base, or thick hardwoods, a larger dual-bevel saw will save time and expand your options.
Bottom line and recommendation
After a week of real tasks—baseboard runs, casing a couple of doors, cutting shelving, and occasional 2x crosscuts—the Skil 7-1/4-in slider proved reliable, accurate, and easy to live with. The LED shadow line makes alignment fast and trustworthy, the compact rails keep the footprint tiny, and the miter detents are right where you want them. Power is appropriate for the blade size, and with a better finish blade installed, the cut quality steps up to genuine trim work.
I recommend this saw for anyone who needs a portable, space-conscious miter saw for trim and general crosscutting. It’s not a replacement for a big dual-bevel slider in a production trim setup, but as a primary tool for DIYers or a nimble secondary saw for pros, it offers strong accuracy, thoughtful features, and real-world capacity in a very manageable package. Upgrade the blade, hook up a vac, and it will earn its spot on your stand.
Project Ideas
Business
Mobile Trim & Casing Micro-Service
Offer on-site baseboard, door casing, and small crown installs, ideal for condos and punch-list work. The compact rail system sits flush to walls in tight spaces, and the LED shadow line speeds precise cuts on occupied jobs.
Pop-Up Custom Picture Framing
Set up at markets or in-store events to make while-you-wait frames. Pre-finish stock, cut to size with accurate 45° miters, and assemble on-site. Upsell mats, glass, and hardware for a high-margin, portable service.
Geometric Decor Shop (Etsy/Local)
Produce herringbone art, hex shelves, and chevron wall panels in standard sizes. Batch your angles (15°, 22.5°, 31.6°, 45°) using detents for repeatability, brand the backs, and ship flat with mounting templates.
Event Backdrops & Signage Frames
Fabricate modular photo backdrops, arches, and mitered frames for weddings and pop-ups. The saw’s portability is perfect for on-site adjustments, and the wide miter range handles polygon frames and scenic elements.
Rental Turnover Refresh Packages
Sell fast upgrades: replace baseboards, add a simple slat or picture-frame accent wall, and install ledges. Price per room/linear foot, schedule multiple units per day, and leverage the lightweight saw for quick, clean setups.
Creative
Geometric Wall Art Panels
Create herringbone, chevron, or sunburst wall panels using repeatable 22.5° and 45° cuts. The saw’s miter detents and LED shadow line make batch cuts consistent, and the sliding action handles wide slats or 1x10 backers for large, statement pieces.
Hexagon Floating Shelves
Build sets of hex shelves by cutting precise 30° miters on 1x6 or 1x8 stock, then glue and brad-nail. Use the expansive miter range and shadow line for tight joints. Mix woods and sizes for a honeycomb wall display.
Mitered Picture Frames with Spline Accents
Cut 45° miters for frames, then add decorative splines in contrasting wood. The quick miter lock speeds angle changes for different frame profiles, and the lightweight saw makes it easy to set up a temporary framing station.
LED-Lit Crown Ledge
Make a shallow, mitered picture ledge or crown-style shelf with 45° corner joints. Nest small crown (up to 3-1/2 in) against the fence and create a subtle cove for LED strips to wash light up the wall.
Modern Planter Boxes with Beveled Corners
Build indoor/outdoor planters from 1x or 2x stock using 45° miters and beveled top caps. The saw’s sliding capacity lets you cut wider boards cleanly; add decorative slats or angled legs for a refined look.
