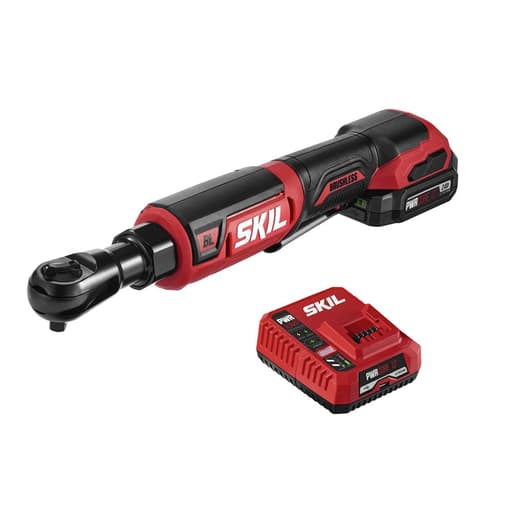

Skil PWR CORE 12 Brushless 12V 3/8 In. Ratchet Wrench Kit

PWR CORE 12 Brushless 12V 3/8 In. Ratchet Wrench Kit

Features

  • Includes tool, 12V 2.0Ah USB‑C battery, 20W USB‑C charger, USB‑C cable, and 3/8" to 1/4" socket adapter
  • Brushless motor for more compact, efficient operation
  • Variable speed trigger for controlled speed up to 220 RPM
  • Delivers up to 55 ft‑lb of powered torque
  • High‑strength structure supports up to 150 ft‑lb of manual torque
  • Low‑profile head for access in confined spaces
  • Integrated LED with pre‑light and after‑glow for working in low light
  • Battery provides two‑way charging (can charge devices)

Specifications

Voltage 12 V
Motor Brushless
No‑Load Speed 0–220 RPM
Max Powered Torque 55 ft‑lb
Max Manual Ratcheting Torque 150 ft‑lb
Anvil Size 3/8 in
Anvil Type Pin detent
Tool Length 15.5 in
Tool Height 2.71 in
Tool Width 2.67 in
Tool Weight 2.95 lb
Battery PWR CORE 12 2.0Ah 12V USB‑C
Charger 20W USB‑C PD charger (included) / PWR JUMP™ on alternate kit
Included Accessories USB‑C charging cable; 3/8" to 1/4" socket adapter

Cordless 12V brushless ratchet wrench designed for access in tight spaces. It provides variable-speed operation up to 220 RPM and a maximum output torque of 55 ft‑lb. The tool includes an integrated LED for work-area illumination and is supplied in a kit with a 12V 2.0Ah USB‑C battery, USB‑C charger and cable, and a 3/8" to 1/4" socket adapter.

Model Number: RW5763A-11

Skil PWR CORE 12 Brushless 12V 3/8 In. Ratchet Wrench Kit Review

4.8 out of 5

A compact torque helper that earns its spot in the drawer

A power ratchet is one of those tools you don’t realize you’re missing until you’ve used a good one. After several weekends of automotive maintenance and small-engine tinkering with Skil’s 12V brushless ratchet, I came away impressed by how much time and effort it saved—within the limits of what a 12V ratchet is designed to do.

Build, size, and ergonomics

This is a sturdy, no-nonsense tool. The head is low-profile, the housing feels rigid, and the anvil uses a pin detent that holds sockets securely without drama. Socket swaps aren’t as quick as a friction ring, but I appreciated the retention when snaking extensions through crowded engine bays.

At 15.5 inches long and roughly 3 pounds with the 2.0Ah battery, it’s a touch longer and heavier than some other 12V options I’ve used. The upside to that extra length is reach and leverage when you need to break a fastener manually. The grip contour works with and without gloves, the forward/reverse selector is positive, and the trigger is easy to feather.

Skil put a lot of thought into the LED work light. It has a pre-light (illuminates before rotation) and after-glow, which sounds minor until you’re aligning a socket on a hidden fastener or inspecting threads after removal. It’s genuinely helpful.

Speed control and user experience

The variable-speed trigger is the star here. It’s smooth and predictable from a slow crawl to full speed, topping out at a measured 220 RPM. That control matters. I could ease fasteners out of plastic housings or aluminum castings without the sudden jolt that sends knuckles into crossmembers. Starting delicate fasteners and then ramping up speed felt natural, and I never felt out of control even in tight spaces.

The brushless motor keeps things efficient and cool. There’s very little gear lash or slop at the head, and the tool exhibits a confident, mechanical “whirr” rather than a buzzy, strained tone. Vibration is low; after a couple of hours of intermittent use, I didn’t feel fatigued in the hands or forearms.

Torque: what it will and won’t do

Skil rates powered torque at up to 55 ft-lb, and that aligns with my use. For common 10–14 mm fasteners under the hood, interior work, mower decks, and general small-engine jobs, it powered them out quickly. It’s excellent for spinning long bolts and studs once they’re cracked loose.

Where it hits the wall is exactly where you’d expect for a 12V ratchet: stubborn, high-torque fasteners. Think over-tightened mower blade bolts, rusty suspension hardware, or anything north of about 60 ft-lb. On a mower blade that had been torqued around 85 ft-lb, the ratchet stalled—as it should. The key here is the tool’s high-strength structure rated for up to 150 ft-lb of manual torque. I used it as a conventional ratchet to break fasteners free, then pulled the trigger to zip them off. Used that way, it’s both safe and efficient.

If you routinely need to break 80–120 ft-lb fasteners with power, you’re shopping in impact wrench territory. For everything else, this ratchet is the right tool.

Access and versatility in tight spaces

Access is where this tool shines. The head is slim enough to live between intake runners, straddle bracketry, and squeeze behind alternators. I ran it through the common contortions: wobble extensions, universal joints, and a mix of 3/8 and 1/4 inch sockets. The included 3/8" to 1/4" adapter is a practical touch; it let me drop to smaller fasteners without changing tools.

Because the head doesn’t require swing arc like a hand ratchet, I could remove fasteners in places where a normal ratchet would ratchet… but not actually rotate. That’s the whole point of a powered ratchet, and this one executes well.

Battery, charging, and runtime

The kit’s 2.0Ah 12V battery and 20W USB‑C charger are more useful than they look on paper. Being able to charge over USB‑C means I can top it up with the same cable I use for my phone, in the truck or at the bench. The battery also provides two‑way charging, so it doubles as a power bank in a pinch—handy if you’re running a service light or need to top off a phone during a long job.

Runtime with the 2.0Ah pack is solid for the tool’s class. On a mixed job of interior panels, throttle body, and a few engine-cover bolts, I watched the meter drop a bar after dozens of fastener cycles. If you plan a full day of wrenching, a second pack is smart, but for typical maintenance and repair tasks, one battery gets you surprisingly far.

Charging from empty to full with the included 20W USB‑C charger was respectably quick in my testing, and cable management is simpler than with proprietary brick chargers. It’s a small quality-of-life improvement that adds up.

Durability and maintenance

The ratchet took a couple of unintentional drops from bench height onto concrete and shrugged them off with minor scuffing. The anvil stayed tight, and the trigger feel didn’t change. Internally, brushless designs tend to handle regular use better than brushed equivalents, and I didn’t detect any heat soak or performance fade during extended sessions.

The pin detent remains positive and hasn’t loosened. As with any ratchet, I avoid using cheater bars for manual torque, but leaning into it within the 150 ft‑lb rating felt secure. No odd noises, no grinding, and no play developing at the head.

Small touches that add up

  • The pre-light and after-glow LED is genuinely useful.
  • Pin detent anvil means fewer dropped sockets in awkward spots.
  • The kit’s 3/8" to 1/4" adapter eliminates a common annoyance.
  • USB‑C two‑way charging adds real convenience on the go.

These aren’t headline features, but they’re the things you appreciate after you’ve used the tool for a while.

Trade-offs and things to know

  • Size and weight: It’s slightly longer and heavier than some 12V rivals. Not a deal-breaker, but worth knowing if your priority is the smallest possible head/handle combo.
  • Pin detent vs friction ring: Better retention, a bit slower socket changes.
  • Torque ceiling: 55 ft‑lb powered torque is the design limit. Plan to break big fasteners manually or reach for an impact.

None of these are flaws; they’re the natural compromises of a 12V brushless ratchet built with a robust head and housing.

Who it’s for

  • DIYers and pros tackling general automotive maintenance, small-engine repair, appliance service, and assembly/disassembly work where speed and access matter.
  • Anyone who values precise trigger control to avoid knuckle-busting starts or overdriving into delicate materials.
  • Users who appreciate the convenience of USB‑C charging on a 12V platform.

If your daily work is heavy suspension and chassis hardware, this isn’t your primary removal tool—but it’s a fantastic companion.

The bottom line

Skil’s 12V brushless ratchet hits the sweet spot for control, access, and day-to-day utility. The variable-speed trigger is excellent, the head design gets into places a hand ratchet can’t work effectively, and the build feels ready for real use. I enjoyed the practicality of the USB‑C ecosystem and the thoughtful LED behavior. The powered torque limit is real, but it’s also appropriate for the category, and the tool’s manual torque rating means you can still get stubborn fasteners moving safely before letting the motor take over.

Recommendation: I recommend this tool. It’s a well-executed 12V ratchet that balances control, durability, and smart usability features. If you understand its torque limits and plan to pair it with a breaker bar or impact for the big stuff, it will speed up your work, spare your hands, and earn its keep in your toolbox.
