DeWalt Dust Port Connector

A simple add-on that makes a messy tool more manageable

Dust control on a worm-drive-style circular saw is notoriously tricky. The cut path throws chips forward and out, and the guard vents don’t do us any favors. I picked up DeWalt’s dust port adapter to tame the spray on my DCS577 rear-handle saw, hoping for a real improvement without turning the tool into a hose-tethered headache. After a steady week of ripping framing lumber, breaking down sheet goods, and a few bevel runs, I’ve got a clear sense of where this adapter shines and where it doesn’t.

What it is

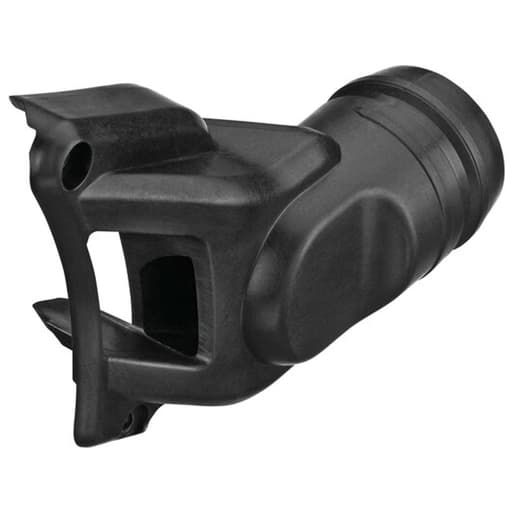

The adapter is a compact, black, bolt-on port that mates the saw to a vacuum or dust extractor. It’s purpose-built for the DCS577 (7-1/4 in.) and accepts a standard 1-1/2 in. hose ID. It’s compatible with DeWalt’s DWV9150 and DWV9100 adapters, which is helpful if you’re already running one of their extractors. The kit includes the port body, the fastening screws, and instructions. At about 4.64 oz (0.29 lb) and roughly 7 x 4.8 x 2.4 inches, it’s small and light enough that you don’t notice the added mass once it’s on the saw.

Installation and fit

Install took me about five minutes. The directions are straightforward, and the included screws thread into the existing boss points on the saw. You’ll want the driver bit that matches the supplied screws and a clear bench to rest the saw. The adapter nests cleanly against the guard, and once tightened there was no rattle or misalignment. The port exit sits out of the blade path and doesn’t conflict with the lower guard or bevel range on my saw.

One note: take a second to check the lower guard action after installation. Mine returned freely, but I always flick the guard a few times to confirm nothing binds before the first cut.

Hose and extractor compatibility

With a 1-1/2 in. hose, the fit is snug and secure—no tape needed. I also tried it with DeWalt’s DWV9150 and DWV9100 fittings; both mated as advertised and simplified moving between tools. If your setup is based around 2-1/2 in. shop-vac hoses or smaller 1-1/4 in. hoses, plan on a step-up/step-down coupler. The port itself is rigid plastic, so I’d avoid forcing an oversize connector; use a proper adapter or a short rubber cuff for a reliable seal.

Route matters. I got the best results draping a lightweight, flexible hose over my shoulder so it fell behind me rather than across the work. A stiff hose tugging sideways will make the saw feel awkward.

On-tool feel

The adapter doesn’t change the saw’s balance in any noticeable way. It doesn’t protrude into my grip or catch on my glove. At 0.29 lb, it’s a rounding error compared to the saw. The only ergonomic change is the hose: on a 90-degree cut with a soft hose, it’s a non-issue. At a 45-degree bevel, clearance gets tighter, and a kink-prone hose can rub the shoe. Route the hose high and give yourself a bit of slack before committing to long bevel cuts.

Collection performance

With a capable extractor, the adapter cuts down the mess considerably—but it’s not a total capture system. Here’s how it played out for me:

• Straight rips in 2x SPF with a 24T framing blade: Most of the chips and a good portion of the dust made it into the vac. The floor around the cut line stayed relatively clean, and there was far less airborne debris than running the saw bare. I’d estimate 60–80% capture depending on feed rate and cut depth.

• Plywood crosscuts with a 40T blade: Finer debris is harder to corral. The adapter still pulled a meaningful amount, but I could see dust slipping out from vent gaps on the guard and at the shoe. Cleanup was reduced, not eliminated.

• Bevel cuts at 45 degrees: Capture dropped. Changing the ejection geometry lets more chips escape forward. I still preferred having the adapter on, but expect more cleanup afterward.

• Outdoor vs. indoor: Outdoors, the adapter keeps the work area much tidier and reduces blowback. Indoors (small shop, limited airflow), it’s a noticeable improvement for air quality, though I still wore a respirator and ran ambient filtration for fine dust.

The biggest determinants of performance were airflow (a strong extractor helps), sealing (tight hose connection), and technique (feeding at a steady rate and keeping the cut depth just below the stock). If I buried the blade deeper than necessary or rushed the cut, more chips escaped.

Build quality and durability

The plastic body is rigid with clean molding, and the flange that bolts to the saw feels robust enough for jobsite handling. I tossed the tool, hose attached, into the back of the truck a few times. No cracks, no stress whitening. The port’s round spigot stayed true, which matters for a repeatable hose seal. Screws stayed tight over the week—still, I’d add a quick check to your monthly maintenance routine.

Maintenance and day-to-day use

There’s not much to maintain. Occasionally a chip string will collect near the inlet; a quick blow-out keeps things clear. If you cut wet lumber, resin can accumulate at the port and reduce airflow—wipe it with mineral spirits and a rag. As with any dust system, a clean filter in your vac and a bag or cyclone upstream do more for performance than anything else.

Noise-wise, the extractor is still the loudest component. I didn’t notice any whistling or odd harmonics from the port itself.

Value

For what it costs, the adapter delivers meaningful, practical improvement. It won’t transform the saw into a cabinet saw with under-table collection, but it knocks down the worst of the mess, keeps chips off my line of sight, and reduces the cloud at the end of a cut. I value not sweeping between every rip and not peppering the floor around a cut station with shrapnel.

If your work is in occupied spaces or small shops, the incremental gains become more important. If you primarily cut outdoors and don’t mind sweeping, you’ll still appreciate the improved visibility and reduced blowback, but the return on investment is smaller.

Tips for best results

• Use a high-CFM extractor or a clean shop vac. Keep filters clean and use a bag or pre-separator.
• Keep the cut depth just below the material; shallower cuts give the port a better chance to catch debris.
• Route a flexible 1-1/2 in. hose over your shoulder to minimize drag and snags.
• Check screw tightness periodically and ensure the lower guard returns freely.
• For DeWalt extractors, the DWV9150/DWV9100 adapters simplify a secure, repeatable connection.

Limitations

• It doesn’t capture everything—especially fine dust and chips on bevel cuts.
• Compatibility is narrow by design: it’s intended for the DCS577-style 7-1/4 in. worm-drive saw, not a universal, one-size-fits-all solution.
• If your hoses aren’t 1-1/2 in., you’ll need a coupler to avoid leaky friction fits.

The bottom line

The dust port adapter is a simple, lightweight accessory that does what I wanted: it meaningfully reduces the chaos a rear-handle saw creates without getting in the way. It’s easy to install, plays nicely with 1-1/2 in. hoses and DeWalt’s DWV adapters, and doesn’t upset the saw’s balance. It won’t give you zero-dust cutting, and you’ll still be sweeping some chips, particularly on bevels and with finer-tooth blades. But across a week of framing and plywood work, my cleanup time went down, visibility improved, and the shop air stayed noticeably clearer.

Recommendation: I recommend this adapter if you use the DeWalt rear-handle saw and care about keeping the mess under control. Pair it with a capable extractor, route a flexible 1-1/2 in. hose, and you’ll see a worthwhile reduction in chips and dust without sacrificing the saw’s handling. If you’re expecting near-total capture or you rarely work indoors, temper expectations—but for most users, it’s a practical, well-executed upgrade.
