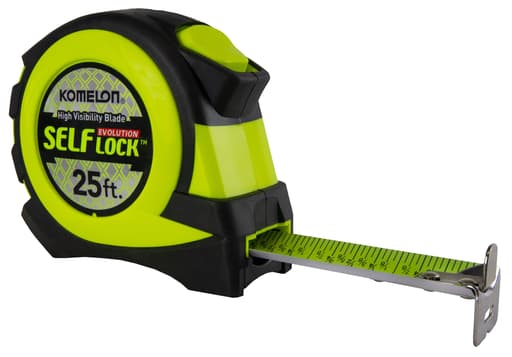

Komelon Self lock 25-ft Auto Lock Tape Measure

Why I reached for this tape and what I look for

I spend a lot of time with a tape measure in my hand—rough framing, built-ins, and plenty of shop work. For me, the right tape checks a few boxes: it needs to lock without fuss, read easily in bad lighting, hook reliably from awkward angles, and survive the inevitable drops and dusty environments. The Komelon Self Lock promised a lot of that on paper: a compact case, high-visibility blade with fractional markings, double-sided print, and an auto-lock that holds the blade out until I tell it to come back. After weeks of use on a bathroom remodel and a couple of shop projects, I’ve got a clear sense of where it shines and where it doesn’t.

Ergonomics and build

The first thing I noticed is how comfortable the case feels. It’s compact without being tiny, with a shape that sits naturally in the palm. At just over a pound, it’s substantial enough to plant on a surface without skittering around, but it doesn’t feel heavy on a belt. The belt clip is firm and easy to hook with one hand; it doesn’t deform when you sit or squat, which is a small blessing during long days.

The end hook is a dual-sided design that catches well whether you’re pulling off a face or pushing into a corner. It has enough play to account for the hook thickness in inside/outside measurements, and the geometry feels deliberate rather than just adding slop.

One omission: there’s no magnet. If you work on steel studs, ductwork, or appliances, note that you’ll be relying on hook geometry and hand pressure.

Readability and blade design

This is a very readable tape. The high-vis blade is easy to track under shop lights and in dim corners. Fractional graduations are printed clearly, and the double-sided print is genuinely useful for overhead work, vertical layouts, and odd angles—no twisting your neck to read upside down.

The blade is 1-inch wide with a pronounced curve, which contributes to its standout and rigidity. It’s rated at 7 feet of standout, and that lined up with my experience: I could consistently bridge 6–7 feet without collapse. Past that, you’re flirting with gravity and the slightest breeze or wrist angle.

A tradeoff to that curve is flat contact. On sheet goods or finished surfaces where I want a pencil line right along the tape, the curve means I need a finger to press it flat. It’s not unusual for a 1-inch blade, but it’s worth noting if you often lay out fine, close-range marks on flat stock.

How the auto-lock behaves

The self-locking mechanism is the star feature, and it’s mostly well executed. Pull the blade out and it stays put—no thumb switch required. That’s great for one-handed use on a ladder or when you’re juggling a fastener in the other hand. The release button frees the blade to retract.

There are two behaviors to understand:

• The lock holds confidently at short and medium extensions. Up to around 8–10 feet, I had no creeping while marking or nudging the hook.
• At longer extensions, especially over 12 feet, the blade is more sensitive to movement and can slip back a bit if you bump it. That’s common with many self-lockers, and it’s manageable if you’re conscious of it, but for solo long pulls across a room, I moved more deliberately or anchored the hook.

The retraction spring is strong. That’s great for swallowing the blade quickly, but there’s no “feather” brake built into the release button—it’s basically locked or free. Let it go from a long extension and it will whip back with enough force to kink the blade or deform the hook if it flips. I learned quickly to bring it in with my off hand as a guide: release, pause, guide in, repeat. It’s second nature after a day, but if you’re used to a manual lock that doubles as a variable brake, this will feel more binary.

Accuracy and everyday use

I checked the tape against a machinist’s rule and a known-accurate 25-footer. Hook compensation felt correct, inside and outside edges matched, and repeated measurements landed where they should. The double-sided print made overhead and inside measurements faster; I wasn’t contorting the tape just to read a line.

In the shop, laying out face frames and cabinet parts, the fractional markings are crisp and evenly spaced. The high-vis background helps in shadowed areas behind machinery. On the remodel, I used it for room spans, door and window layouts, and trim. For 10-foot pulls I felt confident with the auto-lock alone. For longer spans, I secured the hook whenever possible or kept a finger on the blade near the case to prevent creep as I marked.

The dual end hook paid off trimming doors—hooked over an edge one moment, flipped and pushed into the jamb the next. The hook thickness and play felt dialed; I didn’t find myself second-guessing inside vs. outside measurements.

Durability and wear

The blade is nylon-coated steel. The coating held up well against general abrasion in wood and drywall dust. After a few weeks of normal abuse—drops from pocket height, scraping across rough sawn edges—the print is still strong and the coating hasn’t scuffed through at the first few feet, which is usually where tapes start to show wear.

I would be cautious about fast retractions from long extensions. Any tape can kink if the hook flips and snaps, and the strong spring here magnifies that risk. Treat the release like a yes/no switch and use your hand as a brake—simple habit, big difference in lifespan.

In gritty, high-abrasion environments with lots of metal edges, it’s not the toughest tape I own. If your day is spent cutting, welding, or bouncing between plate edges and scale, you’ll likely wear the coating and the edge of the blade faster than in carpentry. For general construction and shop work, the durability feels appropriate.

Where it fits and where it doesn’t

Strengths:
- Auto-lock that works, especially helpful for one-handed measurements and ladder work
- Excellent readability with high-vis color, fractional markings, and print on both sides
- Comfortable, compact case and a reliable belt clip
- Dual end hook that genuinely expands how you can measure

Tradeoffs:
- No magnetic hook
- Lock can creep slightly on very long extensions if you jostle the blade
- Retraction is fast with no “brake” feel; you need to guide it back with your hand
- The blade’s curve can fight you when you want it to lay perfectly flat on a surface
- SAE-only markings

If your workflow involves frequent solo pulls of 15–20 feet where absolute no-creep locking is essential, a manual-lock tape with a stronger positive lock might be a better fit. If you often measure on steel, you’ll miss a magnet. And if you need to feather the retraction with a thumb switch, the binary release here will feel limiting.

Small notes from daily use

• The 7-foot standout rating is honest. Expect reliability within that range; treat anything beyond as situational.
• The end hook’s side tabs grab well on thin materials and drywall edges. Inside corner pushes feel secure.
• The case coating wipes clean easily; dust doesn’t cling like it does to rubber-heavy casings.

The bottom line

The Komelon Self Lock is a practical, easy-to-read, comfortable tape that rewards careful handling. Its auto-lock makes ladder work and repetitive measurements faster, and the double-sided, fractional blade speeds layout in real-world conditions. The tradeoffs are mostly about control: retraction requires a guiding hand, and at very long extensions the lock can creep if you jostle it. It’s not aimed at heavy industrial abuse, and it doesn’t cater to metalwork with a magnet.

Recommendation: I recommend it for carpenters, remodelers, and DIYers who value one-handed operation and clear markings, and who are willing to guide the blade on retraction. It’s a strong everyday tape for wood-centric jobs and shop workflows. If your work demands frequent, long solo pulls with zero tolerance for slip, or you need magnetic capability, look to a manual-lock or magnetized alternative.
