DeWalt TrackSaw Miter Gauge

Why I added this to my track saw kit

I picked up DeWalt’s miter gauge for one reason: I wanted repeatable, accurate angle cuts on sheet goods without wrestling big panels across a table saw sled. I already lean on a track saw for breaking down plywood, but squaring a panel edge or cutting a crisp 45° across a cabinet side still takes care and time. This little gauge promised to turn the track into a reliable miter station, and after a few weeks in the shop and on site, it’s become a staple in my bag.

Design and build

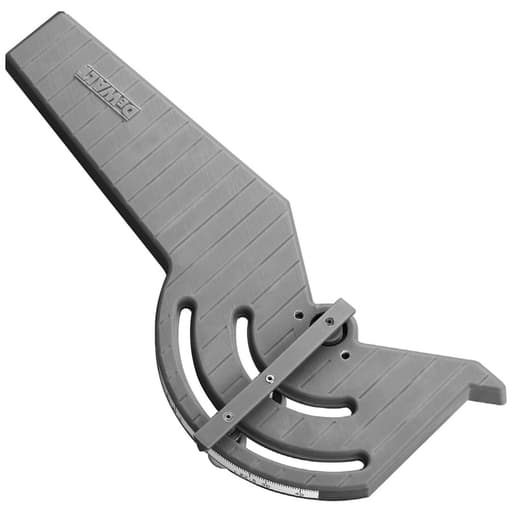

The gauge is compact and purpose-built. It’s an aluminum piece in a silver finish, about 13.9 inches long, 5.5 inches wide, and just over 2 inches tall, weighing around 20 ounces. That matters: it’s light enough to live on the rail without dragging, but it has enough mass to feel planted when you’re setting angle and locking things down. The fit on my DeWalt TrackSaw rails is clean—no slop, no rocking—and the self-aligning interface means it finds home the moment you snug it up.

There’s no calibration ritual. That’s the big story here. Out of the box, the gauge seated square to the rail, and any time I reposition it, it returns to that same squareness. No set screws, no fuss. That consistency has saved me more time than any accessory I’ve added in the last year.

Setup and alignment in practice

My flow is simple:

• Mark the cut line and, if needed, the angle.
• Drop the rail roughly to position.
• Attach the gauge to the rail and set the angle on the gauge.
• Push the gauge’s reference edge against the panel edge, slide the rail until the splinter guard kisses the layout line, and lock the rail.

The self-aligning design keeps the rail and gauge in sync, so you’re not juggling two references. With the track’s anti-slip strips, I often cut without clamps on wide panels. For narrow parts or acute angles where torque on the rail increases, I add rail clamps. DeWalt’s clamps slide into the track groove, and once you get used to that quick pinch, it becomes second nature.

Accuracy and cut quality

Accuracy is the reason to buy a miter gauge, and this one has earned its keep. In my testing—30° and 45° miters on 3/4-inch Baltic birch, 1/2-inch prefinished maple ply, and 1x hardwood edging—the gauge delivered repeatable angles and tight joints. I checked several cuts with a digital protractor and a reference square; the results were within a few tenths of a degree, and seam gaps were negligible straight off the saw. On veneered stock, the combination of the track’s splinter guard and a sharp blade gave me glue-ready edges.

The gauge has enough footprint to register positively on the work. On big panels, the reference edge finds the factory edge fast; on rough or scribed edges, I’ll often add a strip of painter’s tape for grip or clamp the rail for insurance. Either way, the gauge hasn’t been the limiting factor—the surface under your sheet and how you support the cut-off still determine how clean the last inch will be.

Where it shines

• Cabinet parts and casework: Squaring cabinet sides and bottoms becomes quick, especially when one reference edge is already straight. Setting repeatable 90° or 45° crosscuts on wide pieces is the gauge’s sweet spot.
• Site work and built-ins: In tight spaces where a miter saw can’t swing, I can lay the rail on a shelf panel, set a shallow bevel or miter, and dial in a scribe-friendly cut without hauling extra stands.
• Large miters on sheet goods: Building waterfall edges or angled returns is easier when your angle doesn’t drift across 24 to 30 inches of material. The gauge anchors the track to the panel geometry rather than your eyeball.

Limitations to know

No accessory does everything, and this one is no exception.

• It’s not a replacement for a dedicated miter saw on dimensional lumber. For 2x material or thick hardwood, a sliding compound miter saw still wins for speed and workflow.
• The compact size is a plus for transport, but the short reference edge can feel a bit small on very wide, very acute angle cuts. Past about 60° relative to an edge, I’ll often extend the registration by clamping a straight auxiliary fence to the panel or just add an extra clamp on the rail.
• There’s no micro-adjust knob for angle tweaks. I don’t miss it given how quickly the gauge locks true, but if you frequently chase half-degree changes, you’ll still want a digital angle finder on the bench to set and verify angles.
• It’s for the DeWalt TrackSaw system. That’s expected, but worth stating. It interfaces beautifully with DeWalt rails; I wouldn’t assume cross-brand compatibility.

Tips that improved my results

• Use the rail clamps when the offcut is narrow or the angle is acute. The track’s grip is excellent, but torque increases as you push the saw through at sharper angles.
• Keep the splinter guard fresh and trimmed. Angle cuts can telegraph a tired rubber edge more than straight rips.
• Scribe, then align the splinter guard to the scribe line at the finished edge. The gauge makes it easy to hold that relationship across an entire panel.
• Support the offcut. On miters, the last few inches can droop if overhanging, which can lift the rail fractionally and affect the cut quality at the end.

Durability and maintenance

The aluminum body has shrugged off shop life well. Mine has picked up a couple of cosmetic scuffs, but the mating surfaces remain true, and the locking hardware hasn’t loosened. There aren’t many moving parts to worry about, which is a plus in a dusty environment. A quick brush-off before it goes on the rail keeps debris from compromising the reference surface. DeWalt backs it with a 3-year limited warranty, a year of free service, and a 90-day satisfaction guarantee—reassuring for a small but critical accessory.

Who benefits most

• Woodworkers and finish carpenters who already rely on a DeWalt track saw and want to expand it into a reliable panel miter station.
• Small shops that break down sheet goods frequently but don’t have space for a large sliding table or crosscut sled.
• On-site installers who need clean, angled panel cuts without hauling a full miter saw station.

If your work is mostly framing or you rarely cut angles on sheet goods, it’s probably overkill. But for anyone building cabinets, furniture panels, or custom built-ins, the utility is immediate.

The bottom line

This gauge does exactly what I hoped: it makes angled cuts with a track saw fast, consistent, and low stress. The self-aligning design is the star—it means I spend my time placing the rail and cutting, not tuning hardware. Accuracy is solid, the build quality is up to jobsite abuse, and the compact size keeps it in my kit rather than on a shelf.

Recommendation: I recommend this miter gauge to anyone invested in the DeWalt TrackSaw system who needs accurate, repeatable miters on sheet goods. It’s a small accessory that meaningfully expands what the track can do, with almost no setup overhead. The combination of reliable alignment, light weight, and simple operation has made it my go-to for panel miters and square crosscuts alike.
