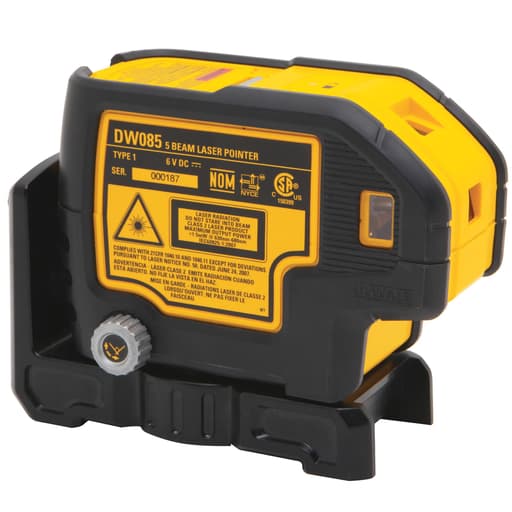

DeWalt 5 Beam Laser Pointer

First impressions and setup

I took the DeWalt 5‑beam pointer out on a week of layout tasks—steel stud track, a couple of floor‑to‑ceiling transfers, and a run of chair rail—and it slotted into the workflow immediately. The kit comes in a molded hard case with the magnetic pivoting bracket and four AA batteries. There’s a single lever that powers the unit and locks the pendulum for transport. That lock matters; it protects the gimbal during trips in the truck, and the switch is big enough to operate with gloves.

The body feels purpose-built for job sites. Rubber overmold on the shell gives you grip and some drop protection, and the bracket nests into the case so you’re not fishing for parts. It’s compact enough to live on my second shelf, but the full kit is closer to “boxy instrument” than pocket tool; I ended up leaving the case near the tripod to minimize back-and-forth.

Threading on the base accepts a standard tripod mount, and I used both a camera tripod and the included bracket during testing. The bracket’s magnets are strong and make quick work of fastening to steel studs and door frames, and there’s enough stand‑off to clear track flanges so the beams aren’t obstructed.

What the five beams get you

This is a point laser, not a 360 line machine. You get five bright red spots that give you plumb up/down and orthogonal reference points for square. For layout, that’s often preferable: a crisp dot is easier to place on a mark, and it stays tighter at distance than a line. I used the forward point for straight runs, the left/right pair to check square off a control line, and the up/down pair for transferring positions floor to ceiling. The spec claims ±1/4 in. at 100 ft, and my checks against a calibrated level and a control tape stayed inside that envelope.

If your work leans toward continuous tile lines or drywall reveal alignment across an entire room, a line laser is more convenient. But for locating anchors, studs, hanger points, or track where you’re translating a layout point from one surface to another, a five‑spot like this is faster and less ambiguous.

Self-leveling and accuracy in practice

The self‑leveling pendulum is quick. From power‑on, it settled in a couple of seconds on a stable surface. I checked level across a 40‑ft interior span; the dots stayed tight and didn’t bloom into fuzzy blobs, which makes measuring off them straightforward. For plumb, I set a target on the slab and matched it overhead—no hunting around for a line; the ceiling dot was easy to see and landed where I expected.

One small behavior to note: if you’re on a spongy floor or a wobbly tripod, the pendulum will chase movement, and you’ll see the points dance a bit. That’s normal for self‑leveling lasers and a good reminder to stabilize your setup before committing marks.

Visibility: indoors excellent, outdoors situational

Indoors, visibility is excellent. Under shop lighting and typical interior daylight, I could push to 40–50 ft without the dots smearing or flaring. The spec’s “focused beams keep dot size small over longer distances” matches my experience—farther than you’d comfortably tape in one go and still easy to pick out on painted surfaces.

Outside, red lasers meet their match. In bright sun on light‑colored substrates, the dots fall off quickly with distance. On overcast mornings I could work 20–30 ft on shaded concrete; at noon on a white EIFS wall, you’ll want a target card and maybe a helper in safety orange to spot the dot. If you do a lot of outdoor layout, consider planning for shade, using laser target plates, or moving to a green‑beam or detector‑compatible setup for those conditions.

Controls and fine adjustment

The standout control is the micro‑adjust knob that rotates the body for dialing in 90°. It’s a small touch that saves time. I’d roughly aim the forward dot on my baseline, then use the knob to nudge the left/right dots into square rather than bumping the tripod. It has some resistance—stiff enough that on a lightweight tripod it can wiggle the head—so a heavier tripod or the magnetic bracket on steel gives the best experience. Once you get used to the feel, it becomes second nature.

There’s no mode menu maze here. Power on, let it settle, and the beams are live. The simplicity is welcome on a site where you’re juggling other tasks.

Mounting options and layout workflows

• Magnetic bracket: Quick on studs and track. The integrated clearance means you can set it low and still shoot over flanges for bottom/top track layout. I appreciated this on interior partitions where I needed to reference the control line at the floor and carry it to the deck above.
• Tripod: For room‑scale work like chair rail or picture mold heights, a tripod shines. I set the head to my desired elevation, marked around the room by slowly rotating, and never touched a bubble vial. The threaded mount stayed tight through the day; no creeping.
• Flat surfaces: The base is stable enough on a slab or a lift platform. On a scissor lift, I used foam to damp vibration and got steady dots for overhead fire hangers.

Durability, power, and care

The overmolded shell and pendulum lock inspire confidence. Mine got tossed in and out of the truck and knocked around a bit with no shift in calibration. I still recommend a periodic check—two‑point test for level and a plumb transfer across a known distance—especially after an impact.

Power is four AA alkalines, rated for around 15 hours. That aligns with a couple of full days of intermittent use. I keep a spare set in the case. Swapping batteries is quick and doesn’t require removing the unit from a mount, which matters when you’re mid‑layout.

DeWalt backs the tool with a 3‑year limited warranty, 1‑year free service, and a 90‑day satisfaction guarantee. It’s standard for the brand and appropriate for a precision instrument you may rely on daily.

What I’d change

• Outdoor performance: This is the limit of red lasers, not unique to this model, but it’s worth stating plainly. In full sun, expect short workable distances. If your work is exterior‑heavy, a green‑beam alternative or a detector‑capable line laser may be a better fit.
• Micro‑adjust feel: I like the fine control, but the knob’s stiffness can nudge a lightweight tripod. On steel with the magnet bracket, it’s a non‑issue. A slightly smoother action would make finesse easier across the board.
• Kit bulk: The case is protective but takes up space. The trade‑off is worth it for most crews, though solo remodelers might wish for a slimmer case to travel with a compact tripod. The upside is everything has a home and arrives on site intact.

Who it’s for

• Framing crews doing steel track: The magnetic bracket and point‑to‑point transfers make bottom/top track and door frames faster and more accurate than chalk‑only methods.
• MEP layout: Hanger points, stub‑ups, and penetration alignment benefit from tight dots you can see precisely on the mark.
• Finish carpenters: Chair rail, picture molding, and cabinet reference points are straightforward with a tripod and steady rotation.
• Remodelers and GC punch lists: Quick checks for plumb and level without setting up a full line laser rig.

If you need continuous reference lines across multiple walls or complex tile layouts, pair this with a dedicated line laser. They’re complementary tools.

The bottom line

The DeWalt 5‑beam pointer excels at what a point laser should: fast, precise transfers and square layout with minimal fuss. It self‑levels quickly, the dots stay tight at useful interior distances, and the magnetic bracket plus micro‑adjust knob make fine work efficient. It’s built to live on a job site, with a pendulum lock and overmold that keep calibration intact, and it runs on easy‑to‑find AA batteries for long days.

It’s not a do‑everything laser—outdoor visibility is the same red‑beam reality as its peers, and it won’t replace a 360‑degree line laser for full‑room line work. But for interior layout, steel framing, and any task where you’re moving a point from here to there and want it to land exactly where it should, it’s a solid, dependable choice.

Recommendation: I recommend this tool. It’s accurate within its stated spec, fast to deploy, and thoughtfully equipped for real layout tasks. If your work is primarily interior and point‑oriented—track, anchors, hangers, and floor‑to‑ceiling transfers—the 5‑beam pointer will save time and reduce errors. If you spend your days in bright sun or rely on continuous lines, look to a green‑beam or 360‑line model instead, but keep this in mind as a complementary layout instrument.
