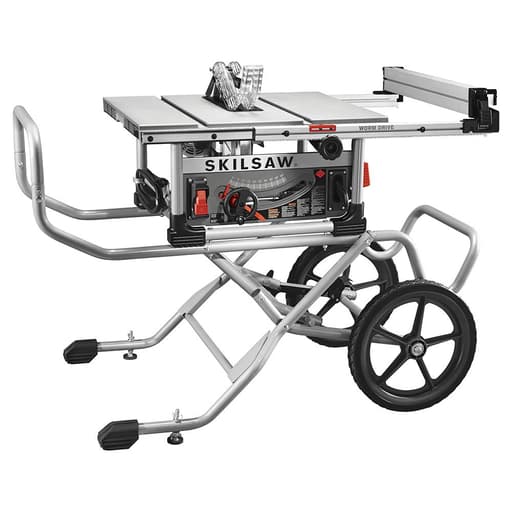

Skil 10 IN. Heavy Duty Worm Drive Table Saw With Stand

Why I chose this saw for the jobsite

I wanted a portable table saw that didn’t feel like a compromise when ripping hardwood or breaking down sheet goods. The Skil worm-drive table saw checked a lot of boxes on paper: a 15-amp dual-field motor, worm-drive gearing for torque, rack-and-pinion fence, 30-1/2 inches of rip capacity, and a rolling stand with large wheels. After several projects—trim and cabinet work, deck rebuilding, and a batch of maple cleats—I’ve formed a clear picture of where this saw excels and where it can be frustrating.

Setup, build, and first impressions

Out of the box, assembly is straightforward. The stand bolts up cleanly, and the Easy-Load handles and 16-inch wheels instantly make themselves useful. There’s onboard storage for the accessories, and it’s actually well thought out—everything has a home, including the guard, miter gauge, push stick, and wrenches.

Initial calibration took me about 30 minutes. The blade was close to square, but I fine-tuned it to 90° and checked parallelism to the miter slot. The rack-and-pinion fence tracks smoothly and locks down without deflection. I dialed in the fence scale to match a physical measurement; I always recommend verifying the indicator with a tape the first time you set it up.

Build quality is solid for a jobsite tool. The table surface is flat, the trunnions are tight, and there’s minimal flex in the stand. There are some plastic components, but the high-stress parts feel appropriately robust. If you transport your tools often, you’ll appreciate how tidy and compact this saw becomes when folded.

Power and cutting performance

The headliner is the worm-drive drivetrain paired with a 15-amp motor—Skil’s “Dual-Field” design—and it shows when you load the blade. Ripping 8/4 maple at a steady feed rate didn’t bog the saw, and cutting wet framing lumber with a 24-tooth blade felt confident rather than strained. At 0°, the saw will clear 3-5/8 inches, so it will handle a 4x4 in a single pass. At 45°, you get 2-3/10 inches, enough for most bevel work in construction.

No-load speed is 5000 rpm, which strikes a good balance between torque and cut quality. With the stock 24T blade, you’ll get serviceable rips in framing and sheet goods. For furniture work or melamine, a higher-tooth-count blade transformed the cut surface; I ran a 60T for plywood and a 90T for prefinished maple, and the saw kept up fine.

One note on power: there’s a noticeable inrush on startup. On a 15-amp circuit with other loads, I occasionally tripped a breaker. On a dedicated 20-amp circuit (and with a proper 12-gauge cord) it’s a non-issue.

Accuracy and the fence system

The rack-and-pinion fence is the right choice for a portable saw. It stays parallel across its travel and makes micro-adjustments intuitive. Once calibrated, the fence scale matched my tape measure closely, but I continued to verify critical cuts with a rule. The fence glides smoothly, locks down square, and doesn’t shift when you bump it—exactly what I want in a jobsite environment.

The saw’s table layout includes T-slots on the fence for accessories, which is great if you use auxiliary faces or jigs. Just know that the ends are closed, so inserting hardware requires removing an end cap. Not a dealbreaker, but it adds a step when setting up featherboards or tall fences.

Mobility and the stand

Skil nailed the stand. The 16-inch wheels and balanced frame make stairs, bumps, gravel, and thresholds manageable. Folding and unfolding it is quick, and the unit can store vertically to save space. The stand feels planted during cuts—no shimmying under load—which matters when you’re running large panels or long rips.

There’s room for improvement, though. When folded, the bare metal tubes contact the floor. I added rubber sleeves to avoid scuffing surfaces and to keep it from skidding on smooth concrete.

Dust collection and safety

Dust collection is better than the typical open jobsite saw. The dust port elbow helps redirect chips into a vac, and with a decent extractor attached, the majority of debris is captured. There’s still some escape around the blade area; it’s a portable saw, not a cabinet unit, and you’ll sweep a bit after heavy rips.

The Smart Guard System (blade guard, riving knife, and anti-kickback pawls) works as intended and stows on the saw. I do wish the riving knife were quicker to remove or could drop below the table for non-through cuts. As it stands, plan for a pause when switching between guarded rips and specialty operations.

Hearing protection is a must. The motor and gearing produce a distinct whine under load—normal for this class, but not quiet.

Capacity and versatility

• Rip capacity: 30-1/2 inches right of blade, 16-1/2 inches left. That’s enough to halve 4x8 sheets with a careful setup or a helper. If you routinely rip 32 inches, note the limit.
• Dado capacity: up to 1/2 inch. It’s nice that a portable saw accepts a stack at all, but cabinetmakers who rely on 13/16-inch dados will hit a ceiling here.
• Bevel range: -1° to 47° gives a bit of over-travel at both ends, which helps you sneak up on perfect 90s and 45s.

The built-in outfeed and left support are genuinely useful. They don’t replace a full outfeed table, but they stabilize long stock and cut down on the awkwardness of handling sheet goods alone.

Ergonomics and controls

Blade height and bevel adjustments are smooth and predictable. Detents are accurate, and the scales are legible in bright or low light. The on/off paddle is easy to reach without being in the way. Accessory storage is better than most; I didn’t toss anything into a separate drawer, which meant I actually used the guard and pawls more often.

The included miter gauge is a weak spot. It’s serviceable for quick rips of trim, but the bar is short and the head flexes more than I like. If you do precision crosscutting or miters on a table saw, plan on an aftermarket gauge or crosscut sled.

Clamping options could be better. The underside of the table has ribs that complicate clamping featherboards or stops. I made a notched filler block to span the ribs; after that, clamping was straightforward.

Reliability and maintenance

Over time, the motor stayed cool under typical loads—Skil’s dual-field approach seems to help with heat. I kept the top clean and waxed, checked fence alignment periodically, and inspected the riving knife for alignment with blade changes. Everything has held true so far. Like any worm-drive system, smooth operation rewards basic maintenance: keep debris out of mechanisms and don’t starve it of clean airflow when cutting dusty materials.

Limitations to consider

• Startup inrush can trip 15-amp circuits. A dedicated 20-amp circuit is a better match.
• Dado width is limited to 1/2 inch.
• The riving knife isn’t tool-free or drop-away, which slows down non-through operations.
• The included miter gauge is basic; plan to upgrade if precision crosscuts matter.
• The fence’s T-slots are closed at the ends, adding a step for accessories.
• Rip capacity tops out at 30-1/2 inches, short of the 32-inch mark some users want.

None of these are dealbreakers for me, but they’re worth knowing before you buy.

Who this saw suits best

If you need a saw that travels easily, sets up quickly, and still rips hardwood without fuss, this Skil worm-drive table saw hits the sweet spot. Remodelers, deck builders, and serious DIYers will appreciate the torque, the accurate fence, and the excellent stand. Cabinetmakers who demand wide dados, soft-start behavior on light circuits, or a 32-inch rip might want to look higher up the food chain or plan around these limits.

Recommendation

I recommend this saw. It combines real cutting power with jobsite-friendly mobility, and once calibrated, it delivers accurate, repeatable results. The rack-and-pinion fence is trustworthy, the stand is best-in-class for transport and stability, and the integrated supports and storage make day-to-day use smoother. You’ll want a dedicated 20-amp circuit, a better miter gauge, and perhaps a higher-tooth blade for fine work, but those are sensible upgrades. For most users who need a portable saw that doesn’t flinch at tough rips, this Skil is an excellent choice.
