DeWalt Universal Quick Connector

A small connector that can make a big difference

A good dust connection can make or break a sanding or routing session. I’ve spent more time than I care to admit nudging a hose back onto a tool mid-cut, so I put DeWalt’s Quick Connector to work across a handful of sanders and shrouds to see if it actually solves the “loose hose/poor suction” problem. Short version: it does—especially if you’re in the DeWalt ecosystem—but there are a few fitment gotchas you should know before relying on it as a universal fix.

What it is and how I set it up

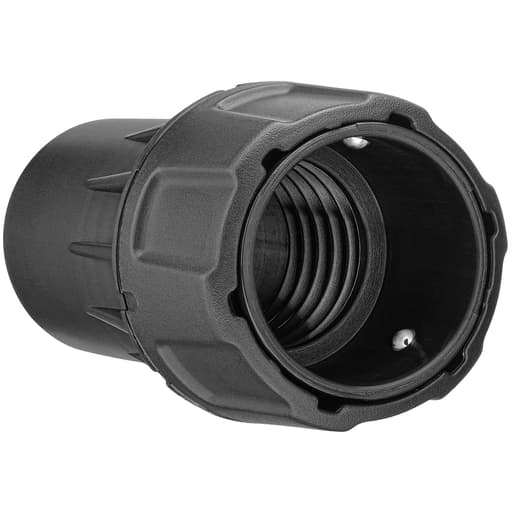

The connector is essentially a compact coupler that locks a hose to a tool’s dust port. I tested two configurations:

• The standard version that accepts a 1-1/4 in. hose end.
• The AIRLOCK version, which threads onto a 35 mm hose and locks directly to compatible extraction ports and DeWalt dust extractors.

On my bench, that meant pairing the standard connector with a common shop vacuum (nominal 1-1/4 in. hose) and clipping onto a random orbit sander and a small router shroud. For the AIRLOCK model, I used a DeWalt dust extractor and a few AIRLOCK-enabled shrouds. Out of the box, setup took seconds: push or thread the hose on, twist the ring to lock, and you’re working.

Build and design

This is a simple piece done mostly right. The body feels rigid without being brittle, and the lock ring has just enough texture to grip with dusty gloves. The swivel is the star: it lets the hose spin freely as you reposition a sander or shift stance during a cut, which genuinely reduces kinking and tug. I’d call the swivel tension “medium”—loose enough to follow your movements, firm enough that the hose doesn’t constantly droop.

There’s not much metal here and it doesn’t need it. Despite the low weight, I didn’t see any flex at the locking interface, and it didn’t creak or pop under normal side loads.

Performance on real tools

On DeWalt sanders and shrouds with the matching locking groove, the connection is excellent. Push, twist, click—done. I could lift the tool by the hose without the connector letting go (not recommended, but a fair stress test). Suction felt consistent, and the swivel prevented those annoying micro-breaks in airflow you get when a hose kinks.

On third-party tools, things got mixed. If the dust port is smooth and sized close to DeWalt’s standard, the connector still grips decently with friction alone, and the twist motion helps it seat fully. But on a couple of older non-DeWalt tools, the port OD was just large enough that the connector would not positively lock. It stayed on most of the time but could be tugged loose with a sharp hose pull. A single wrap of thin tape on the port (or a thin O-ring) made it rock-solid, but it’s worth noting that “universal” still depends on tolerances.

The AIRLOCK advantage

If you already own a DeWalt dust extractor or use AIRLOCK shrouds, the AIRLOCK version is the one to get. It threads onto a 35 mm hose, and the locking interface is mechanical, not just friction-based. With this setup, connections were consistent across every AIRLOCK-compatible tool I tried. Switching between tools takes seconds—twist to unlock, click into the next port, and you’re back to work. For site work or batch sanding, that speed adds up.

If you’re running a typical big-box shop vac with a 1-1/4 in. hose and a mixed bag of tools, the standard version is more flexible—but expect to do a little adaptation for outliers.

Dust capture and ergonomics

With a rugose hose and a sander in hand, the single biggest benefit here is workflow. The swivel keeps the hose from fighting you, which means fewer times you unknowingly back the connector off a port. Suction is whatever your vac can deliver; the connector doesn’t constrict flow beyond the usual 1-1/4 in. limitation. On a 5 in. ROS, I could sand edges and inside panels without the hose trying to twist the sander off course. On the router, being able to rotate the hose so it exits naturally to the side reduced snags on the workpiece.

A minor note: very fine MDF dust can settle into the lock ring if you’re sanding for long stretches. A quick blast of compressed air or a brush clears it, and it never jammed on me, but periodic cleaning keeps the action smooth.

Fitment realities and tips

Here’s the practical side of “universal”:

• Nominal hose sizes aren’t consistent. A “1-1/4 in.” hose may vary by several millimeters depending on brand. Make sure your hose end isn’t oversized or use a short, smooth coupler to get the connector fully seated.
• Tool ports vary even more. Ports with the DeWalt-style groove lock perfectly. Smooth or slightly oversized ports may need a thin shim (blue tape, heat-shrink, or a rubber O-ring) for a confident hold.
• Check clearances on compact sanders. On one palm sander with a short dust port, the connector covered part of the tool’s housing; it still worked, but orientation mattered for comfort.
• If you mix brands daily, keep a small rubber step adapter in the toolbox. It saves time and keeps you from relying on makeshift fixes.

Durability

I jammed this connector on and off a couple dozen times, dragged it across concrete, and wrenched on it with the vacuum pulling full tilt. It shrugged off the abuse. The lock ring still clicks positively, the swivel hasn’t loosened, and the threads on the AIRLOCK variant show no play. I’d expect the plastic to hold up for the long haul if you avoid prying it off at odd angles.

Value

It’s not the cheapest piece of plastic in the shop, but the value comes from time saved and frustration avoided. If you’re swapping between tools often or you’ve fought with slipping hoses in the past, the cost makes sense. If your current setup already locks well and you rarely change tools, this may feel like a nice-to-have rather than a must-have. The AIRLOCK variant earns its keep quickly if you’re running a DeWalt extractor.

What I liked

• Positive, tool-side locking on compatible ports
• Smooth 360° swivel that actually reduces kinks and tugging
• Fast, one-handed tool changes
• Light, compact, and tougher than it looks
• AIRLOCK ecosystem support for truly secure connections

What could be better

• “Universal” fit depends on tool port tolerances; some ports need a shim
• Variant choice can be confusing if you don’t know your hose size (1-1/4 in. vs 35 mm)
• Price feels high if you only need a single fixed connection

Bottom line and recommendation

I recommend the Quick Connector, with one caveat: match the variant to your hose and be realistic about your tools’ port sizes. In my shop, it delivered a secure connection, cleaner work, and smoother ergonomics, especially on DeWalt sanders and AIRLOCK shrouds. If you’re already in the DeWalt dust extraction ecosystem or you swap between multiple tools in a session, it’s an easy yes. If you run a generic 1-1/4 in. hose across a mixed set of tools, it’s still a strong upgrade—but keep a thin shim or a small adapter handy for the occasional odd-sized port. The convenience and the swivel alone have earned it a permanent spot in my dust kit.
