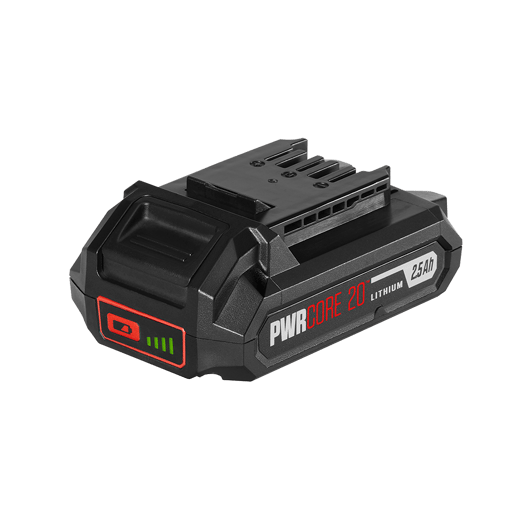

Skil 20V 2.5Ah Lithium Battery

Why I reached for the 2.5Ah pack

I put the 2.5Ah PWRCore 20 battery to work across a handful of SKIL 20V tools to see where it shines and where it struggles. I wanted something lighter than a 4.0Ah pack for overhead work and tight spaces, but still with enough stamina to be useful on a job. Over several weeks, I rotated it through a brushless drill/driver, an impact driver, an oscillating multi-tool, and—briefly—a compact circ saw to test the limits.

Size, weight, and balance

At just under a pound, this battery keeps compact SKIL tools feeling nimble. On the drill/driver and oscillating tool, the balance is excellent; the pack doesn’t turn the handle into a counterweight, and it’s noticeably easier on the wrist during extended sessions over a 4.0Ah pack. It’s not the tiniest compact battery I’ve handled, but it slots nicely into the “everyday” category—small enough to clear tight corners, big enough to be stable when the tool is set on its base.

The slide-on fit is positive with minimal wobble across the SKIL tools I used. The release tabs are firm without being finger-bruising, and the pack clicks on and off chargers cleanly. The green LED fuel gauge is simple and readable. It’s not a precision gas tank, but it’s consistent enough that one bar left really does mean you’re nearing the end. Outdoors in bright light, the indicators are still visible with a quick glance.

Thermal behavior and the phase-change design

This pack’s headline feature is the phase-change material wrapped around each cell to manage temperature. The claim is that it reduces cell heat under load, which can help runtime and longevity. I can’t tear it down to verify the materials, but I can talk about behavior.

Under medium, continuous loads—sanding with the oscillating tool, drilling pocket holes, and driving structural screws into SPF—the pack stayed comfortably warm, not hot. The charger didn’t frequently delay for cooling after a heavy cycle, which can happen on other compact packs. In practical terms, that meant I could run a battery nearly down and get it back on the charger without waiting for a cooldown period most of the time. On the circ saw and grinder, as expected for a 2.5Ah pack, heat built more quickly and the battery’s protection shut down earlier than a larger pack would. That’s not a knock; it’s just the reality of a smaller energy reservoir on high-demand tools.

Runtime: claims vs. the job site

SKIL quotes roughly 25% longer runtime and up to twice the battery life (cycle life) compared to unspecified baselines. I don’t have their control data, but I ran back-to-back tasks with a well-used older compact pack and saw a modest bump—generally in the ballpark of a few extra minutes per charge on medium loads. Not a night-and-day upgrade, but enough to finish the row of screws you thought you’d have to stop short on.

To put numbers to it:
- Drill/driver, 3-inch deck screws into pre-drilled, pressure-treated boards: I averaged around 110–130 screws per charge depending on wood density and pilot size.
- Oscillating tool, plunge cuts in drywall and pine trim: roughly 20–25 minutes of continuous mixed use before dropping to the last bar.
- Impact driver, Tapcon anchors in concrete with proper pilots: around 30 anchors per charge.

These are snapshots, not lab tests, but they map onto the “compact, everyday” niche very well. If you’re ripping plywood, cross-cutting 2x stock, or grinding, move up to a 4.0Ah or higher; the 2.5Ah pack will do it, but the efficiency just isn’t there for long stretches.

Charging experience

On SKIL’s fast charger, I consistently saw charges from one bar to full in under an hour. From fully depleted (auto-shutoff) to full typically landed in the 45–60 minute range in my shop conditions. Importantly, the pack rarely needed a cooldown delay unless I had just run a very heavy cut. The cooling fan in the charger and the battery’s own thermal management seem to play well together.

The LED fuel gauge on the pack aligns reasonably with the charger’s status lights. The last 10–15% can drop quickly under heavy load—common behavior for compact packs—so I treat one bar as the “wrap up” signal rather than an invitation to start a new task I can’t pause.

Reliability notes

Most of my testing was uneventful in the best way: charge, work, repeat. I did have one hiccup with a second sample pack that would only indicate two bars after a full charge and would trip protection early under a light load. Leaving it on the charger for an extended balance cycle temporarily improved the behavior, but the issue returned and I exchanged the unit. The replacement has been normal so far.

That experience didn’t sour me on the line, but it did reinforce a best practice: test your battery under load shortly after you get it. Check that it charges fully, holds charge, and doesn’t get abnormally hot. If anything seems off—abrupt drops from full to empty, refusal to take a full charge, or unusual odors/fluids—stop using it and swap it with your retailer or reach out to SKIL support. Lithium packs are robust when built well, but protection circuits or individual cells can still be out of spec.

Where it excels

• Everyday tasks on compact tools. The weight-to-runtime balance hits a sweet spot for drill/driver, impact driver, oscillating multi-tool, and small lights or inflators.
• Reduced heat under steady, moderate loads. The pack rarely forced me into cooldown delays, which keeps the work moving.
• Visibility and ergonomics. The indicator is bright and the form factor doesn’t get in the way on most tools.

Where it falls short

• High-draw tools. Circular saws, reciprocating saws, and grinders chew through this pack quickly. You can make the cut in a pinch, but you won’t want this as your only battery for those tools.
• Unit variance. While my primary unit was solid, a second sample misbehaved and had to be exchanged. That suggests quality can vary, so buying from a retailer with an easy return window is wise.
• Not the smallest compact out there. It’s still compact, but if you’re chasing the absolute tiniest footprint for specialty work, keep that in mind.

Longevity and cycle life

I can’t verify “2× battery life” without years of cycling, but after a few dozen charge cycles I haven’t noticed any meaningful drop in runtime. If the thermal management truly keeps internal temperatures lower, that should, in theory, help extend cycle life. The best way to stack the deck in your favor is to avoid full-depth discharges when you don’t need them, store the pack at room temperature, and don’t leave it in a hot vehicle.

The bottom line

The 2.5Ah PWRCore 20 battery hits the mark for users who value light weight and nimble handling without reducing runtime to token levels. It’s a strong match for SKIL’s compact, brushless tools and a thoughtful choice as a backup pack in a multi-battery kit. The thermal behavior is noticeably well-managed under moderate loads, charge times are quick on a fast charger, and the simple interface works as expected.

I’d pair it with a larger 4.0Ah or 5.0Ah pack if your kit includes saws or grinders—use this one to keep your drill and driver in the sweet spot and the bigger pack for heavy hitters. And I’d give any new unit a shakedown run early so you can exchange a dud quickly if you happen to get one.

Recommendation: I recommend this battery as a compact daily driver for light to medium-duty tasks in the SKIL 20V lineup. It offers a good balance of weight, runtime, and heat management. If your work skews toward high-draw tools or you can only afford one battery, go bigger; otherwise, this 2.5Ah pack is a sensible, efficient addition to a PWRCore 20 setup.
