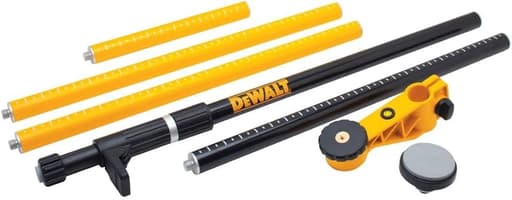

DeWalt Laser Level Mounting Pole with 1/4 in. Base

Why I reached for a mounting pole instead of a tripod

I spend a lot of time laying out kitchens, running chair rail, and snapping tile lines in rooms where a tripod is either in the way or too low. That’s why I put this DeWalt mounting pole into rotation. It’s a tensioned floor-to-ceiling stick that extends to 10 feet, takes any laser with a 1/4-20 thread, and packs into a small bag when I’m done. In the right room, it’s faster than hunting for a shelf or balancing a tripod around debris, and the line stays where I need it while I work.

Setup and first impressions

Out of the bag, the pole is lightweight—about 4.4 pounds—with screw-together aluminum sections and a spring-loaded top that creates upward pressure against the ceiling. Assembly is straightforward: thread the sections together, set the bottom pad on the floor, compress the spring at the top against the ceiling, and release to let the tension lock it in place. The height range easily covers 8- and 9-foot ceilings with room to spare, and I’ve used it in a basement with a low lid without shedding pieces all over the place.

A few observations from my first setup:
- The threads on the sections were tight out of the box. They’ll start by hand, but you need to align them carefully and avoid forcing them.
- The pads at the ends have enough grip not to skate on painted drywall or finished flooring, but I still protect delicate surfaces with a card of scrap or painter’s tape.
- The carrying bag is basic, yet it keeps the pieces together and the pads from picking up jobsite grit.

Height, tension, and stability

The spring-loaded base is the whole point of a pole like this. Compressing the head and releasing it to tension against the ceiling takes just a few seconds, and when it’s seated properly the pole stays put. On clean, flat surfaces, I didn’t see drift over the course of a day. If the floor is sloped or the ceiling has a slight crown, you can compensate by repositioning and retensioning. For older plaster ceilings with texture, I use a square of cardboard under the top pad to spread the load and avoid marks.

At full height, any slender aluminum pole will have some flex if bumped. That’s true here, especially over 9 feet. It wasn’t a problem while I was running cabinet screws or aligning tile lines, but if someone shoulders into it, you’ll see the laser wobble for a second. The solution is simple: set it where it won’t be in a walkway, tension it firmly, and make sure the pads are seated flat. For long spans of precise layout—say, setting grade lines over multiple rooms—a wall mount or tripod in an open area can still be the more stable option.

Mounting and compatibility

The head uses a standard 1/4-20 mounting thread, so my cross-line and point lasers went on directly with no adapters. The interface is simple and secure as long as the laser’s base has a standard threaded insert. If your device uses a different thread size, you’ll need an adapter, but most compact lasers in my kit are 1/4-20.

Fine height adjustment is a function of the pole sections and tension—not a micro crank—so the workflow is slightly different from a tripod. I set approximate height by engaging or disengaging a section, then fine-tune by retensioning and adjusting the laser’s bracket or the tool’s own pendulum/line controls. With practice, it’s quick, and I appreciated not having legs sprawled across the floor.

On-site performance

Where this pole shines is speed and repeatability. In a kitchen with a crowded island and temporary bracing, I had a line established at crown height in under a minute. The pole sat tight against a wall, which kept the floor open for ladders and material. I repeated the trick in a bathroom where a tripod wouldn’t fit between a vanity and shower curb. For tile layout, I liked being able to park the laser near a corner, run lines, and step around freely without snagging gear.

The aluminum construction keeps things portable. Moving room to room is painless: loosen tension, carry the assembly as one piece, reset. The bright yellow and black finish is easy to spot among tools, and the slim profile means I can tuck it behind a door when it’s not in use.

One caveat: this isn’t an outdoor solution. Without a ceiling to push against, the tensioning system has nothing to work with. In open or partially framed spaces, I default to a tripod or clamp on a stud.

Durability and care

The pole is made from thin-walled aluminum to keep weight down. That’s a double-edged sword. It’s easy to haul, but the sections will dent if you squeeze them with pliers or drop a chunk of steel on them. Treat it like an instrument, not a pry bar, and it holds up.

The threads deserve special attention. On my unit, the fit was on the snug side and there was a bit of paint and machining debris in a couple of starts. I took five minutes to wipe the threads clean and apply a light dry lubricant. From that point, they started smoothly by hand. I strongly recommend:
- Always start threads by hand with sections aligned straight. If you feel resistance early, back off and try again.
- Never grab the tubes with metal pliers to “help.” If a section is stuck, a rubber strap wrench will give you leverage without crushing the tube.
- Periodically clean the threads and reapply a light, non-greasy lube. It prevents galling and makes breakdown easier at the end of the day.

With that care, my pole has remained serviceable. If you need a tool that shrugs off daily commercial abuse without a thought, a heavier-duty pole with thicker walls and more generous thread forms might be a better fit. But that extra durability usually means more weight and bulk.

Who it’s for

• Trades and DIYers working primarily indoors under 10-foot ceilings who want a quick, floor-to-ceiling laser position without a tripod.
• Remodelers and finish carpenters laying out cabinets, trim, wainscot, or tile where floor space is at a premium.
• Occasional users who value portability and speed, and who don’t mind handling the tool with a bit of care.

Who should look elsewhere:
- Crews who’ll assemble and disassemble a pole dozens of times per day and need something nearly indestructible.
- Users working in open areas without overhead surfaces, or on uneven, dirty substrates where a tripod or wall clamp is more flexible.

The bottom line

As a room-friendly way to put a laser exactly where I need it, this DeWalt mounting pole does its job. It’s quick to set, holds steady under tension, and stays out of the way while I work. The lightweight aluminum and included bag make it easy to keep in the truck without adding bulk. The tradeoff is that the threads and tubes demand a little respect: start connections carefully, keep the threads clean, and avoid mashing the sections with tools.

Recommendation: I recommend this pole for indoor, light-to-moderate use where speed and portability matter more than bombproof construction. If you’re a homeowner, punch-list carpenter, or remodeler who needs a compact, ceiling-to-floor solution for a 1/4-20 laser, it’s a practical, capable tool—provided you treat the threads gently and don’t over-tension. If you want a pole that laughs off rough handling or heavy daily commercial use, consider a heavier-duty alternative instead.
