Features
- Electric brake for faster blade stop
- Magnesium motor housing for improved heat dissipation and drive-train stability
- Dual-Field motor designed for increased cooling and torque
- Includes a 7-1/4" 24-tooth carbide blade and a multi-functional wrench
- Integrated dust blower to clear the cut line
- Accessible carbon brushes for serviceability
- Ergonomic true-grip handle
- Bevel capacity up to 56°
Specifications
Amperage | 15 |
Arbor Size | 5/8" |
Bevel Capacity | 56 Degrees |
Blade Diameter | 7-1/4" |
Cord Length | 10 Feet |
Depth Of Cut At 45 Degrees | 1-7/8" |
Depth Of Cut At 90 Degrees | 2-7/16" |
Maximum Rpm No Load | 5,300 |
Net Tool Weight | 10.6 lbs. |
Voltage | 120V |
Product Length | 10.75" |
Related Tools
Related Articles

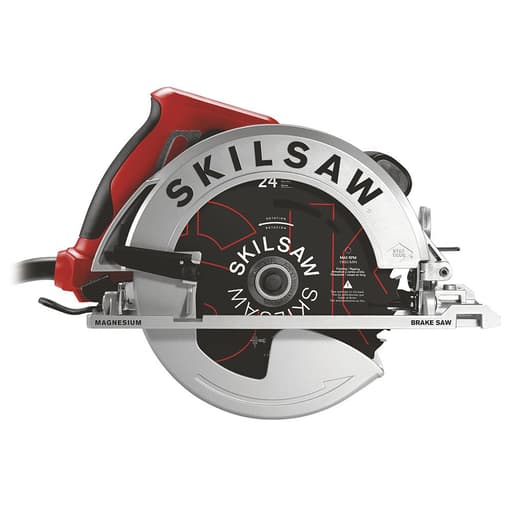

Corded 7-1/4" circular saw with an electric brake and a magnesium motor housing. The brake reduces blade coast time after trigger release. The magnesium housing aids motor cooling and stabilizes the drive train. The tool uses a Dual-Field motor designed to provide increased cooling and torque, and it supports bevel cuts up to 56°.
Model Number: SPT67WMB-01
Skil 7-1/4" Magnesium SIDEWINDER Circular Saw with Brake Review
A circular saw earns its keep by disappearing in the cut—tracking straight, stopping quickly, and staying cool when you push it. That’s exactly how the Skil Sidewinder behaved for me across a month of framing, deck work, and sheet goods. It’s not flashy, but it puts performance where it matters.
Build and design
Skil builds this saw around a magnesium motor housing, and you can feel the benefits as soon as you pick it up. At 10.6 lbs it’s not ultralight, but it balances well and resists the kind of flex that leads to chatter. The housing stays notably cooler under load than many standard aluminum-bodied sidewinders I’ve used, and that “cool head” pays off during long rips.
The footplate is flat and reassuringly stiff. On a 4-foot straightedge, mine showed no daylight and no rocking. That rigidity is a big part of why the saw tracks with confidence; I didn’t fight it through knots or when crossing framing layouts with multiple nail heads removed. The lower and upper guards cycle smoothly, and the guard lip doesn’t hang up on bevel starts.
Two small but appreciated touches: accessible carbon brushes and a 10-foot cord. Brushes are rare to see advertised on a modern saw, but I like being able to service a tool instead of binning it at the first hiccup. The longer cord cuts down on the daisy-chain tangle that eats time on site.
Power, speed, and brake
On paper you get a 15-amp motor spinning at 5,300 RPM no-load. In practice, the saw has the kind of torque that lets you lean into a rip without bogging. I ripped wet, treated 2x10s at 90 degrees and beveled 2x stock at 45 degrees with a steady feed rate. The included 24-tooth carbide blade is a framing blade—it’s not a finish cutter—but it let the motor show off its torque without burning or stalling. Swap to a higher tooth count if you want cleaner ply or trim cuts, but for structural work the stock blade is serviceable.
The electric brake is the standout “quality of life” feature. It consistently stopped the blade in about a second after trigger release with the framing blade installed. That saved me from those awkward waits before setting the saw down, and it genuinely improves safety when you’re making repeated cuts. With a heavier, high-tooth blade, stop time stretches a hair (as expected), but it’s still much faster than coasting.
Skil’s Dual-Field motor cooling isn’t just marketing fluff here. I deliberately ran the saw hard on a hot day—ripping eight sheets of 3/4-inch ply and several dozen 2x rips—and the housing never felt heat-soaked. No thermal fade, no smell, no slowing down. That’s what I want out of a corded workhorse.
Accuracy and handling
I judge a circular saw by two things: how easy it is to follow a line, and whether its scales can be trusted. The Skil Sidewinder does well on both counts.
- Sightline and dust: The integrated dust blower does a solid job of keeping the cut line clear without a vacuum. It’s not perfect on windy days or with very dusty MDF, but compared to saws without a blower, I spent less time puffing at the board or stopping to brush away chips.
- Depth and bevel settings: The levers are glove-friendly and cam down tightly without creeping. I checked 90 degrees and 45 degrees against a machinist’s square and got dead-on from the factory. The bevel scale is legible enough in good light. Depth-of-cut marks are accurate; set at 2-7/16 inches, it clears typical 2x with a little margin.
- Track and feel: There’s minimal startup twist, and the motor ramp is smooth. With two hands on the grips, the saw feels planted. One-handed trim cuts are controllable thanks to the handle geometry and weight distribution, though I still prefer two hands for anything longer than a notch.
If you’re used to worm drives, this will feel faster on the cut but lighter in the nose. Compared to other sidewinders, it’s a touch heavier but more composed, which I prefer for accuracy.
Capacity and versatility
Capacity is right in the sweet spot for a 7-1/4-inch saw:
- 2-7/16 inches at 90 degrees makes quick work of doubled 3/4-inch materials and all dimensional 2x lumber.
- 1-7/8 inches at 45 degrees covers most bevel rips and miters on framing.
- The bevel reaches up to 56 degrees, which gives you a little extra beyond the typical 45/50 stops for fascia and detail work.
The footplate slides well on plywood and framing lumber. On melamine and prefinished sheet goods, I’d add painter’s tape or a zero-clearance shoe to minimize surface scuffing—typical practice for metal shoes.
Ergonomics and controls
Skil’s “true-grip” handle lands nicely in the hand, with a neutral wrist angle that reduces fatigue on long sessions. The front pommel is well-positioned for guiding bevel cuts. Trigger throw is short, and the safety is intuitive without being fussy.
Noise and vibration are managed well for a saw in this class. It’s not whisper-quiet, but the pitch is less shrill than some high-RPM sidewinders. Vibration through the handle is low, which helps with keeping a precise line on delicate materials.
The included multi-functional wrench stores onboard, and blade changes are quick with the spindle lock. The 5/8-inch arbor is standard fare, so blade choices are wide open.
What I’d improve
- No LED light: The sightline is good and the dust blower helps, but a dedicated cutline LED would make a real difference in low-light framing, basements, and early mornings. This is one feature I missed.
- Brake consistency with heavier blades: The brake works very well with a 24T, but if you frequently run 40T and up, expect a slightly longer stop. Still much better than no brake, but worth noting.
- Scale contrast: The bevel scale markings could benefit from higher contrast for low-light conditions. Functionally accurate, just a bit harder to read in shadows.
None of these are deal-breakers; they’re refinements that would push an already capable saw closer to perfect.
Tips for getting the most out of it
- Upgrade blades for task-specific work. Keep the included 24T for framing, add a 40–60T for ply and finish cuts, and a fiber-cement blade if you occasionally cut exterior panels.
- Set depth properly. Dial the shoe so the teeth clear by a tooth height; you’ll cut faster, safer, and with less tear-out.
- Square it before first use. Mine was spot-on out of the box, but it takes 30 seconds to check with a square and adjust if needed.
- Blow out the housing. The motor cooling is excellent, but a quick blast of compressed air at day’s end keeps dust from collecting around the brushes and vents.
Who it’s for
This saw is a natural fit for framers, remodelers, and serious DIYers who want corded reliability and pro-level performance without the heft of a worm drive. If you prioritize fast brake response, consistent power, and a sturdy, accurate footplate, it’s going to feel right at home. If you mostly cut trim and cabinetry, pair it with a high-tooth blade and you’ll be surprised how clean it can cut; for pure finish work, a track saw still wins, but this covers a lot of ground.
The bottom line
The Skil Sidewinder earns high marks on the essentials: strong 15-amp power, accurate tracking, a quick and reliable electric brake, and a cooling system that doesn’t fade under pressure. The magnesium motor housing keeps it stable and cooler than many peers, the 10-foot cord is genuinely useful, and serviceable brushes extend its practical lifespan. I’d love to see an LED and slightly higher-contrast scales, but those are small asks.
Recommendation: I recommend this saw. It’s a dependable, jobsite-ready sidewinder that balances power, precision, and durability without gimmicks. If you value a quick-stopping blade, a rigid and accurate cut path, and a motor that stays cool through real work, this Skil is a smart buy.
