ZOWZEA 4" Ceiling Light Fixture Mounting Bracket Kit, 4Pcs Universal Lamp Crossbar Hardware Set for Chandelier & Wall Lights, Silver

I keep a small stash of crossbars in my electrical tote because fixture swaps rarely go exactly as planned. After using the ZOWZEA 4-inch mounting bracket kit across a few installs—two wall sconces, an entry pendant, and a replacement porch light—it’s earned a permanent spot in that stash. It’s a straightforward, no-drama set of parts that covers the most common mounting scenarios for 1/8IP fixtures, with a couple of caveats to know before you climb the ladder.

What’s in the box and what that means in practice

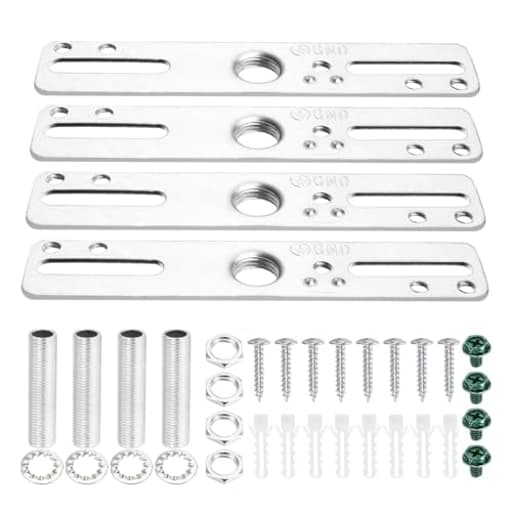

Each kit includes four identical sets, and each set gives you:
- A 4-inch zinc-plated steel crossbar
- A short 1/8IP (often called 3/8" OD) lamp pipe, 40 mm long
- A ground screw
- A lock nut for the lamp pipe

That’s a good baseline for most ceiling and wall fixtures that mount via a center nipple. The 1/8IP thread is the standard in US lamp/fixture work—27 tpi, roughly 3/8" outside diameter. If your fixture uses 1/8IP hardware (most do), you’re covered.

The crossbar is the heart of the kit. It’s a single-piece, low-profile strap that sits flush to the junction box, which is handy in tight canopies and shallow wall boxes where bulky adjustable brackets can get in the way. The center of the bar is tapped for 1/8IP, and the ends have slots for attaching to standard box screw locations.

Build quality and finish

The crossbars are zinc-plated steel with a plain silver finish. They arrived flat, with clean edges, and the tapped center threads were free of burrs. The lamp pipes thread easily into the bar and into the lock nut; I didn’t encounter binding or miss-cut threads. The finish is what I expect for a utilitarian mounting part—nothing decorative, but it resists fingerprints and won’t flash rust in normal indoor use or covered outdoor locations.

If you’re installing in a coastal environment or a truly exposed wet location, I’d still opt for additional corrosion protection (a dab of dielectric grease on threads, anti-seize on screws) or consider stainless hardware where possible. For typical indoor fixtures and protected exterior lights, the zinc plating is more than adequate.

Installation experience

The kit’s strength is that nothing feels fussy. Here’s how the installs went:

• Wall sconces: I used two crossbars to hang a pair of fairly substantial sconces on a plaster-over-brick wall with shallow boxes. The thin, one-piece strap let the canopy sit tight to the wall, and there was no interference with the sconce base. With the lock nut, I could set the lamp pipe to just the right projection so the decorative cap nuts tightened down flush.

• Entry pendant: Standard octagon box and a medium-depth canopy. The included 40 mm lamp pipe length worked, but it was right on the edge; if the canopy had been deeper, I would have needed a longer nipple. That’s one limitation of the kit—there’s only one length in the box—so keep a couple of extra lengths on hand if you frequently deal with deeper canopies.

• Porch light (covered): The crossbar’s low profile helped here as well, and the ground screw location made bonding straightforward. The fixture pulled up snug without tilting.

Across these, the bars remained flat under load and didn’t twist when tightening the lock nut—though I always counter-hold the crossbar with pliers while tightening the center nipple to avoid transmitting torque to the box.

Compatibility and fit

A few practical notes:

• 1/8IP standard: If your fixture’s center hole or existing strap is 1/8IP, you’ll be fine. If you’re working on fixtures with metric threads or 1/4IP hardware, you’ll need different parts or adapters.

• Junction boxes: The slotted holes on the ends lined up correctly with standard US box screw spacing. I mounted to both old-work and new-work octagon boxes without needing to modify the strap.

• Tight canopies: Compared to the common two-piece adjustable crossbar, this single strap sits closer to the box and gives more breathing room inside the canopy. That reduced the wire-jam frustration on my shallow sconce bases.

• Grounding: The provided ground screw threads in cleanly and gives you a solid bond point. I always attach the fixture ground to the crossbar or box per code and then to the fixture’s ground lead.

What’s not included (plan ahead)

The kit does not include the screws that attach the crossbar to the junction box. Most boxes ship with their own 8-32 screws, but they’re easy to lose during demo or buried under old paint. Keep a small assortment of 8-32 machine screws in different lengths nearby—especially useful for thick plaster rings or tile backsplashes.

It also doesn’t include decorative cap nuts or canopy screws; those are typically part of the fixture, but worth noting if you’re piecing a fixture together from spare parts.

Small adjustments you might need

On one older fixture with a slightly off-center canopy hole, I needed to nudge the bracket a hair to align the center nipple with the canopy opening. The steel is stout enough to hold its shape but still pliable enough that a minor tweak with pliers did the trick without compromising the bar. That’s not unusual—fixtures can be inconsistent—and the crossbar handled the adjustment without fuss.

Durability and load

There’s no stated load rating, so I won’t speculate. What I can say is that the bars didn’t flex noticeably under the weight of the sconces and pendant I installed. As with any fixture, the true load path includes the junction box and the structure behind it. If you’re hanging a particularly heavy fixture, verify the box is fan- or fixture-rated and properly anchored to framing, and use appropriate hardware throughout.

Tips that made the installs smoother

• Dry fit first: Thread the lamp pipe into the crossbar and test with the canopy to dial in projection before you connect wires. Lock it with the included nut when happy with the depth.
• Counter-hold the bar: Use pliers to hold the crossbar while tightening the lock nut to prevent twisting.
• Check canopy depth: If the canopy is deep, have a longer 1/8IP nipple ready. The included 40 mm piece covers many cases but not all.
• Have 8-32 screws on hand: You’ll save a trip to the hardware store.
• Bond the ground early: Attach the ground wire to the crossbar or box before you tuck conductors; it keeps the cavity tidy and code-compliant.
• Kill power and verify: Turn off the breaker and confirm with a non-contact tester before touching any conductors.

Who this kit is for

• DIYers upgrading a few fixtures who want a reliable, no-surprises mounting solution.
• Property managers or pros who benefit from keeping standard crossbars and 1/8IP hardware in the van.
• Anyone fighting with shallow canopies or tight wall boxes where bulkier adjustable brackets get in the way.

If you routinely install fixtures with unusual mounting patterns, metric threads, or very deep canopies, supplement this kit with a few specialty straps and a variety of nipple lengths.

Final take and recommendation

The ZOWZEA kit does exactly what I want from a mounting hardware pack: the crossbars are straight, the threads are clean, the finish holds up to handling, and the low-profile design plays nicely with tight canopies. The inclusion of ground screws and lock nuts covers the essentials for 1/8IP installs. The main limitations are sensible ones for a generic kit—no box screws included and only one nipple length—both easy to plan around.

I recommend this kit. It’s a dependable, practical set of parts that solved real installation problems for me, particularly in tight spaces. Keep some 8-32 machine screws and a couple of extra nipple lengths in your kit, and you’ll be able to handle the vast majority of chandelier and wall light mounts using these crossbars without unnecessary trips back to the truck or store.
