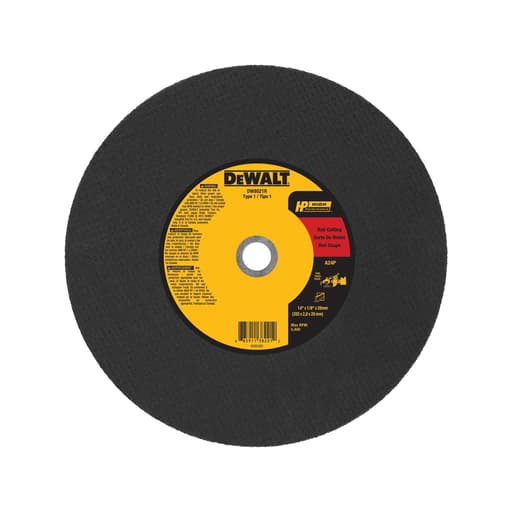

DeWalt High Speed Rail Cutting Wheel (Type 1)

Why I reached for this cutting wheel

On jobs where I’m cutting rail or heavy steel with a gas saw, I look for a wheel that’s fast, predictable, and doesn’t beat up the tool or the operator. This DeWalt cutting wheel checks those boxes. It’s a 14-inch, Type 1 aluminum oxide wheel with a 1/8-inch kerf and a 20 mm arbor, sold in a 10‑pack. Nothing flashy—just a straightforward spec that’s common in the rail world—and that’s part of why it works well.

Setup, fit, and compatibility

The 20 mm arbor will drop right onto many handheld cut-off saws used in rail and concrete work. If you’re running a saw with a 1-inch arbor, plan on a proper reducing ring or a different wheel; don’t try to fudge the fit. The wheel seated squarely on my flanges with the factory blotters intact and ran true out of the box. As always, I verified the wheel’s max RPM exceeded my saw’s no-load speed and gave it a brief free spin to check balance before touching metal.

Storage matters with resin-bonded wheels. The 10-pack comes bundled so the discs stay flat, and I kept them dry and off the floor. A quick visual check showed no warping or edge chips before mounting.

Build and abrasive

This is an A24P aluminum oxide wheel—coarse, open, and aggressive by design. The “P” bond hardness here strikes a useful balance: hard enough to hold grain under load, soft enough to shed dull abrasive and present sharp edges on each pass. For high-speed rail cutting, that’s the recipe you want. The Type 1 form gives you a full-face cut and a stable feel with the guard—no depressed center, no odd leverage on the flanges.

At 1/8 inch thick, it lands in the sweet spot for rail and structural steel. Thinner wheels can be faster in light stock but flex more and wear faster; thicker wheels track well but make a wider kerf and generate more heat. This one stays straight without making you pay for it at the kerf.

Cutting performance

• Starting the cut: Engagement is easy and predictable. The wheel bites readily without skittering, so I could feather in at the web or base and commit without dancing across the surface. That initial bite is a good indicator of grain exposure and bond, and here it felt dialed.

• Speed and feed: With a steady feed on rail head and web cuts, the wheel maintains pace without begging for pressure. If I pushed too hard, the sound and spark stream told me to back off, and the wheel responded by clearing and cutting clean again. That feedback loop is what I look for to avoid glazing or overheating.

• Tracking and stability: It runs smooth at full speed, with minimal chatter. The cut stays on line even if you hit a hard spot or a surface irregularity; I didn’t feel the wheel yaw or try to walk off the score line.

• Heat and burr: Heat generation is controlled for a coarse wheel. The cut edges on carbon steel and cast iron showed typical abrasive saw burr that cleaned up quickly with a file. No blueing on mild steel at sensible feed rates; on thicker sections you’ll still see some discoloration—as expected—but nothing excessive.

• Wear and life: Abrasive wheels are a consumable, so I measure “life” in how consistently they cut as diameter drops. This one maintains its aggressiveness well into the mid-life of the disc. Diameter loss is steady and predictable; I didn’t see premature chunking or edge crumbling. For me, that translates to fewer mid-cut swaps and a more consistent rhythm through a day’s work.

Materials I cut

• Rail steel: On standard rail, the wheel has the horsepower to get through head, web, and base without resorting to abusive feed. The narrow kerf reduces drag, and the balance makes a difference when you’re squaring up a head cut where the saw wants to pull.

• Cast iron: The wheel holds up well and doesn’t glaze quickly on cast iron fittings and sections. Spark volume remains healthy, and the cut rate stays acceptable without excessive pressure.

• Mild and structural steel: Angle, channel, and plate up to typical rail-side work thickness cut quickly and straight. For thin sheet, I’d go thinner on the wheel if that’s your primary task, but this one still performs fine.

• Stainless and non-ferrous: Aluminum oxide will cut stainless, but if that’s your daily material, a dedicated inox wheel or zirconia blend will keep heat down and reduce loading. For aluminum or softer non-ferrous, a different wheel family is the better choice.

• Masonry: Not the right tool—use a silicon carbide or diamond wheel for concrete, block, or stone.

What stood out in use

• Smooth running: Balance is noteworthy. High-speed wheels can feel harsh; this one is composed, which keeps the saw easier to control and reduces operator fatigue.

• Consistent bite: Even as the wheel wore, the cut rate didn’t fall off a cliff. That consistency is what I want from an A24P wheel on a long day.

• Predictable wear pattern: The wear land stayed even. No odd convexity or edge rounding that would make alignment tricky halfway through a cut.

Limitations and things to consider

• Arbor size: The 20 mm arbor is perfect if your saw matches; it’s a mismatch if you’re set up for 1 inch without adapters. Double-check before buying a pack.

• Kerf vs. rigidity: 1/8 inch is a good compromise, but if you’re exclusively on thin tube or sheet, a 3/32-inch wheel will be faster and generate less heat. Conversely, if you’re rough-cutting thick sections and abuse is likely, a thicker wheel could survive lateral loads better.

• Material specificity: For stainless or nickel alloys, consider a wheel designed to minimize contamination and heat. This wheel will do it, just not as efficiently as a specialized blend.

• Storage sensitivity: Like all resin-bonded wheels, these don’t love moisture or extreme heat. Keep them flat and dry to preserve life and safety.

Safety and technique tips

• Use the full guard and correct flanges. Type 1 wheels demand the guard; don’t run it open.

• Let the wheel cut. If the spark stream goes dark and the motor bogs, you’re feeding too hard. Ease up to avoid glazing and premature wear.

• Dress your starts. A light scoring pass helps the wheel track, especially on curved sections or rounded surfaces.

• Square your cuts. On rail, a straight, square start saves time on cleanup and ensures uniform alignment for joining operations.

Value and pack format

The 10-pack format makes sense for field crews and maintenance teams. You’ll likely run through multiple wheels on a long shift, and having matched, consistent discs reduces variability. The pack is light enough to stash in a gang box without eating space, and the per-wheel cost is typically more favorable in multi-packs. I prefer keeping spare wheels from the same lot when I’m chasing consistency across a job.

Who it’s for

• Rail maintenance and construction crews needing a reliable, aggressive wheel for high-speed saws.

• Fabricators and ironworkers who cut heavier sections and want a stable, predictable Type 1 wheel.

• General contractors who need a go-to 14-inch metal cut-off wheel for mild steel and cast iron on a handheld saw.

If you’re mainly working thin stock, stainless, or non-ferrous, a different wheel spec might be a better daily driver.

Final thoughts and recommendation

This DeWalt cutting wheel does the fundamental things right: it bites cleanly, runs smooth at speed, tracks straight, and wears predictably. The A24P grain and bond give it the aggression you want on rail and heavy steel without turning every cut into a fight. The 1/8-inch thickness is a practical compromise between speed and stability, and the 10-pack format supports real-world workflows where you need consistency across multiple cuts and operators.

I recommend this wheel for anyone doing high-speed cutting of rail, cast iron, and carbon steel on a compatible 20 mm arbor saw. It’s not a one-wheel-for-everything solution—no abrasive wheel is—but within its lane, it’s dependable, efficient, and easy to live with. If your saw setup matches the arbor and your work leans toward rail and heavier sections, this belongs in the kit.
