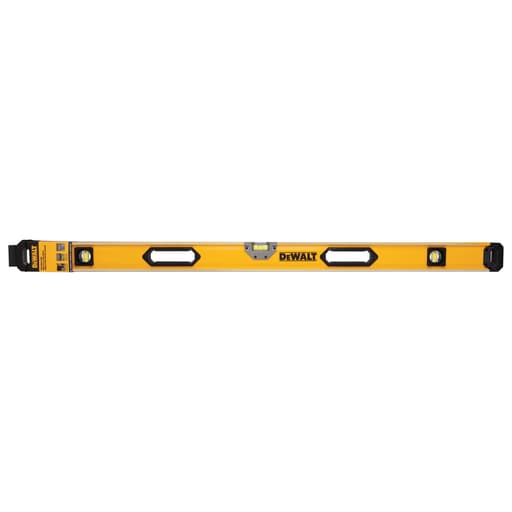

DeWalt 48 in. Magnetic Box Beam Level

Why I kept reaching for this 48-inch DeWalt level

A good 4-foot level earns its place by doing three things well: staying straight, reading true, and taking a beating without losing either. After several weeks of framing, hanging cabinets, and setting door jambs, this DeWalt 48-inch level proved it can be trusted for everyday layout and alignment—especially on steel where its magnets shine—while showing a couple of quirks worth checking before you walk off the job with it.

Build and rigidity

The box-profile aluminum frame has a large cross section that resists twisting and bowing. Compared to hollow I-beam levels, the box shape here is noticeably stiffer when bridging wider gaps. I checked flatness on both reference faces with a machinist’s straightedge and feeler gauges; the sample I kept was flat within a couple thousandths over the full 48 inches, which is excellent for a jobsite level. That stiffness matters when you’re spanning uneven studs or using just a few contact points on masonry.

The frame edges are cleanly machined on the working faces, and the “bridged” center vial leaves a continuous, uninterrupted edge for scribing lines. That small design choice sounds trivial until you try to transfer a level line across the frame where a conventional vial housing would otherwise interrupt your pencil.

At 3.6 lb, it strikes a good balance: substantial enough that it plants itself against a surface, light enough to carry and maneuver one-handed on a ladder.

Vials and accuracy

There are three block vials: one magnified center vial and two standard end vials. Block (tubular) vials are a durability upgrade over cheap barrel vials; they tend to hold alignment better under shock. The center vial’s magnification does exactly what you want—makes the meniscus easier to split precisely without a nose-to-level stance. In lower light, that little boost in readability saves time.

DeWalt lists the accuracy at ±0.0005 in/in (0.05 mm/m). In practice, my flip tests (read, rotate 180°, re-read) on a granite surface plate returned identical reads on the horizontal vial, and my plumb flip against a steel column matched as well. That tracks with the spec. If you’ve never tested your levels, this is the method I recommend before first use and periodically thereafter. Given the die-cast center vial holder, I’m confident the middle vial stays put after normal abuse.

Magnetic base performance

The magnets along the base are strong and well distributed. On steel studs, electrical panels, and beams, the level grabs securely with an audible “snap” and doesn’t creep. Overhead, I could set it on a garage door track and it stayed put while I adjusted brackets—no third hand needed. It’s an underrated safety and productivity upgrade if you work around ferrous metals.

One practical note: strong magnets attract filings. Wipe the base before setting it on painted surfaces to avoid scratches or skewed readings from debris. A quick pass with a rag or a brush as part of your pack-up routine keeps the edges clean.

Ergonomics and handling

DeWalt gets the little things right here. The handgrips are generous and rubber-lined, so you can carry and place the level comfortably even with gloves on. The length is the sweet spot for residential framing and trim—long enough to average out minor surface undulations, short enough to wield in a small bathroom.

The reference faces offer enough real estate to bear evenly against studs or jambs without rocking, and the cross section is stable when you stand the level on edge. Sight lines to the end vials are clear at common working angles.

Durability and end caps

The end caps are a mix of metal and over-mold, designed to absorb impacts. Mine shrugged off drops from waist height onto concrete with no shift in vial readings. The caps also protect the corners from dings that can ruin a reference face.

One caveat: on one retail sample I inspected, the end cap on a single corner sat a hair proud of the working face, which could keep you from reading tight into a corner or using the level end-to-end as a straightedge. On my test unit, the caps were flush and didn’t interfere. My advice is simple—run a finger along the end transitions before you buy, and if anything protrudes past the machined face, swap it for another unit. If a cap takes a hard hit, recheck flushness; the parts are serviceable, and the limited lifetime warranty should cover defects.

Layout benefits of the bridged center vial

That “bridged” center vial is more than marketing. Because the frame’s top edge continues unbroken across the vial opening, you can scribe long lines without lifting the pencil. When laying out shelf standards or marking tile batten lines, the uninterrupted edge saves the stop-and-start that comes with a conventional cutout. It’s a small but real workflow improvement.

Real-world use cases

• Cabinet installation: The magnified center vial made micro-adjustments on shims faster. I could split the bubble cleanly from a normal working distance.
• Metal stud framing: The magnetic base paid for itself; I stuck the level to studs while tying in tracks and had both hands free to fasten.
• Door setting: The combination of stiffness and weight helped the level stay planted on jambs without drifting as I tweaked hinge screws.
• Electrical and HVAC: On ladder work around panels and ducts, the magnets kept the level where I put it, reducing up-down cycles.

Accuracy retention and maintenance

Any level is only as good as its last hit. Between the block vials, the die-cast center housing, and the rigid frame, this one holds zero well. Still, do yourself a favor:

• Perform a flip test when new and after significant drops.
• Keep the reference faces and magnets clean; metal swarf can shift readings.
• Store it where the frame won’t get torqued—hung or flat on a shelf beats buried in a pile.

If something does go sideways, DeWalt backs this with a limited lifetime warranty for defects. It’s not a calibration program, but it’s insurance against a bad glue joint or casting issue.

Where it falls short

No tool is perfect, and there are a couple of considerations:

• Quality control variance: As noted, I’ve seen a unit with a slightly proud end cap and heard of a sample with a subtle crown on one face. Mine tested flat and flush. Check before you commit a day’s layout to it.
• End-to-end straightedge use: If you rely on a level as a dead-straight straightedge for marking long cuts, you’ll want to confirm both end caps sit perfectly flush or remove a cap temporarily for that task.
• Magnet-only base: If you prefer magnets on both faces for hanging in multiple orientations, this model concentrates them on the base. That’s typical for this class, but worth knowing.

For pure vial visibility and bombproof alignment, some premium German-made levels still set the bar—at a higher cost. This DeWalt closes the gap sufficiently for most trades without feeling like a compromise.

The bottom line

This DeWalt 48-inch level hits the marks that matter: dependable accuracy, excellent readability, strong magnets for hands-free work, and a frame that can take real jobsite abuse. The bridged, magnified center vial and stout box profile make daily tasks a touch faster and more precise. While I recommend giving the ends and faces a quick inspection for flushness and flatness before you walk out of the store, my test unit proved true and stayed that way through weeks of use.

Recommendation: I recommend this level for carpenters, remodelers, electricians, and HVAC techs who split time between wood and steel. The magnet strength, rigid frame, and readable vials make it a trustworthy primary level. If you demand absolute straightedge perfection for layout in finish carpentry, confirm your sample’s faces and end caps are dead flush—or choose a dedicated straightedge to complement it.
