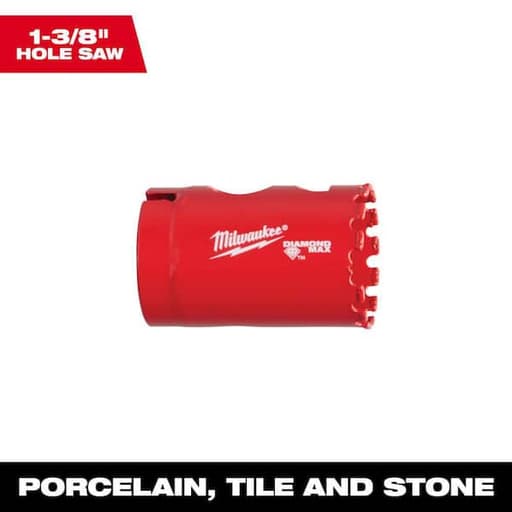

Milwaukee Diamond Max Hole Saw

Cutting through tile, stone, and glass can often feel like a daunting task, and finding the right tool to make clean, precise cuts without damaging your material can be a challenge. Recently, I had the opportunity to use the Milwaukee Diamond Max Hole Saw (model number 49-56-5625) for a variety of projects, and I was keen to see if it lived up to its reputation for performance and durability.

One of the first things I noticed about this hole saw is its build quality. The diamond-coated edge gives it a robust and durable feel, suggesting it could handle tough materials like porcelain tile, stone, and glass with ease. Milwaukee claims that this tool offers "maximum diamond durability and retention," and I was eager to put that to the test.

Starting with a project that involved drilling through porcelain tile, I followed the recommended technique of beginning the cut at a 45-degree angle before gradually bringing the drill up to a 90-degree angle. This approach proved to be very effective. The hole saw cut through the tile smoothly and quickly, leaving a clean, chip-free hole. The heat resistance feature was evident as the tool remained cool despite continuous drilling, which is a significant advantage when working with heat-sensitive materials.

One feature that stood out was the improved braze for superior diamond retention. Throughout my drilling, the diamond coating showed no signs of wear or degradation, even after multiple uses. This durability is a significant plus, as it ensures the tool can be relied upon for repeated tasks without the need for frequent replacements.

However, it wasn't all smooth sailing. When attempting to drill through cement board, I encountered some difficulties. While the hole saw performed admirably on the tile, it struggled with the cement board, causing the diamond coating to wear down faster than expected. This discrepancy in performance between different materials suggests that while the hole saw excels in certain applications, it may not be the best choice for all tasks.

To get the most out of this tool, it's crucial to pair it with the right equipment. Using a hammer drill with a large arbor provided the best results. This setup allowed for more efficient drilling, though it did require multiple rechargeable batteries due to the power consumption. For those without access to a hammer drill, a standard cordless drill can still get the job done, but it may take longer and require more effort.

A notable aspect of the Milwaukee Diamond Max Hole Saw is its ease of use. The tool's design makes it straightforward to start and maintain a cut. Additionally, the new access holes in the back of the hole saw make it easier to remove the core material, which is a thoughtful design improvement that enhances the overall user experience.

One area where the tool could improve is in the instructions provided. While the basic technique of starting at an angle is covered, more detailed guidance on how to handle different materials and maintain the tool's longevity would be beneficial. For instance, using water to cool the bit during extended drilling sessions can significantly extend its life, a tip I found valuable but not explicitly mentioned in the instructions.

During my testing, I also tackled some more specialized tasks, such as drilling through glass and ceramic pots. The hole saw performed exceptionally well in these scenarios, making clean and precise cuts with minimal effort. The diamond-coated edge proved to be a game-changer, especially when compared to traditional carbide-tipped bits that I've used in the past. The cuts were smooth, and there was no chipping or cracking, which is often a concern when working with fragile materials.

For larger projects, such as drilling multiple holes in stucco or brick, the hole saw's performance remained consistent. Even after drilling numerous holes, the diamond coating held up well, and the tool continued to perform efficiently. However, it's essential to manage heat buildup by using water or allowing the tool to cool down periodically, especially during extended use.

Overall, the Milwaukee Diamond Max Hole Saw is a robust and reliable tool for anyone working with tile, stone, and glass. Its durability, ease of use, and ability to make clean, precise cuts make it a valuable addition to any toolkit. While it may not be the best choice for all materials, its performance in its intended applications is impressive.

Would I recommend the Milwaukee Diamond Max Hole Saw? Absolutely, but with some caveats. If your primary tasks involve cutting through tile, stone, and glass, this tool is a fantastic option that will deliver excellent results. However, if you need to drill through more abrasive materials like cement board regularly, you might want to consider a different tool or be prepared for some wear and tear.

In conclusion, the Milwaukee Diamond Max Hole Saw lives up to its name with its diamond-coated edge and high performance. It's a tool that can make your projects easier and more efficient, provided you use it within its optimal range of applications. With proper use and care, this hole saw can be a long-lasting and valuable asset in your collection.
