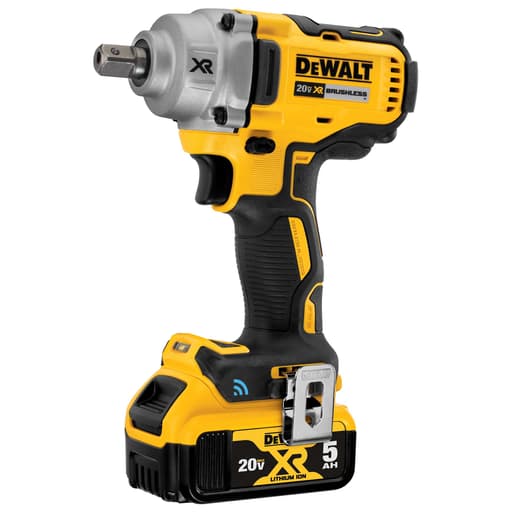

DeWalt 20V MAX Tool Connect 1/2 in. Mid-Range Impact Wrench with Detent Pin Anvil Kit

A week with a smarter mid‑range impact

I put the DeWalt Tool Connect impact wrench to work over the past couple of weeks on the kinds of jobs it’s built for: swapping passenger‑car wheels, installing mechanical anchors, assembling grooved couplings, and breaking loose flange hardware that’s seen a few New England winters. It’s a mid‑range, 1/2‑inch detent‑pin model with a brushless motor and Bluetooth integration, and the story here is less about brute force and more about control and repeatability.

Size, balance, and build

Bare, the tool is 3.48 lb; pop on a 5.0Ah pack and you’re just under five pounds. The housing is compact at 6.95 inches long, which let me sneak between a strut and inner fender to hit a top knuckle bolt without resorting to wobble extensions. Balance is good; with DeWalt’s 5Ah packs the center of mass sits just ahead of the trigger guard and doesn’t feel nose‑heavy in extended overhead work.

The 1/2‑inch anvil uses a detent pin. That’s great for retention—sockets stay put when you’re tugging out of a tight bay—but it’s slower for frequent socket changes than a hog ring. If you swap sockets all day, that’s a trade‑off to consider. The overmold is durable, the belt clip is sturdy, and the on‑board LED is brighter than most and, uniquely, adjustable for brightness and delay.

Power and real‑world performance

On paper, you get up to 600 ft‑lb breakaway and 330 ft‑lb fastening, with a 0–2000 RPM no‑load speed range. In practice, that tracks. It has the muscle for automotive and general mechanical work but stops short of “big bolt” territory.

• Passenger‑car lug nuts (factory‑torqued) came off consistently at mid speed. Corroded or air‑gun‑over‑torqued lugs occasionally needed a second, longer hammering burst, but this wrench got them done without resorting to a breaker bar. On heavy‑duty truck wheels or severely seized fasteners, I ran into the limits you’d expect from a mid‑range tool—this isn’t a 1000+ ft‑lb brute.

• On 1/2‑inch flange bolts with threadlocker, the tool broke them free cleanly once I let it hammer for a couple seconds. For installation, it comfortably ran 3/8‑ and 1/2‑inch hardware down, and I finished to spec with a torque wrench. That’s always my recommendation; use the impact to take up the slack and set final torque with a calibrated wrench.

• For mechanical anchors in concrete, being able to cap the speed and control the run‑down (more on that below) meant fewer over‑driven heads and better consistency across a row.

Vibration feels well‑managed for its class, and the motor ramps smoothly with the variable trigger. Noise is typical impact‑wrench loud—ear protection is still a must indoors.

Control is the standout

The real differentiator is the app‑enabled control. Through DeWalt’s Tool Connect, you can program three user modes. Each mode lets you set speed limits, LED brightness and delay, and select behaviours like Precision Wrench. I set mine like this:

• Mode 1: Low speed, Precision Wrench with a short “pause on impact” and auto‑shutoff for delicate assembly and smaller fasteners.
• Mode 2: Medium speed, no auto‑shutoff, general purpose.
• Mode 3: High speed with a longer pause plus a reduced runoff speed to prevent overtightening wheel studs.

Precision Wrench deserves special mention. On rundown, it senses impact, pauses to let the joint settle, and then either stops or continues at a user‑set reduced speed. That pause takes the panic out of seating fasteners—you get the speed of an impact with fewer chewed threads and less risk of snapping a smaller bolt. It’s not a torque wrench substitute, but it’s effective at keeping you in the safe zone.

Precision Tap: niche but clever

Precision Tap automatically alternates forward and reverse for thread tapping. With a tapping adapter and proper cutting fluid, I used it to chase and lightly tap some 1/4‑20 holes in a fixture plate. The quick auto‑reverse clears chips and helps avoid burying the tap. I wouldn’t use an impact wrench for production tapping or brittle taps, but for chasing threads or light tapping with the right accessories, this mode is genuinely helpful and faster than feathering the trigger manually.

The Bluetooth piece: more than a gimmick

Pairing the tool took a minute or two, and once connected, programming modes was straightforward. Beyond control, the app adds some fleet‑friendly diagnostics: you can see tool temperature, trigger counts, total run time, and even the coin‑cell status that powers the Bluetooth module. For a one‑person shop, those numbers are nice to have; for a crew, they’re useful for maintenance intervals and verifying usage.

You also get last‑seen location and a lockout option. Last‑seen isn’t GPS—it’s where your phone last had contact—so think of it as a breadcrumb, not a tracker. Lockout can disable the trigger when the tool leaves a defined range. It’s not theft‑proof, but it’s a deterrent and adds peace of mind in shared environments.

A practical note: the Bluetooth module runs on a coin cell. The app shows its status, and mine came full. Just don’t forget it exists; if you rely on lockout, keep that coin cell fresh.

Battery life and charging

The kit includes two 5.0Ah packs and a charger. With a brushless motor and sensible mode limits, runtime is excellent for a mid‑range impact. I bounced between tire work, anchor installs, and coupling assembly in a day and didn’t drain a single pack. Having a second 5Ah battery means you can keep rolling while one charges, and because it’s on DeWalt’s 20V platform, your other packs fit right in.

Detent pin vs. hog ring

Socket retention is rock‑solid with the detent pin anvil, which I appreciated when yanking a stuck deep well out of a blind pocket. If your work has you changing sockets constantly, the extra step to depress the pin can slow you down. It’s a durability and security win with a small speed cost.

Ergonomics and lighting

The grip angle feels natural, the trigger modulation is predictable, and the LED work light is better than average. Being able to dim it and set the shutoff delay in the app seems small until you’re under a dash and don’t want a floodlight blinding off a shiny bracket. I set a short, low‑brightness delay for close‑in work and a longer, brighter delay for dark utility rooms.

Service, warranty, and durability

Fit and finish are what I expect from DeWalt’s pro line. After a week of dust, drops onto rubber mats, and contact with concrete edges, the housing shows scuffs but no cracks, and the anvil still spins true with minimal wobble. The warranty package—3‑year limited, 1‑year free service, and 90‑day satisfaction guarantee—adds a layer of confidence if this will be your daily driver.

Where it shines, and where it doesn’t

Pros:
- Strong, compact mid‑range power: 600 ft‑lb breakaway, 330 ft‑lb fastening
- App‑programmable modes that actually improve outcomes (Precision Wrench, LED control)
- Precision Tap is useful for thread chasing/light tapping with the right accessories
- Fleet‑friendly diagnostics and basic security features
- Two 5.0Ah batteries and charger included; excellent runtime
- Comfortable balance and a durable, compact form factor

Trade‑offs:
- Detent pin slows socket changes compared with hog ring
- Bluetooth features give diminishing returns if you’re a single user who never reconfigures modes
- Not a replacement for a high‑torque impact on heavily seized or large‑diameter hardware
- Lockout and last‑seen are helpful but not theft‑proof; rely on procedures, not just the app

Recommendation

I recommend the DeWalt Tool Connect impact wrench for techs and builders who value control and consistency as much as raw torque. Its programmable modes and Precision Wrench genuinely reduce over‑tightening and fastener damage, the brushless power is ample for automotive, MEP assembly, and general maintenance, and the kit’s two 5Ah batteries keep you moving. If your work lives in the realm of heavy equipment teardown or severely corroded fasteners, you’ll want a higher‑torque unit alongside it. If you don’t care about app features and never change settings, there are simpler models that will save a few dollars. For everyone else, this is a smart, compact mid‑range impact that earns its keep by helping you do cleaner, more consistent work.
