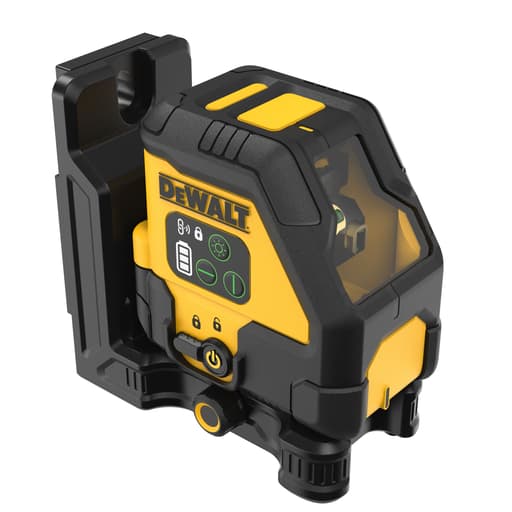

DeWalt USB Rechargeable Green Cross Line Laser Base Kit

Why I reached for this laser

I put the DeWalt green cross-line laser to work across a week of interior tasks—hanging cabinets, laying out a tile backsplash, and checking a long run of wainscoting—where straight, repeatable references save more time (and mistakes) than any tape measure. I wanted something bright enough for daylight interiors, accurate, quick to set up, and not tied to proprietary chargers. This laser checks those boxes and adds a few quality-of-life touches that make day-to-day use smoother than budget options.

Setup and first impressions

Out of the case, the kit includes the laser, a USB‑C cable, a metal mounting plate, and a storage case. There’s no wall adapter, but any common USB‑C charger works. The pendulum lock is a simple slider: unlock it and the tool self-levels; lock it for transport. Within about a second on a stable surface it settles into a clean horizontal and vertical cross.

The self-leveling range is ±4°. If you’re outside that range (say, perched on a crooked shelf), the lines flash—clear enough feedback that you need to reposition. The housing is overmolded and IP54-rated, so the usual jobsite dust and the occasional splash aren’t a worry. It feels solid without being bulky, and the base gives you stable footing on flat surfaces.

Mounting options that actually help

Mounting versatility is where this tool earns its keep. You get:
- Integrated rare-earth magnets that grab onto the included plate or any suitable steel surface
- 1/4‑20 and 5/8‑11 tripod threads for camera tripods or construction-grade stands
- A fine adjustment knob on the base for nudging the beam without shifting the whole tool

The magnets are very strong—great for confidence on corner bead or steel studs, but they can pinch if you get careless near other metal. On a tripod, the fine adjustment is the hero: I could dial a vertical line right onto a cabinet reveal or tile joint with fingertip control instead of bumping the tripod legs. For tasks like centering a sink faucet on existing tile, that precision makes a difference.

Visibility and accuracy

Green lasers are easier to see indoors than red, and that’s true here. In bright rooms I had no trouble seeing the line across 30–40 feet of wall, even near windows. The beam thickness is appropriate—fine enough to split a pencil mark at close range without turning into a fuzzy band at distance. It’s rated ±1/8 in. at 30 ft, and my spot checks—setting horizontal at one end of a room and measuring down to the line at the other—were consistent with that spec.

For longer interior runs, I like to use a small target plate to define the line when I’m 50–100 feet away. The laser’s advertised visual range is up to 150 ft in line-of-sight conditions, which is realistic in a long, relatively dim corridor but optimistic in sunlit spaces. Outside in bright sun, plan on a detector; with DeWalt’s DW0892G detector (sold separately), the maximum range extends to 330 ft.

Power, runtime, and charging

The built-in battery charges via USB‑C and can be used while plugged in. That last part matters: I ran it off a small USB power bank on a tripod for a full afternoon while charging the internal pack, and the workflow was seamless. DeWalt quotes up to 11 hours per charge with both beams at maximum brightness; my mixed use (cycling brightness and beams) easily covered a long day of intermittent layout with margin. Not including a wall adapter is a minor annoyance, but most of us already carry one for phones or tablets.

Brightness is adjustable, which is worth using. Indoors, the lowest setting still gives a crisp line and extends runtime. I reserve max brightness for sunlit rooms or long throws.

Controls and modes

The interface is straightforward: lock/unlock the pendulum to enable self-leveling, then select horizontal, vertical, or both beams. Brightness cycles quickly, and the tool remembers your last mode. The option to pair a remote (sold separately) is smart for solo work—especially when the laser is across the room or high on a stand—but I used the onboard controls without issue.

Day-to-day results

• Cabinet install: I ran a perfectly level line for upper cabinet rail screws, then switched to vertical to keep cabinet faces aligned at the ends. The fine adjustment knob was perfect for landing the line on a pre-marked stud.
• Tile backsplash: For a running bond, I used the vertical line to keep outlets and tile edges aligned across two walls. The bright green line stayed visible even when the room was lit for other work.
• Wainscoting: In a long hallway, I set the horizontal at my target height, then used a tape measure back to the line every 10–12 feet to confirm the floor’s ups and downs. Consistency stayed within the expected tolerance.
• Framing touch-ups: On steel studs, the magnet mount let me “park” the laser at eye level without a tripod, then hop it down the run as I worked.

In each case, the combination of fast self-leveling, good visibility, and solid mounting options kept me moving rather than fussing.

Durability and transport

The IP54 rating is table stakes for pro tools now, but it’s important. Between drywall dust and occasional drips, I want a laser that won’t quit mid-job. The overmolded body has enough rubber to shrug off minor knocks. Always lock the pendulum before transport; doing so protects the internal gimbal, and the lock engages positively. The included storage case is compact and fits the essentials, though it’s not a hard case. If you want this to live in a stackable system with other DeWalt tools, you’ll be improvising.

What I’d change

• Include a wall adapter: USB‑C is the right move; a small 5V adapter would reduce rummaging on jobs where power bricks walk away.
• Consider a removable battery option: The internal pack helps keep size and cost down, but hot-swapping would appeal to crews working continuous shifts.
• Accessories add up: The remote and detector are genuinely useful, but they’re extra. That’s normal for the category, yet worth budgeting for if you need long-range or remote control.
• Not a 360° laser: This is a cross-line unit. If you need continuous 360° horizontal or dual 360° planes for drop ceilings and partition layout, look at DeWalt’s 12V/20V 360° models instead.

None of these are dealbreakers for what this tool is designed to do, but they frame who it’s best for.

Who it fits

• Finish carpenters, remodelers, and installers who need a dependable interior reference line with pro-grade brightness and accuracy
• DIYers upgrading from bubble levels and chalk lines for picture rails, shelving, and kitchen/bath projects
• Trades working around steel studs or corner bead who can take advantage of the strong magnet mount
• Anyone who prefers universal USB‑C charging and the ability to run while charging

If your work is mostly exterior in full sun or large-scale layout, pair it with a detector or step up to a rotary/360° laser suited to that environment.

The bottom line

The DeWalt green cross-line laser is a well-executed, modern take on a core layout tool: bright, accurate, quick to deploy, and easy to keep powered thanks to USB‑C and run-while-charging capability. The strong magnets, tripod threads, and fine adjustment knob translate directly into faster, more precise setups. Accuracy met spec in my checks, visibility was excellent for interior work, and the housing feels ready for daily use.

I recommend this laser for pros and serious DIYers who spend real time on interior alignment tasks. It’s not the cheapest path to a straight line, but the combination of visibility, mounting flexibility, and charging convenience makes work go faster and with fewer compromises. If you need 360° coverage or out-in-the-sun range without a detector, look elsewhere. For most interior leveling and alignment, this is exactly the dependable, no-fuss tool I want in my kit.
