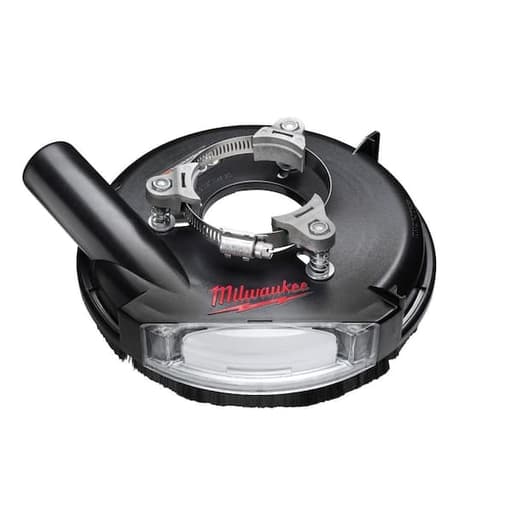

Milwaukee Universal Surface Grinding Dust Shroud

As an avid DIYer, I've tackled a fair share of concrete grinding and sanding projects. The Universal Surface Grinding Dust Shroud by Milwaukee, model 49-40-6105, caught my eye due to its promise of efficient dust collection across various grinder brands. Here’s my comprehensive take on this tool, based on my hands-on experience.

Installation and Compatibility

First off, the installation process was a breeze. The shroud is designed to be compatible with a range of grinder brands, and it lived up to this claim. I tested it on both a Milwaukee 2785-20 angle grinder and a 5" Makita 13 amp grinder. The shroud fit snugly with just minor adjustments. However, I did encounter a slight hiccup with the Makita grinder due to its shorter shaft. A back spacer was required to make it work properly, which added a bit of complexity but nothing insurmountable.

Dust Collection Efficiency

The primary purpose of the shroud is to minimize dust and debris, and it excels in this area. When hooked up to a shop vac, the dust collection was impressive. While grinding a concrete porch to correct a drainage issue, I noticed that dust was nearly non-existent. The high-density bristles around the perimeter did a stellar job of containing dust, even when I accidentally lifted one side or went over an edge. The only time dust became an issue was when the shop vac filter clogged, which is more of a vacuum issue than a shroud problem.

I also used the shroud for grinding flooring glue off a concrete slab. Without the shroud, the workspace would have been engulfed in a cloud of dust. With the shroud and a good vacuum system, the dust was minimal, making cleanup significantly easier.

Visibility and Control

The clear front clip is a thoughtful addition, providing good visibility and control during grinding. This feature allowed me to see the grinding surface clearly, making precision work more manageable. However, the clear clip did break on me during the first use, which was disappointing. The durability of this component could definitely be improved.

Fit and Craftsmanship

One of the standout features is its fit. The shroud fits collar diameters ranging from 2-1/8" to 3", and it accommodates various collar heights and insert heights. This versatility is valuable, especially if you own multiple grinders. However, I did find it challenging to center the shroud in relation to the arbor, which required some tinkering.

The craftsmanship of the shroud is solid for the most part. The high-density bristles are durable and effective. However, the durability of the clear front clip and the need for additional adapters for certain shop vacs detract from its overall quality. The shroud's tube didn’t fit any standard shop vac or adapters I had on hand, necessitating an additional $30 purchase for a special adapter. This was an unexpected and somewhat frustrating expense.

Performance in Different Scenarios

I put the shroud to the test in various scenarios, including sanding cedar and hardwoods, grinding old mortar off plywood, and even working on thin-set concrete. In each case, the shroud performed admirably. It significantly reduced dust, making the workspace cleaner and safer.

When sanding cedar and hardwoods, the shroud effectively captured nearly all the dust, keeping both me and my workspace clean. My wife, who usually dreads the aftermath of my woodworking projects, was particularly pleased with the reduced mess.

Grinding old mortar off plywood was another task where the shroud shined. Though mounting it securely took some effort, once it was in place, it worked flawlessly, containing the dust efficiently.

However, when working on thin-set concrete, I did notice that the exit hole could be larger. The thin-set sometimes overwhelmed the shroud, causing me to slow down to ensure proper dust collection. This could be an area for improvement in future designs.

Ease of Use and Versatility

Despite a few minor setbacks, the shroud is generally easy to use. Once installed correctly, it stays in place and performs its job effectively. Its versatility across different grinder brands and sizes is a significant advantage, making it a valuable addition to any DIYer’s toolkit.

Final Thoughts

The Universal Surface Grinding Dust Shroud by Milwaukee offers a solid solution for dust collection during grinding and sanding tasks. Its quick and easy installation, effective dust containment, and compatibility with various grinders make it a valuable tool for any DIY enthusiast or professional.

However, the need for additional adapters for certain vacuums and the durability of the clear front clip are areas that could use improvement. If Milwaukee could address these issues, this shroud would be nearly perfect.

Recommendation

I would recommend the Milwaukee Universal Surface Grinding Dust Shroud, especially if you frequently work with concrete or wood and are looking to minimize dust. The benefits of cleaner air and easier cleanup far outweigh the minor inconveniences. Just be prepared to invest in additional adapters if your shop vac isn’t compatible out of the box. Overall, it’s a reliable and efficient tool that enhances the safety and cleanliness of your workspace.
