Why these connectors earned a spot on my bench

I reach for spring clamp connectors whenever I need a clean, repeatable splice without dragging out a soldering iron. The Tnisesm push‑wire connectors have now lived in my shop for a few months, handling everything from under‑cabinet lighting to 12 V hobby projects and small appliance repairs. They’re the two‑port, inline style: you press the top, insert a stripped conductor, and the internal spring clamps it. Simple in concept, and in practice, they mostly deliver.

Design and build

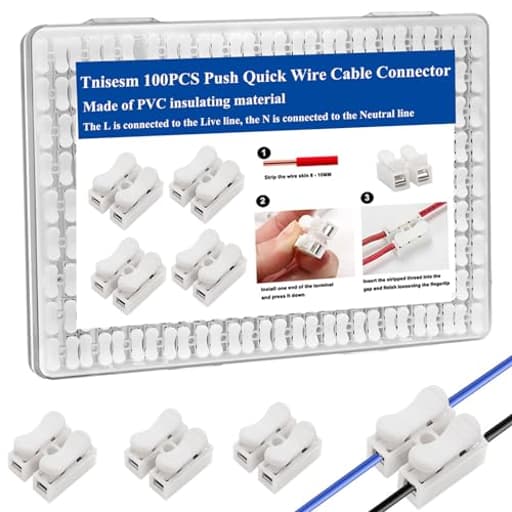

Each connector is a compact white PVC housing with a steel spring inside. The spec sheet calls out 0.5–2.5 mm² (22–14 AWG) conductors, 250 V, 10 A, and a broad operating range from −40°C to 150°C. In hand, they feel sturdy enough for bench and light field work; the plastic doesn’t deform under finger pressure and the spring has a decisive, positive snap when you press it.

A few details stood out:

• The housing is opaque white. That looks tidy in a finished project, but it also means you can’t visually confirm insertion depth like you can with translucent lever‑style blocks. Mark your strip length and perform a tug test.
• The internal spring steel has good bite on copper. With solid 18–14 AWG, it locks down firmly. With fine‑strand 22 AWG, it holds as long as your strip length is right; ferrules make it even more reliable.
• These interlock side‑by‑side with a simple slide‑together feature. It’s handy for bundling channels, though the fit is not especially tight. More on that later.

Overall, the components reflect the price point: functional and consistent, without premium frills.

Installation and everyday use

Using these is about as straightforward as it gets:

1. Strip 8–10 mm of insulation. I had the best results around 9 mm; shorter and you risk a weak clamp, longer and bare copper can be exposed.
2. Press the top to open the spring, insert the conductor fully, release, then give a firm tug to verify retention.
3. Repeat on the opposite side to complete the splice.

With solid wire, it’s almost impossible to mess up. With fine‑strand wire (common in low‑voltage LED, automotive, and RC work), take your time. Twist the strands tightly, or better yet, crimp ferrules. The clamp will grab bare stranded just fine, but ferrules improve repeatability and make disassembly cleaner.

These are marketed as reusable; you can press the top to release and pull the wire back out. In my testing, they tolerated several cycles without obvious degradation. That said, like all spring‑clamp designs, repeated insert/remove cycles will eventually soften the bite. If I know a joint will be revised often, I still prefer lever‑nut blocks.

Performance and reliability

I tested a handful of splices under typical loads:

• Low‑voltage LED strips on 12 V at 2–3 A: cool to the touch over multi‑hour runs.
• 120 VAC lighting circuits at around 1–2 A: no issues, no perceptible warming.
• A bench supply at 5 A continuous for two hours: the connector body rose slightly above ambient; nothing alarming and no discoloration.

Retention is excellent on solid 18–14 AWG and good on stranded 20–22 AWG with proper strip length. Pull tests with stranded 22 AWG were more sensitive to technique: too short a strip and you can dislodge it with a firm yank. Once I standardized on ~9 mm and added ferrules for very fine strand, the connections were repeatable.

Vibration resistance is decent. I mounted a set inside a small enclosure on a quadcopter test rig. After a few flights, nothing had backed out, though I wouldn’t use them in an engine bay or anywhere subject to severe heat, oil, or constant shock. For automotive cabin wiring and hobby drones, they’re fine; for harsh environments, I’d switch to crimped butt splices and heat‑shrink.

The interlocking feature lets you build small connector banks. It works, but the lateral fit isn’t particularly tight. If I need a block to stay aligned in a junction box, I add a strip of double‑sided tape or a dab of hot glue. Heat‑shrink tubing around a pair also keeps things neat and strain‑relieved.

Where they shine

• Fast, tidy splices for LED lighting, smart switches, and small appliance repairs
• Temporary or semi‑permanent connections on the bench and in prototyping
• Low‑to‑moderate current DC work in the 1–8 A range
• Projects where you want to avoid bulky wire nuts and keep pairs organized

The speed gain over twisting and taping—or even over traditional butt connectors—is real. For multi‑conductor lighting runs, being able to deal with each conductor individually reduces errors and makes rework painless.

Limitations and caveats

A few practical constraints to keep in mind:

• Current rating: 10 A max. That’s plenty for LED and logic‑level circuits, marginal for high‑draw motors or heaters. I treat 8 A as my comfort ceiling here.
• Wire size: They stop at 14 AWG. If your project uses 12 AWG branch circuits, these won’t fit.
• Opaque housing: You can’t see how far the conductor is inserted. Use consistent strip lengths and always tug‑test.
• Interlock looseness: The slide‑together feature is convenient but not mechanically robust. Secure multi‑pole bundles with tape, adhesive, or a mounting channel.
• Environmental exposure: The housing isn’t sealed. For outdoor or wet locations, use gel‑filled or heat‑shrink‑sealed connectors instead.
• Certification and code: If you’re doing in‑wall, permanent mains work, check the required listings in your jurisdiction. For permitted, listed connectors in junction boxes, I generally prefer brand‑name lever nuts with clear markings.

None of these are deal‑breakers for bench, hobby, or low‑voltage installs, but they’re worth noting so you choose the right connector for the job.

Tips for best results

• Standardize your strip length. I use 9 mm and mark my stripper for faster, consistent prep.
• For fine‑strand wire, crimp ferrules. They insert cleanly, improve retention, and make rework simpler.
• Perform a pull test on every conductor after insertion.
• Label pairs or use color‑coded heat‑shrink to keep polarity straight, especially since the housings are all white.
• If building a rail of connectors, secure them—don’t rely on the friction interlock alone.
• Avoid mixing copper and aluminum conductors in a single connector.
• Keep loads under the rating and give yourself margin; if a connector feels warm to the touch under steady load, reconsider the design.

Value and alternatives

In a large pack, the per‑piece cost is low, which encourages good habits: I don’t hesitate to cut one out if a splice gets messy and start fresh. Against lever‑style connectors, these are smaller and cheaper, but less convenient if you rewire frequently. Against solder and heat‑shrink, they’re dramatically faster and kinder to components in tight spaces, though they’re not as vibration‑proof as a properly crimped and sealed splice.

The sweet spot for these is “fast, neat, and good enough” connections that stay within 22–14 AWG and 10 A: lighting, sensors, low‑voltage controls, and small DC loads.

The bottom line

The Tnisesm push‑wire connectors do exactly what I want most days: they make clean, reliable splices quickly, with minimal fuss. They hold solid and stranded copper well when installed properly, they handle typical low‑voltage and light mains loads without getting warm, and they keep wiring tidier than wire nuts or tape. The weak points—loose interlocking, opaque bodies, and modest current rating—are real but manageable with a few best practices.

Recommendation: I recommend these for hobbyists, DIYers, and technicians who need fast, tidy splices in the 22–14 AWG, sub‑10 A range—especially for lighting, low‑voltage DC, and prototyping. If you’re doing permanent in‑wall work that requires specific listings, pushing higher currents, or wiring in high‑vibration or wet environments, choose a listed lever‑style connector or sealed crimp instead. For everything else, keeping a box of these on hand is a time‑saver that pays for itself quickly.
