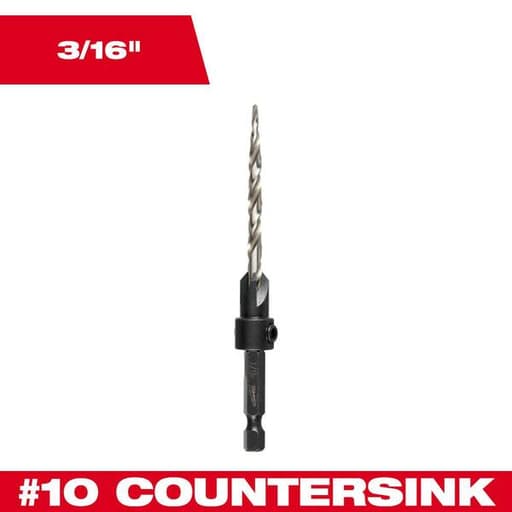

Milwaukee #10 Countersink Drill Bit

Using the Milwaukee #10 Countersink Drill Bit has been quite an experience, blending both efficiency and occasional frustration. This tool is designed for pre-drilling and countersinking applications, which is a significant time-saver for woodworking projects. The concept of combining these two tasks into one seamless operation is brilliant, and Milwaukee has done a commendable job in implementing it.

One of the standout features of this bit is its tapered design. The drill bit is not uniformly thick but narrows towards the tip, mimicking the profile of a wood screw. This tapering ensures that the screw can grip the wood securely along its entire length, which is crucial for achieving a strong hold. The countersink portion of the bit works flawlessly to create a perfect-sized hole for the screw head, allowing it to sit flush with the wood surface. This is essential for both aesthetic reasons and to avoid any potential snagging or damage to the screw head.

Adjustability is another strong suit of this Milwaukee bit. The countersink depth can be fine-tuned by sliding the countersink part along the drill bit and securing it with two hex set screws. This feature allows for precise depth control, making it easier to achieve consistent results across multiple holes. However, it's worth noting that the adjustment process requires a 1/8” Allen wrench, which is not included with the tool. This omission is a bit irksome, as most countersink bits come with the necessary Allen wrench for adjustments.

The 1/4" quick change hex shank is a thoughtful addition, making it easy to swap out the bit without fiddling with the drill chuck. This feature is particularly useful when you need to switch between drilling and driving screws frequently. The hex shank also reduces the risk of the bit slipping in the chuck, which is a common issue with round shank bits. However, I did encounter some durability issues with the hex shank. On a few occasions, the hex shank broke loose from the bit, rendering it unusable. This seems to be a weak point in the design that could benefit from some reinforcement.

In terms of performance, the Milwaukee #10 Countersink Drill Bit excels in wood applications. It cuts clean, precise holes and creates a professional finish that is hard to beat. The bit is incredibly sharp, allowing it to drill through wood effortlessly. However, it's not as effective in other materials like plastic. When used on Polywood, for instance, the bit tends to get clogged and gummy, making it difficult to achieve clean cuts. This limitation means that while the bit is excellent for woodworking, it's not as versatile for other materials.

Durability is another mixed bag. On one hand, the bit performs exceptionally well for a considerable period, maintaining its sharpness and cutting efficiency. On the other hand, there have been instances where the bit broke after just a few uses. This inconsistency in durability is a concern, especially for those who rely on their tools for professional work. The bit's tendency to break or warp under heavy use is something that Milwaukee needs to address to make this tool more reliable.

Despite these issues, the Milwaukee #10 Countersink Drill Bit has several redeeming qualities. The laser-etched size markings on the shank are a nice touch, making it easy to identify the bit size quickly. This is particularly useful if you have multiple bits and need to find the right one in a hurry. The overall length of the bit, about 4-1/2 inches, is also well-suited for most drilling tasks, providing a good balance between reach and control.

The bit's design also takes into account the need for quick and easy adjustments. The flat machined on the bit allows for secure adjustment of the countersink without damaging the cutting edges. This feature ensures that the bit remains in good condition even after multiple adjustments, which is a significant advantage over other bits that may suffer from wear and tear during the adjustment process.

In conclusion, the Milwaukee #10 Countersink Drill Bit is a valuable addition to any woodworker's toolkit. Its ability to combine pre-drilling and countersinking into one operation saves time and effort, making it a highly efficient tool. The tapered design and adjustable depth control further enhance its functionality, allowing for precise and consistent results. However, the bit's durability issues and the lack of an included Allen wrench are notable drawbacks that Milwaukee should address.

Would I recommend this tool? Yes, but with reservations. If you're primarily working with wood and need a reliable countersink bit that delivers clean, professional results, this Milwaukee bit is an excellent choice. However, if you require a more versatile bit that can handle various materials or if you need a tool with consistent durability, you might want to explore other options. Overall, the Milwaukee #10 Countersink Drill Bit is a solid performer with room for improvement, making it a worthwhile investment for specific applications.
