DeWalt 20V MAX Tool Connect Green Tough Rotary Laser Kit

I put the DeWalt rotary laser to work on a run of exterior footing layout, some slab control elevations, and a couple of drop ceiling grids to see if it could replace the two separate lasers I usually carry. Over a few weeks it proved accurate, tough, and straightforward to use in the field. It’s not perfect—more on that later—but it’s clearly built for jobsite realities, not just spec sheets.

Setup, build, and first use

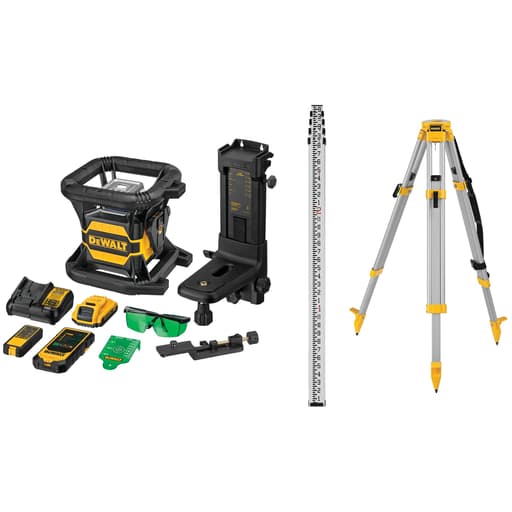

The kit lands with everything you need to get on a tripod and shooting: the laser, grade rod detector and clamp, target card, enhancement glasses, tripod adapter, mount, a 20V MAX battery and charger, plus a sturdy case and tripod. The case is big and the whole kit is heavy at around 44 pounds, but the payoff is protection. IP67 and a 1‑meter drop rating aren’t just stickers here. Mine got rained on, dragged through muddy gravel, and survived a knock off a tailgate without losing calibration.

Setup is quick. Pop in a charged 20V MAX battery, level the tripod, set the laser, and let it self-level. The self-leveling engages fast, and the unit tells you immediately if you’re out of range. The control panel is simple enough that I didn’t need to memorize a manual: power, rotation/scan selection, slope activation, and direction controls are all clearly labeled.

Two things stood out right away:
- The green beam is easier to see indoors and at dusk than red-beam rotary units.
- The included detector is a must for bright sunlight or long runs, and it pairs quickly.

Accuracy and visibility

DeWalt rates the laser at ±1/16 inch at 100 feet. My checks lined up with that. I ran a classic 180-degree test at 100 feet: mark height at the detector, rotate the unit 180 degrees, and mark again. The variance stayed within a sixty-fourth. Over longer runs (300–400 feet with the detector), I didn’t see drift that would matter for formwork, soffits, or long fence lines.

The beam itself is bright for a rotary, but like all rotary lasers, you’ll rely on the detector for outdoor work. The enhancement glasses help indoors for aligning to marks during scan mode. The plumb dots up and down are useful for transferring points between floors and for centering over layout points—handy when you need exact control over the instrument’s position.

Actionable tip: if you’re working near 100 feet and you need absolute confidence in flatness or elevation transfer, do the 180-degree check before you start placing marks. It takes two minutes and can save rework.

Range and the detector

With the detector, the working range is up to about 2,000 feet. In practical terms, I used it reliably at the scale of an urban lot and on a long driveway grade without signal dropouts. The detector’s screen and audio feedback are responsive, and the clamp holds solidly to a staff. There’s enough sensitivity to walk quickly and still land on grade, but I liked to slow down near the beep for final marks.

One note on the detector: keep spare batteries or a charging plan in your kit. Your day’s work ends when the detector dies, not the laser.

Slope and scan modes

Dual-axis slope mode is where this laser earns its keep on site. For drainage and grade checks, I could dial in a slope on one axis for driveway fall and also tweak the perpendicular axis for cross slope. The interface is straightforward: activate slope, then nudge up or down with arrow keys. Remember that enabling slope disables self-leveling; I recommend setting slope intentionally and then locking the site so no one bumps the tripod.

Scan modes at 15°, 45°, and 90° narrow the beam to a sector, which is great when you only need a segment visible—think laying out a run of cabinets or aligning a section of wall track without bathing the whole site in a rotating line. I found 15° most useful indoors for precise alignments.

Connectivity: helpful, not essential

Bluetooth integration with the Tool Connect app is basic but useful. Pairing was easy, and the app provided bump/fall alerts and status notifications. On a busy site, that’s a nice insurance policy—if someone bumps the tripod, you’ll know before you keep marking bad heights. I also liked having “last seen” location in the app, which helped one morning when the case wandered to the wrong floor.

Range for Bluetooth is typical—roughly a jobsite bay or two. Don’t expect to control the laser remotely or replace your detector workflow with the app. Think of it as a light layer of accountability and tracking.

Power and workflow

Running on DeWalt’s 20V MAX platform is convenient if you’re already in the ecosystem. The included battery and charger get you started; I swapped in a higher-capacity pack for long days. Runtime hasn’t been an issue for me on typical layout days, but if you’re running at high rotation speeds with the detector buzzing all day, bring a spare battery. The tool sips power compared to saws or drills, but it’s still a cordless device.

I would have liked a second battery in the kit, since this is intended for all-day layout. If you rely on it daily, plan your charging schedule the same way you do for your laser measure or total station accessories.

Durability and weather

IP67 means dust-tight and rated for temporary immersion up to 1 meter. I obviously didn’t dunk it in a pond, but I did run it through steady rain and messy concrete dust, then wiped it down and packed it up. No hiccups, no fogged windows, and no calibration drift. The 1-meter drop protection proved real when a coworker nudged the tripod and the head clipped a scaffold deck; we re-checked accuracy and kept moving.

The case is bulky but protects the optics and chassis. If you haul gear up stairs or ladders, the weight and size are worth factoring into your setup plan.

Controls and user experience

The controls are tactile with positive feedback. Button layout is logical, and indicator lights are readable in daylight. Rotational speed selection is quick, and scan adjustments are predictable. The tripod adapter and mount are solid; there’s no wobble once tightened.

Where the user experience stumbles is documentation. The included instructions lean heavily on pictograms and don’t explain some features—like practical use of slope mode—particularly well. If you’re moving up from line lasers or an older rotary model, you’ll figure it out, but I would prefer clearer written guidance, especially for newcomers.

Safety

This is a Class 3 green laser. Eye exposure is no joke. I keep enhancement glasses for visibility indoors, but I also make sure no one stares into the beam path during setup. Standard jobsite awareness applies: warn the crew when you’re live.

What could be better

• Documentation: The manual could use plain-language explanations and illustrated examples for slope, scan, and detector best practices.
• Kit completeness: One battery is workable; two would be better for all-day crews. Also, a small quick-start card in the case would speed training for new users.
• App scope: Tool Connect is useful for alerts and tracking, but I’d like optional remote control for rotation/scan from the phone when I’m working solo.

None of these are deal-breakers, but they’re the gaps I noticed after a few weeks of use.

Who it’s for

• Concrete, grading, and sitework crews who need long-range elevation control.
• Commercial TI carpenters laying out long runs of track and ceiling grid.
• Builders who need a single, durable rotary laser that can handle interior and exterior work without babying it.

If your work lives mostly inside small rooms or you rarely exceed 30–40 feet, a simpler line laser may be more cost-effective. But once your lines stretch and your environments get harsher, this unit earns its place.

Recommendation

I recommend the DeWalt rotary laser for pros who need dependable accuracy, real jobsite durability, and the flexibility of dual-axis slope in one package. It holds calibration, the green beam and plumb dots are genuinely helpful, the detector and scan modes cover interior and exterior tasks, and the IP67/1‑meter drop protection removes a lot of worry from daily use. The app integration is a nice bonus for accountability, not a workflow changer. I’d like a better manual and a slightly more generous kit, but the core performance is strong enough that I’d choose it again for layout-heavy work.
